#include <sipaccount.h>

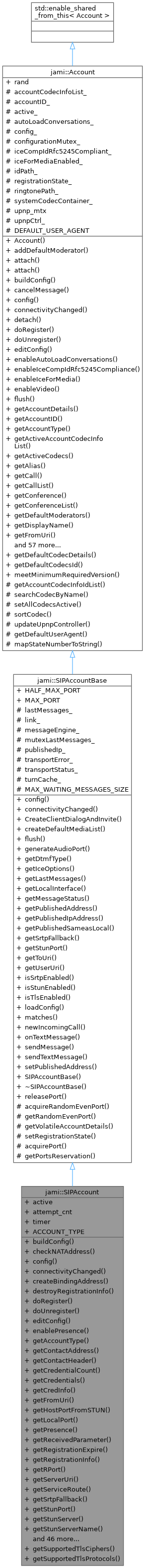

Inheritance diagram for jami::SIPAccount:

Collaboration diagram for jami::SIPAccount:

Public Member Functions
std::unique_ptr< AccountConfig >	buildConfig () const override

bool	checkNATAddress (pjsip_regc_cbparam param, pj_pool_t pool)
	Update NAT address, Via and Contact header from the REGISTER response.

const SipAccountConfig &	config () const

void	connectivityChanged () override
	Inform the account that the network status has changed.

dhtnet::IpAddr	createBindingAddress ()
	Create the Ip address that the transport uses.

void	destroyRegistrationInfo ()

void	doRegister () override
	Initialize the SIP voip link with the account parameters and send registration.

void	doUnregister (bool forceShutdownConnections=false) override
	Send unregistration.

void	editConfig (std::function< void(SipAccountConfig &conf)> &&edit)

void	enablePresence (const bool &enable)
	Activate the module.

std::string_view	getAccountType () const override

dhtnet::IpAddr	getContactAddress () const
	Get the contact address.

std::string	getContactHeader () const
	Get the contact header.

unsigned	getCredentialCount () const
	Get the number of credentials defined for this account.

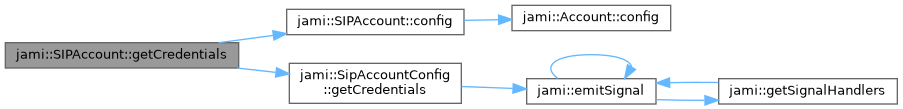

std::vector< std::map< std::string, std::string > >	getCredentials () const

const pjsip_cred_info *	getCredInfo () const

std::string	getFromUri () const override

pjsip_host_port	getHostPortFromSTUN (pj_pool_t *pool)

uint16_t	getLocalPort () const
	Get the port on which the transport/listener should use, or is actually using.

SIPPresence *	getPresence () const
	Presence management.

const std::string &	getReceivedParameter () const

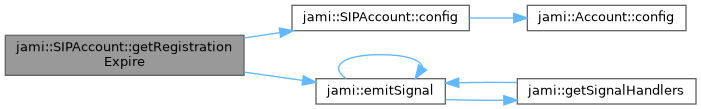

unsigned	getRegistrationExpire () const
	A client sendings a REGISTER request MAY suggest an expiration interval that indicates how long the client would like the registration to be valid.

pjsip_regc *	getRegistrationInfo ()
	Get the registration structure that is used for PJSIP in the registration process.

int	getRPort () const

std::string	getServerUri () const
	In the current version, "srv" uri is obtained in the preformatted way: hostname:port.

std::string	getServiceRoute () const

virtual bool	getSrtpFallback () const override

pj_uint16_t	getStunPort () const override

std::string	getStunServer () const

pj_str_t	getStunServerName () const

pj_uint16_t	getTlsListenerPort () const
	Get the local port for TLS listener.

pjsip_tls_setting *	getTlsSetting ()

std::map< std::string, std::string >	getTlsSettings () const
	Return the TLS settings, mainly used to return security information to a client application.

std::string	getToUri (const std::string &username) const override
	This method adds the correct scheme, hostname and append the ;transport= parameter at the end of the uri, in accordance with RFC3261.

virtual std::shared_ptr< SipTransport >	getTransport ()

pjsip_tpselector	getTransportSelector ()
	Shortcut for SipTransport::getTransportSelector(account.getTransport()).

pjsip_transport_type_e	getTransportType () const

std::string	getUserUri () const override

pjsip_host_port *	getViaAddr ()

virtual std::map< std::string, std::string >	getVolatileAccountDetails () const override
	Retrieve volatile details such as recent registration errors.

bool	hasCredentials () const

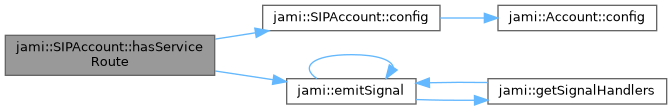

bool	hasServiceRoute () const

bool	isIP2IP () const override
	Returns true if this is the IP2IP account.

bool	isRegistered () const
	Registration flag.

bool	isRegistrationRefreshEnabled () const

bool	isSrtpEnabled () const override

bool	isStunEnabled () const override

virtual bool	isTlsEnabled () const override
	Determine if TLS is enabled for this account.

void	loadConfig () override
	Actually useless, since config loading is done in init()

MatchRank	matches (std::string_view username, std::string_view hostname) const override

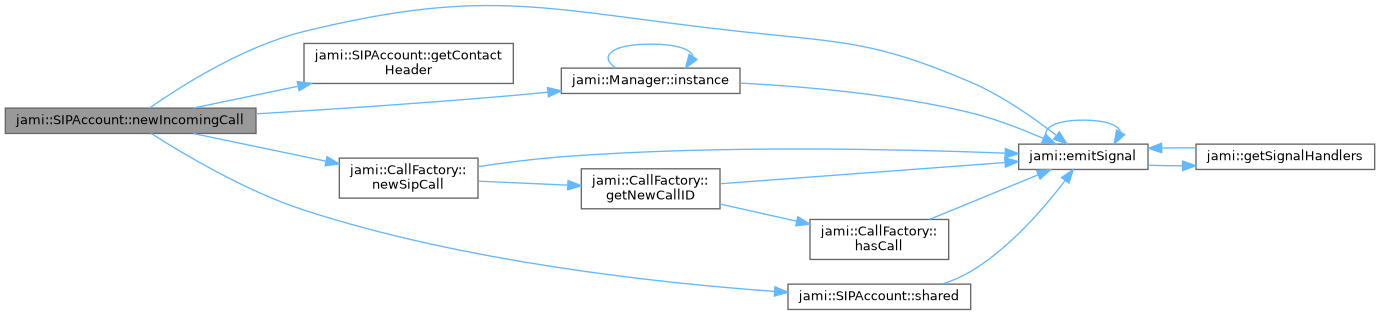

std::shared_ptr< SIPCall >	newIncomingCall (const std::string &from, const std::vector< libjami::MediaMap > &mediaList, const std::shared_ptr< SipTransport > &sipTr={}) override
	Create incoming SIPCall.

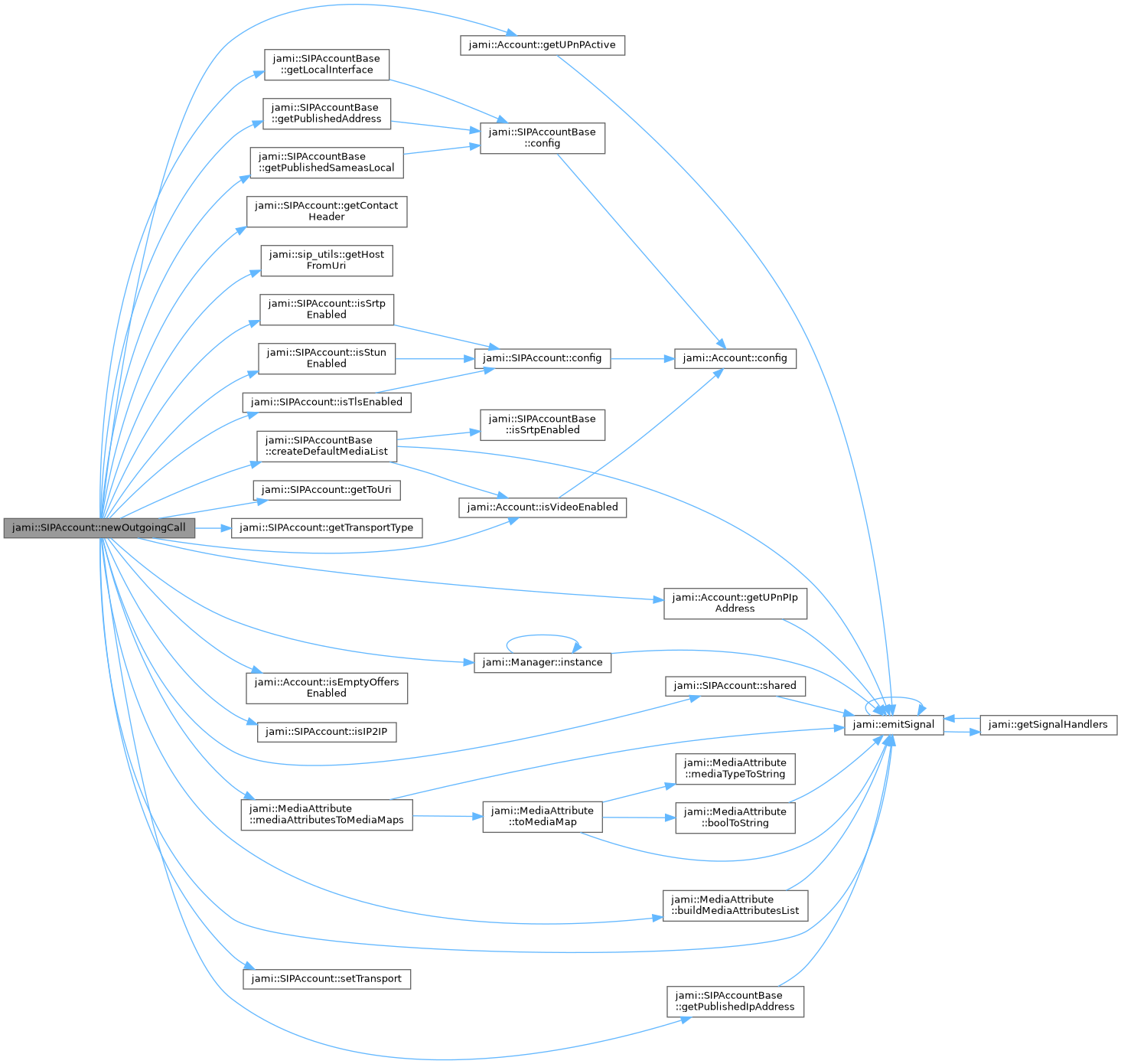

std::shared_ptr< Call >	newOutgoingCall (std::string_view toUrl, const std::vector< libjami::MediaMap > &mediaList) override
	Create outgoing SIPCall.

void	onRegister (pjsip_regc_cbparam *param)

void	pushNotificationReceived (const std::string &from, const std::map< std::string, std::string > &data)
	To be called by clients with relevant data when a push notification is received.

void	resetAutoRegistration ()

virtual void	sendMessage (const std::string &to, const std::string &deviceId, const std::map< std::string, std::string > &payloads, uint64_t id, bool retryOnTimeout=true, bool onlyConnected=false) override

void	sendRegister ()
	Build and send SIP registration request.

void	sendUnregister ()
	Build and send SIP unregistration request.

void	setActiveCodecs (const std::vector< unsigned > &list) override
	Update both the codec order structure and the codec string used for SDP offer and configuration respectively.

void	setLocalPort (uint16_t port)

bool	setPushNotificationConfig (const std::map< std::string, std::string > &data) override

bool	setPushNotificationToken (const std::string &pushDeviceToken="") override

void	setReceivedParameter (const std::string &received)

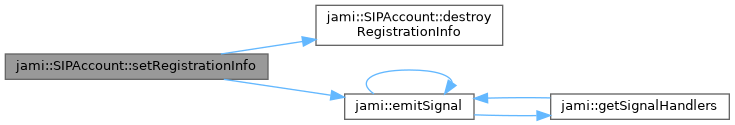

void	setRegistrationInfo (pjsip_regc *regc)
	Set the registration structure that is used for PJSIP in the registration process; @pram A pointer to the new registration structure.

virtual void	setRegistrationState (RegistrationState state, int code=0, const std::string &detail_str={}) override
	Set the registration state of the specified link.

void	setRPort (int rPort)

void	setTransport (const std::shared_ptr< SipTransport > &=nullptr)

std::shared_ptr< SIPAccount >	shared ()

std::shared_ptr< SIPAccount const >	shared () const

	SIPAccount (const std::string &accountID, bool presenceEnabled)
	Constructor.

void	supportPresence (int function, bool enable)
	Activate the publish/subscribe.

void	updateDialogViaSentBy (pjsip_dialog *dlg)

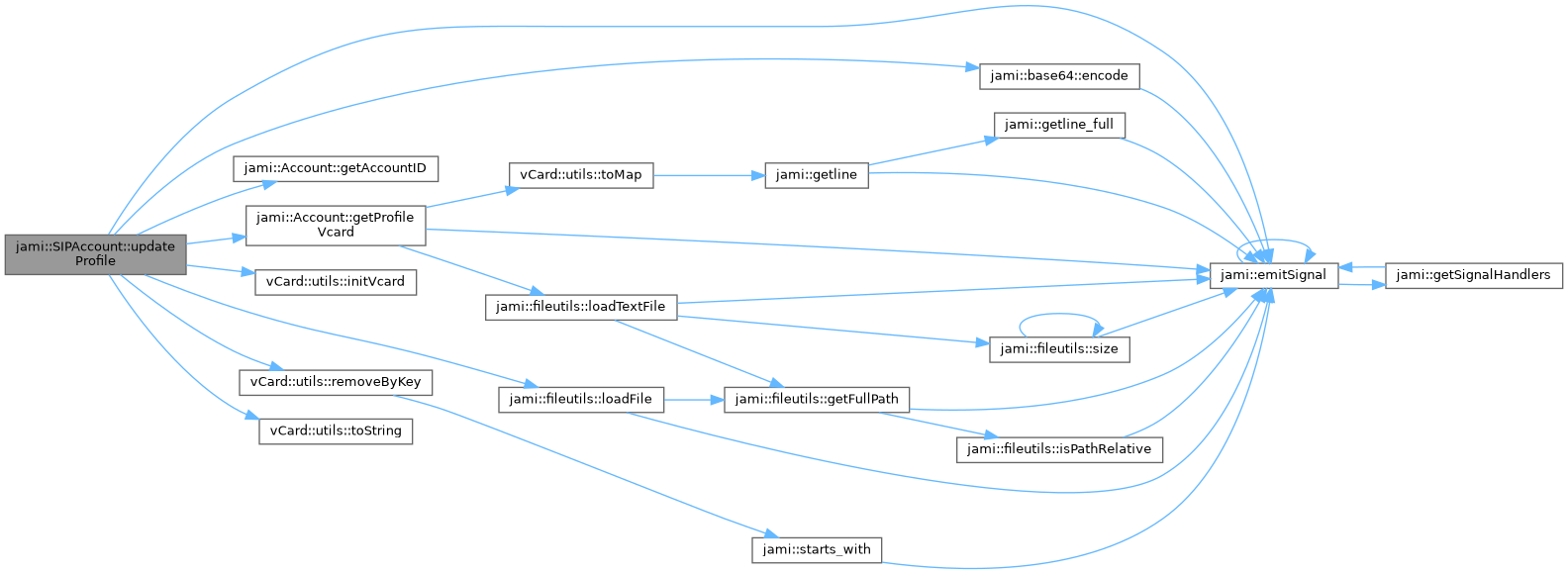

void	updateProfile (const std::string &displayName, const std::string &avatar, const std::string &fileType, int32_t flag) override
	updates SIP account profile

std::weak_ptr< SIPAccount >	weak ()

std::weak_ptr< SIPAccount const >	weak () const

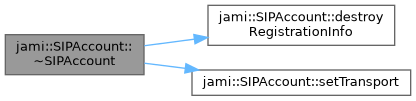

	~SIPAccount () noexcept

Public Member Functions inherited from jami::SIPAccountBase
const SipAccountBaseConfig &	config () const

void	connectivityChanged () override
	Inform the account that the network status has changed.

bool	CreateClientDialogAndInvite (const pj_str_t from, const pj_str_t contact, const pj_str_t to, const pj_str_t target, const pjmedia_sdp_session local_sdp, pjsip_dialog dlg, pjsip_inv_session *inv)
	Create UAC attached dialog and invite session.

std::vector< MediaAttribute >	createDefaultMediaList (bool addVideo, bool onHold=false)

virtual void	flush () override
	This method is called to request removal of possible account traces on the system, like internal account setup files.

uint16_t	generateAudioPort () const
	Socket port generators for media Note: given ports are application wide, a port is unable to be given again by any account instances until it's released by the static method releasePort().

virtual std::string	getDtmfType () const

virtual dhtnet::IceTransportOptions	getIceOptions () const

std::vector< libjami::Message >	getLastMessages (const uint64_t &base_timestamp) override

const std::string &	getLocalInterface () const
	Get the local interface name on which this account is bound.

im::MessageStatus	getMessageStatus (uint64_t id) const override
	Return the status corresponding to the token.

std::string	getPublishedAddress () const
	Get the public IP address set by the user for this account.

virtual dhtnet::IpAddr	getPublishedIpAddress (uint16_t family=PF_UNSPEC) const

bool	getPublishedSameasLocal () const
	Get a flag which determine the usage in sip headers of either the local IP address and port (localAddress and localPort) or to an address set manually (publishedAddress and publishedPort).

void	loadConfig () override
	Load the settings in this account.

virtual void	onTextMessage (const std::string &id, const std::string &from, const std::shared_ptr< dht::crypto::Certificate > &peerCert, const std::map< std::string, std::string > &payloads)

virtual uint64_t	sendTextMessage (const std::string &to, const std::string &deviceId, const std::map< std::string, std::string > &payloads, uint64_t refreshToken=0, bool onlyConnected=false) override
	If supported, send a text message from this account.

void	setPublishedAddress (const dhtnet::IpAddr &ip_addr)

	SIPAccountBase (const std::string &accountID)
	Constructor.

virtual	~SIPAccountBase () noexcept

Public Member Functions inherited from jami::Account
	Account (const std::string &accountID)

void	addDefaultModerator (const std::string &peerURI)

void	attach (const std::shared_ptr< Call > &call)

void	attach (const std::shared_ptr< Conference > &conf)

virtual bool	cancelMessage (uint64_t)

const AccountConfig &	config () const

bool	detach (const std::shared_ptr< Call > &call)

void	editConfig (std::function< void(AccountConfig &config)> &&edit)

void	enableAutoLoadConversations (bool enable)

void	enableIceCompIdRfc5245Compliance (bool enable)

void	enableIceForMedia (bool enable)

void	enableVideo (bool enable)

std::map< std::string, std::string >	getAccountDetails () const

const std::string &	getAccountID () const
	Get the account ID.

std::vector< std::shared_ptr< SystemCodecInfo > >	getActiveAccountCodecInfoList (MediaType mediaType) const

std::vector< unsigned >	getActiveCodecs (MediaType mediaType=MEDIA_ALL) const

const std::string &	getAlias () const

std::shared_ptr< Call >	getCall (const std::string &callId) const

std::vector< std::string >	getCallList () const

std::shared_ptr< Conference >	getConference (const std::string &confId) const

std::vector< std::string >	getConferenceList () const

std::set< std::string >	getDefaultModerators () const

std::string	getDisplayName () const

const std::string &	getHostname () const

std::string	getMailBox () const

virtual std::map< std::string, std::string >	getNearbyPeers () const

const std::filesystem::path &	getPath () const

std::map< std::string, std::string >	getProfileVcard () const

RegistrationState	getRegistrationState () const

bool	getRingtoneEnabled () const

std::filesystem::path	getRingtonePath () const

bool	getUPnPActive () const
	returns whether or not UPnP is enabled and active ie: if it is able to make port mappings

dhtnet::IpAddr	getUPnPIpAddress () const
	Get the UPnP IP (external router) address.

const std::string &	getUserAgentName ()
	Get the user-agent.

const std::string &	getUsername () const

virtual bool	handleMessage (const std::shared_ptr< dht::crypto::Certificate > &, const std::string &, const std::pair< std::string, std::string > &)

void	hangupCalls ()
	Free all ressources related to this account.

bool	hasActiveCodec (MediaType mediaType) const

bool	isActive () const noexcept
	Tell if the account is activated (can currently be used).

bool	isAllModerators () const

bool	isAutoAnswerEnabled () const

bool	isComposingEnabled () const

bool	isDenySecondCallEnabled () const

bool	isEmptyOffersEnabled () const

bool	isEnabled () const
	Tell if the account is enable or not.

bool	isIceCompIdRfc5245Compliant () const

bool	isIceForMediaEnabled () const

bool	isLocalModeratorsEnabled () const

bool	isReadReceiptEnabled () const

bool	isRendezVous () const

bool	isUsable () const

bool	isVideoEnabled () const

void	loadDefaultCodecs ()
	Helper function used to load the default codec order from the codec factory.

bool	removeConference (const std::string &confId)

void	removeDefaultModerator (const std::string &peerURI)

virtual void	saveConfig () const

std::shared_ptr< SystemCodecInfo >	searchCodecById (unsigned codecId, MediaType mediaType)

std::shared_ptr< SystemCodecInfo >	searchCodecByPayload (unsigned payload, MediaType mediaType)

void	setAccountDetails (const std::map< std::string, std::string > &details)

void	setActive (bool active) noexcept

void	setCodecActive (unsigned codecId)

void	setCodecInactive (unsigned codecId)

void	setConfig (std::unique_ptr< AccountConfig > &&config)

void	setEnabled (bool enable)

virtual void	setIsComposing (const std::string &, bool)

virtual bool	setMessageDisplayed (const std::string &, const std::string &, int)

virtual bool	setPushNotificationTopic (const std::string &topic="")

virtual	~Account ()
	Virtual destructor.

Static Public Member Functions
static const std::vector< std::string > &	getSupportedTlsCiphers ()

static const std::vector< std::string > &	getSupportedTlsProtocols ()

Static Public Member Functions inherited from jami::SIPAccountBase
static void	releasePort (uint16_t port) noexcept

Static Public Member Functions inherited from jami::Account
static std::map< std::string, std::string >	getDefaultCodecDetails (const unsigned &codecId)

static std::vector< unsigned >	getDefaultCodecsId ()

static bool	meetMinimumRequiredVersion (const std::vector< unsigned > &jamiVersion, const std::vector< unsigned > &minRequiredVersion)

Static Public Attributes
static constexpr auto	ACCOUNT_TYPE = ACCOUNT_TYPE_SIP

Static Public Attributes inherited from jami::SIPAccountBase
static constexpr unsigned	HALF_MAX_PORT {MAX_PORT / 2}

static constexpr unsigned	MAX_PORT {65536}

Additional Inherited Members
Public Attributes inherited from jami::Account
std::mt19937_64	rand
	Random generator engine Logical account state shall never rely on the state of the random generator.

Protected Member Functions inherited from jami::SIPAccountBase
uint16_t	acquireRandomEvenPort (const std::pair< uint16_t, uint16_t > &range) const

uint16_t	getRandomEvenPort (const std::pair< uint16_t, uint16_t > &range) const

Protected Member Functions inherited from jami::Account
std::vector< unsigned >	getAccountCodecInfoIdList (MediaType mediaType) const

std::shared_ptr< SystemCodecInfo >	searchCodecByName (const std::string &name, MediaType mediaType)
	private account codec searching functions

void	setAllCodecsActive (MediaType mediaType, bool active)

void	sortCodec ()

virtual void	updateUpnpController ()

Static Protected Member Functions inherited from jami::SIPAccountBase
static uint16_t	acquirePort (uint16_t port)

static std::array< bool, HALF_MAX_PORT > &	getPortsReservation () noexcept

Static Protected Member Functions inherited from jami::Account
static std::string	getDefaultUserAgent ()
	Build the user-agent string.

static std::string	mapStateNumberToString (RegistrationState state)

Protected Attributes inherited from jami::SIPAccountBase
std::deque< libjami::Message >	lastMessages_

SIPVoIPLink &	link_
	Voice over IP Link contains a listener thread and calls.

im::MessageEngine	messageEngine_

std::mutex	mutexLastMessages_
	The deamon can be launched without any client (or with a non ready client) Like call and file transfer, a client should be able to retrieve current messages.

dhtnet::IpAddr	publishedIp_ [2] {}
	Published IPv4/IPv6 addresses, used only if defined by the user in account configuration.

std::string	transportError_ {}

pj_status_t	transportStatus_ {PJSIP_SC_TRYING}

std::shared_ptr< dhtnet::TurnCache >	turnCache_

Protected Attributes inherited from jami::Account
std::vector< std::shared_ptr< SystemCodecInfo > >	accountCodecInfoList_
	Vector containing all account codecs (set of system codecs with custom parameters)

const std::string	accountID_
	Account ID are assign in constructor and shall not changed.

bool	active_ {true}
	Tells if the account is active now.

bool	autoLoadConversations_ {true}
	Auto load conversations when creatinf convModule()

std::unique_ptr< AccountConfig >	config_ {}

std::recursive_mutex	configurationMutex_ {}

bool	iceCompIdRfc5245Compliant_ {false}

bool	iceForMediaEnabled_ {true}

std::filesystem::path	idPath_ {}
	path to account

RegistrationState	registrationState_ {RegistrationState::UNLOADED}

std::filesystem::path	ringtonePath_
	Ringtone .au file used for this account.

std::shared_ptr< SystemCodecContainer >	systemCodecContainer_
	Vector containing all system codecs (with default parameters)

std::mutex	upnp_mtx {}
	UPnP IGD controller and the mutex to access it.

std::shared_ptr< dhtnet::upnp::Controller >	upnpCtrl_

Static Protected Attributes inherited from jami::SIPAccountBase
static constexpr size_t	MAX_WAITING_MESSAGES_SIZE = 1000

Static Protected Attributes inherited from jami::Account
static const std::string	DEFAULT_USER_AGENT = Account::getDefaultUserAgent()

Detailed Description

Definition at line 47 of file sipaccount.h.

Constructor & Destructor Documentation

◆ SIPAccount()

jami::SIPAccount::SIPAccount	(	const std::string &	accountID,
		bool	presenceEnabled
	)

Constructor.

Parameters

accountID The account identifier

Definition at line 125 of file sipaccount.cpp.

◆ ~SIPAccount()

jami::SIPAccount::~SIPAccount ( )

noexcept

Definition at line 135 of file sipaccount.cpp.

References destroyRegistrationInfo(), JAMI_ERR, and setTransport().

Here is the call graph for this function:

Member Function Documentation

◆ buildConfig()

std::unique_ptr< AccountConfig > jami::SIPAccount::buildConfig ( ) const

inlineoverridevirtual

Implements jami::Account.

Definition at line 82 of file sipaccount.h.

References jami::Account::getAccountID().

Here is the call graph for this function:

◆ checkNATAddress()

bool jami::SIPAccount::checkNATAddress	(	pjsip_regc_cbparam *	param,
		pj_pool_t *	pool
	)

Update NAT address, Via and Contact header from the REGISTER response.

Parameters

param	pjsip reg cbparam
pool

Returns: update status

Definition at line 1609 of file sipaccount.cpp.

References JAMI_DBG, JAMI_ERR, JAMI_LOG, and JAMI_WARN.

◆ config()

const SipAccountConfig & jami::SIPAccount::config ( ) const

inline

Definition at line 77 of file sipaccount.h.

References jami::Account::config().

Referenced by getCredentialCount(), getCredentials(), getLocalPort(), getRegistrationExpire(), getRPort(), getServiceRoute(), getSrtpFallback(), getStunServer(), getTlsListenerPort(), hasCredentials(), hasServiceRoute(), isRegistrationRefreshEnabled(), isSrtpEnabled(), isStunEnabled(), isTlsEnabled(), and setLocalPort().

Here is the call graph for this function:

◆ connectivityChanged()

void jami::SIPAccount::connectivityChanged ( )

overridevirtual

Inform the account that the network status has changed.

Reimplemented from jami::Account.

Definition at line 773 of file sipaccount.cpp.

◆ createBindingAddress()

dhtnet::IpAddr jami::SIPAccount::createBindingAddress ( )

Create the Ip address that the transport uses.

Returns: IpAddr created

Definition at line 2016 of file sipaccount.cpp.

◆ destroyRegistrationInfo()

void jami::SIPAccount::destroyRegistrationInfo ( )

Definition at line 1589 of file sipaccount.cpp.

Referenced by setRegistrationInfo(), and ~SIPAccount().

◆ doRegister()

void jami::SIPAccount::doRegister ( )

overridevirtual

Initialize the SIP voip link with the account parameters and send registration.

Implements jami::Account.

Definition at line 621 of file sipaccount.cpp.

References JAMI_DBG, JAMI_DEBUG, and JAMI_WARN.

◆ doUnregister()

void jami::SIPAccount::doUnregister ( bool forceShutdownConnections = false )

overridevirtual

Send unregistration.

Implements jami::Account.

Definition at line 753 of file sipaccount.cpp.

References JAMI_ERR.

◆ editConfig()

void jami::SIPAccount::editConfig ( std::function< void(SipAccountConfig &conf)> && edit )

inline

Definition at line 86 of file sipaccount.h.

References jami::Account::editConfig(), and jami::emitSignal().

Referenced by setLocalPort().

Here is the call graph for this function:

◆ enablePresence()

void jami::SIPAccount::enablePresence ( const bool & enable )

Activate the module.

Enable the presence module.

Parameters

function	Publish or subscribe to enable
enable	Flag

Definition at line 1523 of file sipaccount.cpp.

References JAMI_ERR, and JAMI_LOG.

◆ getAccountType()

std::string_view jami::SIPAccount::getAccountType ( ) const

inlineoverridevirtual

Implements jami::Account.

Definition at line 92 of file sipaccount.h.

References ACCOUNT_TYPE.

◆ getContactAddress()

dhtnet::IpAddr jami::SIPAccount::getContactAddress ( ) const

Get the contact address.

Returns: The current contact address

Definition at line 1277 of file sipaccount.cpp.

◆ getContactHeader()

std::string jami::SIPAccount::getContactHeader ( ) const

Get the contact header.

Returns: The current contact header

Definition at line 1284 of file sipaccount.cpp.

Referenced by newIncomingCall(), and newOutgoingCall().

◆ getCredentialCount()

unsigned jami::SIPAccount::getCredentialCount ( ) const

inline

Get the number of credentials defined for this account.

Parameters

none

Returns: int The number of credentials set for this account.

Definition at line 164 of file sipaccount.h.

References config(), and jami::SipAccountConfig::credentials.

Referenced by jami::PresSubClient::subscribe().

Here is the call graph for this function:

◆ getCredentials()

std::vector< std::map< std::string, std::string > > jami::SIPAccount::getCredentials ( ) const

inline

Definition at line 168 of file sipaccount.h.

References config(), and jami::SipAccountConfig::getCredentials().

Here is the call graph for this function:

◆ getCredInfo()

const pjsip_cred_info * jami::SIPAccount::getCredInfo ( ) const

inline

Definition at line 156 of file sipaccount.h.

Referenced by jami::PresSubClient::subscribe().

◆ getFromUri()

std::string jami::SIPAccount::getFromUri ( ) const

overridevirtual

Returns: pj_str_t "From" uri based on account information. From RFC3261: "The To header field first and foremost specifies the desired logical" recipient of the request, or the address-of-record of the user or resource that is the target of this request. [...] As such, it is very important that the From URI not contain IP addresses or the FQDN of the host on which the UA is running, since these are not logical names."

Implements jami::Account.

Definition at line 1190 of file sipaccount.cpp.

Referenced by jami::PresSubClient::PresSubClient(), jami::SIPPresence::reportPresSubClientNotification(), and jami::PresSubClient::subscribe().

◆ getHostPortFromSTUN()

pjsip_host_port jami::SIPAccount::getHostPortFromSTUN ( pj_pool_t * pool )

Definition at line 1424 of file sipaccount.cpp.

◆ getLocalPort()

uint16_t jami::SIPAccount::getLocalPort ( ) const

inline

Get the port on which the transport/listener should use, or is actually using.

Returns: pj_uint16 The port used for that account

Definition at line 223 of file sipaccount.h.

References config(), and jami::SipAccountConfig::localPort.

Here is the call graph for this function:

◆ getPresence()

SIPPresence * jami::SIPAccount::getPresence ( ) const

Presence management.

Definition at line 1514 of file sipaccount.cpp.

◆ getReceivedParameter()

const std::string & jami::SIPAccount::getReceivedParameter ( ) const

inline

Definition at line 324 of file sipaccount.h.

◆ getRegistrationExpire()

unsigned jami::SIPAccount::getRegistrationExpire ( ) const

inline

A client sendings a REGISTER request MAY suggest an expiration interval that indicates how long the client would like the registration to be valid.

Returns: the expiration value.

Definition at line 184 of file sipaccount.h.

References config(), jami::emitSignal(), and jami::SipAccountConfig::registrationExpire.

Here is the call graph for this function:

◆ getRegistrationInfo()

pjsip_regc * jami::SIPAccount::getRegistrationInfo ( )

inline

Get the registration structure that is used for PJSIP in the registration process.

Settings are loaded from configuration file.

Returns: pjsip_regc* A pointer to the registration structure

Definition at line 201 of file sipaccount.h.

Referenced by jami::PresSubClient::subscribe().

◆ getRPort()

int jami::SIPAccount::getRPort ( ) const

inline

Definition at line 328 of file sipaccount.h.

References config(), and jami::SipAccountConfig::localPort.

Here is the call graph for this function:

◆ getServerUri()

std::string jami::SIPAccount::getServerUri ( ) const

In the current version, "srv" uri is obtained in the preformatted way: hostname:port.

This method adds the correct scheme and append the ;transport= parameter at the end of the uri, in accordance with RFC3261.

Returns: pj_str_t "server" uri based on

Parameters

hostPort
hostPort	A string formatted as : "hostname:port"

Definition at line 1254 of file sipaccount.cpp.

◆ getServiceRoute()

std::string jami::SIPAccount::getServiceRoute ( ) const

inline

Definition at line 310 of file sipaccount.h.

References config(), and jami::SipAccountConfig::serviceRoute.

Referenced by jami::PresSubClient::subscribe().

Here is the call graph for this function:

◆ getSrtpFallback()

virtual bool jami::SIPAccount::getSrtpFallback ( ) const

inlineoverridevirtual

Implements jami::SIPAccountBase.

Definition at line 316 of file sipaccount.h.

References config(), and jami::SipAccountConfig::srtpFallback.

Here is the call graph for this function:

◆ getStunPort()

pj_uint16_t jami::SIPAccount::getStunPort ( ) const

inlineoverridevirtual

Returns: pj_uint8_t structure, filled from the configuration file, that can be used directly by PJSIP to initialize an alternate UDP transport.

Reimplemented from jami::SIPAccountBase.

Definition at line 253 of file sipaccount.h.

◆ getStunServer()

std::string jami::SIPAccount::getStunServer ( ) const

inline

Returns: pj_str_t , filled from the configuration file, that can be used directly by PJSIP to initialize an alternate UDP transport.

Definition at line 266 of file sipaccount.h.

References config(), and jami::SipAccountConfig::stunServer.

Here is the call graph for this function:

◆ getStunServerName()

pj_str_t jami::SIPAccount::getStunServerName ( ) const

inline

Definition at line 243 of file sipaccount.h.

◆ getSupportedTlsCiphers()

const std::vector< std::string > & jami::SIPAccount::getSupportedTlsCiphers ( )

static

Definition at line 1442 of file sipaccount.cpp.

References JAMI_ERR.

Referenced by libjami::getSupportedCiphers().

◆ getSupportedTlsProtocols()

const std::vector< std::string > & jami::SIPAccount::getSupportedTlsProtocols ( )

static

Definition at line 1466 of file sipaccount.cpp.

References jami::VALID_TLS_PROTOS.

Referenced by libjami::getSupportedTlsMethod().

◆ getTlsListenerPort()

pj_uint16_t jami::SIPAccount::getTlsListenerPort ( ) const

inline

Get the local port for TLS listener.

Returns: pj_uint16 The port used for that account

Definition at line 241 of file sipaccount.h.

References config(), and jami::SipAccountConfig::tlsListenerPort.

Here is the call graph for this function:

◆ getTlsSetting()

pjsip_tls_setting * jami::SIPAccount::getTlsSetting ( )

inline

Returns: pjsip_tls_setting structure, filled from the configuration file, that can be used directly by PJSIP to initialize TLS transport.

Definition at line 235 of file sipaccount.h.

◆ getTlsSettings()

std::map< std::string, std::string > jami::SIPAccount::getTlsSettings ( ) const

Return the TLS settings, mainly used to return security information to a client application.

◆ getToUri()

std::string jami::SIPAccount::getToUri ( const std::string & username ) const

overridevirtual

This method adds the correct scheme, hostname and append the ;transport= parameter at the end of the uri, in accordance with RFC3261.

It is expected that "port" is present in the internal hostname_.

Returns: pj_str_t "To" uri based on

Parameters

username
username	A string formatted as : "username"

Implements jami::SIPAccountBase.

Definition at line 1222 of file sipaccount.cpp.

Referenced by newOutgoingCall().

◆ getTransport()

virtual std::shared_ptr< SipTransport > jami::SIPAccount::getTransport ( )

inlinevirtual

Definition at line 346 of file sipaccount.h.

◆ getTransportSelector()

pjsip_tpselector jami::SIPAccount::getTransportSelector ( )

Shortcut for SipTransport::getTransportSelector(account.getTransport()).

Definition at line 388 of file sipaccount.cpp.

◆ getTransportType()

pjsip_transport_type_e jami::SIPAccount::getTransportType ( ) const

inline

Definition at line 348 of file sipaccount.h.

Referenced by newOutgoingCall().

◆ getUserUri()

std::string jami::SIPAccount::getUserUri ( ) const

overridevirtual

Implements jami::SIPAccountBase.

Definition at line 2010 of file sipaccount.cpp.

◆ getViaAddr()

pjsip_host_port * jami::SIPAccount::getViaAddr ( )

inline

Definition at line 326 of file sipaccount.h.

◆ getVolatileAccountDetails()

std::map< std::string, std::string > jami::SIPAccount::getVolatileAccountDetails ( ) const

overridevirtual

Retrieve volatile details such as recent registration errors.

Returns: std::map< std::string, std::string > The account volatile details

Reimplemented from jami::SIPAccountBase.

Definition at line 499 of file sipaccount.cpp.

References JAMI_WARN, libjami::Account::VolatileProperties::InstantMessaging::OFF_CALL, libjami::TlsTransport::TLS_CIPHER, libjami::TlsTransport::TLS_PEER_CA_, libjami::TlsTransport::TLS_PEER_CA_NUM, and libjami::TlsTransport::TLS_PEER_CERT.

◆ hasCredentials()

bool jami::SIPAccount::hasCredentials ( ) const

inline

Definition at line 166 of file sipaccount.h.

References config(), jami::SipAccountConfig::credentials, and jami::emitSignal().

Referenced by jami::PresSubClient::subscribe().

Here is the call graph for this function:

◆ hasServiceRoute()

bool jami::SIPAccount::hasServiceRoute ( ) const

inline

Definition at line 312 of file sipaccount.h.

References config(), jami::emitSignal(), and jami::SipAccountConfig::serviceRoute.

Referenced by jami::PresSubClient::subscribe().

Here is the call graph for this function:

◆ isIP2IP()

bool jami::SIPAccount::isIP2IP ( ) const

overridevirtual

Returns true if this is the IP2IP account.

Reimplemented from jami::Account.

Definition at line 1508 of file sipaccount.cpp.

Referenced by newOutgoingCall(), and jami::SIPPresence::sendPresence().

◆ isRegistered()

bool jami::SIPAccount::isRegistered ( ) const

inline

Registration flag.

Definition at line 193 of file sipaccount.h.

◆ isRegistrationRefreshEnabled()

bool jami::SIPAccount::isRegistrationRefreshEnabled ( ) const

inline

Definition at line 342 of file sipaccount.h.

References config(), and jami::SipAccountConfig::registrationRefreshEnabled.

Here is the call graph for this function:

◆ isSrtpEnabled()

bool jami::SIPAccount::isSrtpEnabled ( ) const

inlineoverridevirtual

Implements jami::SIPAccountBase.

Definition at line 416 of file sipaccount.h.

References config(), jami::NONE, and jami::SipAccountConfig::srtpKeyExchange.

Referenced by newOutgoingCall().

Here is the call graph for this function:

◆ isStunEnabled()

bool jami::SIPAccount::isStunEnabled ( ) const

inlineoverridevirtual

Returns: bool Tells if current transport for that account is set to OTHER.

Reimplemented from jami::SIPAccountBase.

Definition at line 259 of file sipaccount.h.

References config(), and jami::SipAccountConfig::stunEnabled.

Referenced by newOutgoingCall().

Here is the call graph for this function:

◆ isTlsEnabled()

virtual bool jami::SIPAccount::isTlsEnabled ( ) const

inlineoverridevirtual

Determine if TLS is enabled for this account.

TLS provides a secured channel for SIP signalization. It is independent of the media encryption (as provided by SRTP).

Reimplemented from jami::SIPAccountBase.

Definition at line 314 of file sipaccount.h.

References config(), and jami::SipAccountConfig::tlsEnable.

Referenced by newOutgoingCall().

Here is the call graph for this function:

◆ loadConfig()

void jami::SIPAccount::loadConfig ( )

overridevirtual

Actually useless, since config loading is done in init()

Reimplemented from jami::Account.

Definition at line 1125 of file sipaccount.cpp.

◆ matches()

MatchRank jami::SIPAccount::matches	(	std::string_view	username,
		std::string_view	hostname
	)		const

overridevirtual

Implements jami::SIPAccountBase.

Definition at line 1567 of file sipaccount.cpp.

References JAMI_LOG.

◆ newIncomingCall()

std::shared_ptr< SIPCall > jami::SIPAccount::newIncomingCall	(	const std::string &	from,
		const std::vector< libjami::MediaMap > &	mediaList,
		const std::shared_ptr< SipTransport > &	sipTr = `{}`
	)

overridevirtual

Create incoming SIPCall.

Parameters

[in]	from	The origin of the call
	mediaList	A list of media
	sipTr	SIP Transport

Returns: A shared pointer on the created call.

Implements jami::SIPAccountBase.

Definition at line 204 of file sipaccount.cpp.

References jami::Manager::callFactory, jami::emitSignal(), getContactHeader(), jami::Call::INCOMING, jami::Manager::instance(), jami::CallFactory::newSipCall(), and shared().

Here is the call graph for this function:

◆ newOutgoingCall()

std::shared_ptr< Call > jami::SIPAccount::newOutgoingCall	(	std::string_view	toUrl,
		const std::vector< libjami::MediaMap > &	mediaList
	)

overridevirtual

Create outgoing SIPCall.

Parameters

[in]	toUrl	the address to call
[in]	mediaList	list of medias

Returns: a shared pointer on the created call.

Implements jami::Account.

Definition at line 216 of file sipaccount.cpp.

References jami::MediaAttribute::buildMediaAttributesList(), jami::SIPAccountBase::createDefaultMediaList(), jami::emitSignal(), getContactHeader(), jami::sip_utils::getHostFromUri(), jami::SIPAccountBase::getLocalInterface(), jami::SIPAccountBase::getPublishedAddress(), jami::SIPAccountBase::getPublishedIpAddress(), jami::SIPAccountBase::getPublishedSameasLocal(), getToUri(), getTransportType(), jami::Account::getUPnPActive(), jami::Account::getUPnPIpAddress(), jami::Manager::instance(), jami::Account::isEmptyOffersEnabled(), isIP2IP(), isSrtpEnabled(), isStunEnabled(), isTlsEnabled(), jami::Account::isVideoEnabled(), JAMI_DBG, JAMI_LOG, JAMI_WARN, jami::SIPAccountBase::link_, jami::MediaAttribute::mediaAttributesToMediaMaps(), jami::Call::OUTGOING, setTransport(), shared(), and jami::SIPVoIPLink::sipTransportBroker.

Here is the call graph for this function:

◆ onRegister()

void jami::SIPAccount::onRegister ( pjsip_regc_cbparam * param )

Definition at line 897 of file sipaccount.cpp.

References JAMI_DBG, JAMI_ERROR, and JAMI_WARN.

◆ pushNotificationReceived()

void jami::SIPAccount::pushNotificationReceived	(	const std::string &	from,
		const std::map< std::string, std::string > &	data
	)

To be called by clients with relevant data when a push notification is received.

Definition at line 609 of file sipaccount.cpp.

References JAMI_WARNING.

◆ resetAutoRegistration()

void jami::SIPAccount::resetAutoRegistration ( )

Definition at line 1598 of file sipaccount.cpp.

◆ sendMessage()

void jami::SIPAccount::sendMessage	(	const std::string &	to,
		const std::string &	deviceId,
		const std::map< std::string, std::string > &	payloads,
		uint64_t	id,
		bool	retryOnTimeout = `true`,
		bool	onlyConnected = `false`
	)

overridevirtual

Implements jami::SIPAccountBase.

Definition at line 1851 of file sipaccount.cpp.

References jami::ctx::acc, JAMI_ERROR, and JAMI_WARN.

◆ sendRegister()

void jami::SIPAccount::sendRegister ( )

Build and send SIP registration request.

Definition at line 786 of file sipaccount.cpp.

References JAMI_ERR, JAMI_ERROR, JAMI_LOG, JAMI_WARNING, and jami::registration_cb().

Here is the call graph for this function:

◆ sendUnregister()

void jami::SIPAccount::sendUnregister ( )

Build and send SIP unregistration request.

Parameters

destroy_transport If true, attempt to destroy the transport.

Definition at line 985 of file sipaccount.cpp.

References JAMI_ERR.

◆ setActiveCodecs()

void jami::SIPAccount::setActiveCodecs ( const std::vector< unsigned > & list )

overridevirtual

Update both the codec order structure and the codec string used for SDP offer and configuration respectively.

Reimplemented from jami::Account.

Definition at line 2036 of file sipaccount.cpp.

References JAMI_WARNING, jami::MEDIA_ALL, jami::MEDIA_AUDIO, and jami::MEDIA_VIDEO.

◆ setLocalPort()

void jami::SIPAccount::setLocalPort ( uint16_t port )

inline

Definition at line 225 of file sipaccount.h.

References config(), editConfig(), jami::emitSignal(), and jami::SipAccountConfig::localPort.

Here is the call graph for this function:

◆ setPushNotificationConfig()

bool jami::SIPAccount::setPushNotificationConfig ( const std::map< std::string, std::string > & data )

overridevirtual

Reimplemented from jami::Account.

Definition at line 596 of file sipaccount.cpp.

◆ setPushNotificationToken()

bool jami::SIPAccount::setPushNotificationToken ( const std::string & pushDeviceToken = "" )

overridevirtual

Reimplemented from jami::Account.

Definition at line 582 of file sipaccount.cpp.

References JAMI_WARNING.

◆ setReceivedParameter()

void jami::SIPAccount::setReceivedParameter ( const std::string & received )

inline

Definition at line 318 of file sipaccount.h.

References jami::sip_utils::CONST_PJ_STR().

Here is the call graph for this function:

◆ setRegistrationInfo()

void jami::SIPAccount::setRegistrationInfo ( pjsip_regc * regc )

inline

Set the registration structure that is used for PJSIP in the registration process; @pram A pointer to the new registration structure.

Returns: void

Definition at line 209 of file sipaccount.h.

References destroyRegistrationInfo(), and jami::emitSignal().

Here is the call graph for this function:

◆ setRegistrationState()

void jami::SIPAccount::setRegistrationState	(	RegistrationState	state,
		int	detail_code = `0`,
		const std::string &	detail_str = `{}`
	)

overridevirtual

Set the registration state of the specified link.

Parameters

state The registration state of underlying VoIPLink

Reimplemented from jami::SIPAccountBase.

Definition at line 1495 of file sipaccount.cpp.

◆ setRPort()

void jami::SIPAccount::setRPort ( int rPort )

inline

Definition at line 336 of file sipaccount.h.

References jami::emitSignal().

Here is the call graph for this function:

◆ setTransport()

void jami::SIPAccount::setTransport ( const std::shared_ptr< SipTransport > & t = nullptr )

Definition at line 356 of file sipaccount.cpp.

References JAMI_DEBUG.

Referenced by newOutgoingCall(), and ~SIPAccount().

◆ shared() [1/2]

std::shared_ptr< SIPAccount > jami::SIPAccount::shared ( )

inline

Definition at line 52 of file sipaccount.h.

References jami::emitSignal().

Referenced by newIncomingCall(), and newOutgoingCall().

Here is the call graph for this function:

◆ shared() [2/2]

std::shared_ptr< SIPAccount const > jami::SIPAccount::shared ( ) const

inline

Definition at line 56 of file sipaccount.h.

References jami::emitSignal().

Here is the call graph for this function:

◆ supportPresence()

void jami::SIPAccount::supportPresence	(	int	function,
		bool	enable
	)

Activate the publish/subscribe.

Set the presence (PUBLISH/SUBSCRIBE) support flags and process the change.

Parameters

enable Flag

Definition at line 1540 of file sipaccount.cpp.

References JAMI_ERR, JAMI_LOG, PRESENCE_FUNCTION_PUBLISH, and PRESENCE_FUNCTION_SUBSCRIBE.

◆ updateDialogViaSentBy()

void jami::SIPAccount::updateDialogViaSentBy ( pjsip_dialog * dlg )

Definition at line 1826 of file sipaccount.cpp.

◆ updateProfile()

void jami::SIPAccount::updateProfile	(	const std::string &	displayName,
		const std::string &	avatar,
		const std::string &	fileType,
		int32_t	flag
	)

overridevirtual

updates SIP account profile

Implements jami::Account.

Definition at line 149 of file sipaccount.cpp.

References jami::emitSignal(), jami::base64::encode(), jami::Account::getAccountID(), jami::Account::getProfileVcard(), jami::Account::idPath_, vCard::utils::initVcard(), JAMI_ERROR, jami::fileutils::loadFile(), vCard::utils::removeByKey(), and vCard::utils::toString().

Here is the call graph for this function:

◆ weak() [1/2]

std::weak_ptr< SIPAccount > jami::SIPAccount::weak ( )

inline

Definition at line 60 of file sipaccount.h.

References jami::emitSignal().

Here is the call graph for this function:

◆ weak() [2/2]

std::weak_ptr< SIPAccount const > jami::SIPAccount::weak ( ) const

inline

Definition at line 64 of file sipaccount.h.

References jami::emitSignal().

Here is the call graph for this function:

Member Data Documentation

◆ ACCOUNT_TYPE

constexpr auto jami::SIPAccount::ACCOUNT_TYPE = ACCOUNT_TYPE_SIP

staticconstexpr

Definition at line 50 of file sipaccount.h.

Referenced by jami::AccountFactory::AccountFactory(), getAccountType(), and jami::transaction_request_cb().

◆ active

pj_bool_t jami::SIPAccount::active {false}

Flag of reregister status.

Definition at line 470 of file sipaccount.h.

◆ attempt_cnt

unsigned jami::SIPAccount::attempt_cnt {0}

Attempt counter.

Definition at line 472 of file sipaccount.h.

◆ timer

pj_timer_entry jami::SIPAccount::timer {}

Timer for reregistration.

Definition at line 471 of file sipaccount.h.

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SIPAccount()

◆ ~SIPAccount()

Member Function Documentation

◆ buildConfig()

◆ checkNATAddress()

◆ config()

◆ connectivityChanged()

◆ createBindingAddress()

◆ destroyRegistrationInfo()

◆ doRegister()

◆ doUnregister()

◆ editConfig()

◆ enablePresence()

◆ getAccountType()

◆ getContactAddress()

◆ getContactHeader()

◆ getCredentialCount()

◆ getCredentials()

◆ getCredInfo()

◆ getFromUri()

◆ getHostPortFromSTUN()

◆ getLocalPort()

◆ getPresence()

◆ getReceivedParameter()

◆ getRegistrationExpire()

◆ getRegistrationInfo()

◆ getRPort()

◆ getServerUri()

◆ getServiceRoute()

◆ getSrtpFallback()

◆ getStunPort()

◆ getStunServer()

◆ getStunServerName()

◆ getSupportedTlsCiphers()

◆ getSupportedTlsProtocols()

◆ getTlsListenerPort()

◆ getTlsSetting()

◆ getTlsSettings()

◆ getToUri()

◆ getTransport()

◆ getTransportSelector()

◆ getTransportType()

◆ getUserUri()

◆ getViaAddr()

◆ getVolatileAccountDetails()

◆ hasCredentials()

◆ hasServiceRoute()

◆ isIP2IP()

◆ isRegistered()

◆ isRegistrationRefreshEnabled()

◆ isSrtpEnabled()

◆ isStunEnabled()

◆ isTlsEnabled()

◆ loadConfig()

◆ matches()

◆ newIncomingCall()

◆ newOutgoingCall()

◆ onRegister()

◆ pushNotificationReceived()

◆ resetAutoRegistration()

◆ sendMessage()

◆ sendRegister()

◆ sendUnregister()

◆ setActiveCodecs()

◆ setLocalPort()

◆ setPushNotificationConfig()

◆ setPushNotificationToken()

◆ setReceivedParameter()

◆ setRegistrationInfo()

◆ setRegistrationState()

◆ setRPort()

◆ setTransport()

◆ shared() [1/2]

◆ shared() [2/2]
