#include <sippresence.h>

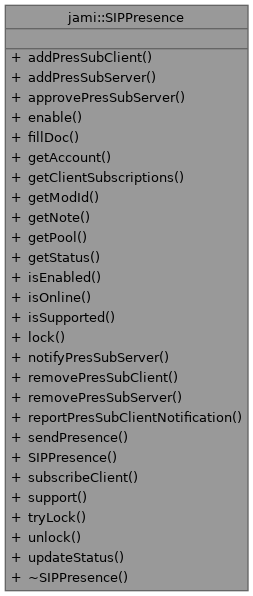

Collaboration diagram for jami::SIPPresence:

Public Member Functions
void	addPresSubClient (PresSubClient *b)
	Add a buddy in the buddy list.

void	addPresSubServer (PresSubServer *s)
	IP2IP context.

void	approvePresSubServer (const std::string &uri, bool flag)
	IP2IP context.

void	enable (bool enabled)
	Activate the module.

void	fillDoc (pjsip_tx_data tdata, const pres_msg_data msg_data)
	Fill xml document, the header and the body.

SIPAccount *	getAccount () const
	Return associated sipaccount.

const std::list< PresSubClient * > &	getClientSubscriptions () const

int	getModId () const
	Return presence module ID which is actually the same as the VOIP link.

std::string	getNote ()

pj_pool_t *	getPool () const
	Return a pool for generic functions.

pjsip_pres_status *	getStatus ()
	Return presence data.

bool	isEnabled ()

bool	isOnline ()

bool	isSupported (int function)

void	lock ()

void	notifyPresSubServer ()
	IP2IP context.

void	removePresSubClient (PresSubClient *b)
	Remove a buddy from the list.

void	removePresSubServer (PresSubServer *s)
	IP2IP context.

void	reportPresSubClientNotification (std::string_view uri, pjsip_pres_status *status)
	Send a signal to the client on DBus.

void	sendPresence (bool status, const std::string &note)
	Send the presence data in a PUBLISH to the PBX or in a NOTIFY to a remote subscriber (IP2IP)

	SIPPresence (SIPAccount *acc)
	Constructor.

void	subscribeClient (const std::string &uri, bool flag)
	Send a SUBSCRIBE request to PBX/IP2IP.

void	support (int function, bool enabled)
	Support the presence function publish/subscribe.

bool	tryLock ()

void	unlock ()

void	updateStatus (bool status, const std::string &note)
	Modify the presence data.

	~SIPPresence ()
	Destructor.

Detailed Description

Definition at line 88 of file sippresence.h.

Constructor & Destructor Documentation

◆ SIPPresence()

jami::SIPPresence::SIPPresence ( SIPAccount * acc )

Constructor.

Parameters

acc	the associated sipaccount

Definition at line 43 of file sippresence.cpp.

References jami::emitSignal(), and updateStatus().

Here is the call graph for this function:

◆ ~SIPPresence()

jami::SIPPresence::~SIPPresence ( )

Destructor.

Definition at line 67 of file sippresence.cpp.

References jami::emitSignal().

Here is the call graph for this function:

Member Function Documentation

◆ addPresSubClient()

void jami::SIPPresence::addPresSubClient ( PresSubClient * b )

Add a buddy in the buddy list.

Parameters

b	PresSubClient pointer

Definition at line 243 of file sippresence.cpp.

References JAMI_DBG, JAMI_WARN, and MAX_N_SUB_CLIENT.

Referenced by jami::PresSubClient::enable().

◆ addPresSubServer()

void jami::SIPPresence::addPresSubServer ( PresSubServer * s )

IP2IP context.

Add a server associated to a subscriber in the list.

Parameters

s	PresenceSubcription pointer.

Definition at line 273 of file sippresence.cpp.

References JAMI_WARN, and MAX_N_SUB_SERVER.

◆ approvePresSubServer()

void jami::SIPPresence::approvePresSubServer	(	const std::string &	uri,
		bool	flag
	)

IP2IP context.

Process new subscription based on client decision.

Parameters

flag	client decision.
uri	uri of the remote subscriber

Definition at line 262 of file sippresence.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ enable()

void jami::SIPPresence::enable ( bool enabled )

Activate the module.

Parameters

enable Flag

Definition at line 106 of file sippresence.cpp.

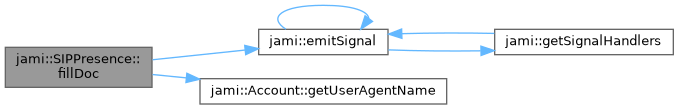

◆ fillDoc()

void jami::SIPPresence::fillDoc	(	pjsip_tx_data *	tdata,
		const pres_msg_data *	msg_data
	)

Fill xml document, the header and the body.

Definition at line 318 of file sippresence.cpp.

References jami::emitSignal(), jami::Account::getUserAgentName(), and JAMI_DBG.

Referenced by jami::PresSubServer::notify(), and jami::PresSubClient::unsubscribe().

Here is the call graph for this function:

◆ getAccount()

SIPAccount * jami::SIPPresence::getAccount ( ) const

Return associated sipaccount.

Definition at line 82 of file sippresence.cpp.

Referenced by jami::PresSubClient::PresSubClient(), and jami::PresSubClient::subscribe().

◆ getClientSubscriptions()

const std::list< PresSubClient * > & jami::SIPPresence::getClientSubscriptions ( ) const

inline

Definition at line 192 of file sippresence.h.

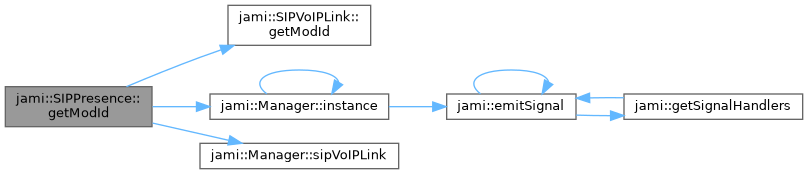

◆ getModId()

int jami::SIPPresence::getModId ( ) const

Return presence module ID which is actually the same as the VOIP link.

Definition at line 94 of file sippresence.cpp.

References jami::SIPVoIPLink::getModId(), jami::Manager::instance(), and jami::Manager::sipVoIPLink().

Here is the call graph for this function:

◆ getNote()

std::string jami::SIPPresence::getNote ( )

inline

Definition at line 196 of file sippresence.h.

◆ getPool()

pj_pool_t * jami::SIPPresence::getPool ( ) const

Return a pool for generic functions.

Definition at line 100 of file sippresence.cpp.

Referenced by jami::PresSubClient::subscribe().

◆ getStatus()

pjsip_pres_status * jami::SIPPresence::getStatus ( )

Return presence data.

Definition at line 88 of file sippresence.cpp.

Referenced by jami::PresSubServer::approve(), and jami::PresSubServer::notify().

◆ isEnabled()

bool jami::SIPPresence::isEnabled ( )

inline

Definition at line 188 of file sippresence.h.

◆ isOnline()

bool jami::SIPPresence::isOnline ( )

inline

Definition at line 194 of file sippresence.h.

◆ isSupported()

bool jami::SIPPresence::isSupported ( int function )

Definition at line 121 of file sippresence.cpp.

References jami::emitSignal(), PRESENCE_FUNCTION_PUBLISH, and PRESENCE_FUNCTION_SUBSCRIBE.

Here is the call graph for this function:

◆ lock()

void jami::SIPPresence::lock ( )

Definition at line 300 of file sippresence.cpp.

◆ notifyPresSubServer()

void jami::SIPPresence::notifyPresSubServer ( )

IP2IP context.

Iterate through the subscriber list and send NOTIFY to each.

Definition at line 291 of file sippresence.cpp.

References JAMI_DBG.

Referenced by sendPresence().

◆ removePresSubClient()

void jami::SIPPresence::removePresSubClient ( PresSubClient * b )

Remove a buddy from the list.

Parameters

b	PresSubClient pointer

Definition at line 255 of file sippresence.cpp.

References JAMI_DBG.

◆ removePresSubServer()

void jami::SIPPresence::removePresSubServer ( PresSubServer * s )

IP2IP context.

Remove a server associated to a subscriber from the list.

Parameters

s	PresenceSubcription pointer.

Definition at line 284 of file sippresence.cpp.

References JAMI_DBG.

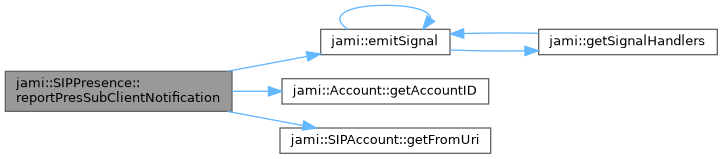

◆ reportPresSubClientNotification()

void jami::SIPPresence::reportPresSubClientNotification	(	std::string_view	uri,
		pjsip_pres_status *	status
	)

Send a signal to the client on DBus.

The signal contain the status of a remote user.

Definition at line 179 of file sippresence.cpp.

References jami::emitSignal(), jami::Account::getAccountID(), jami::SIPAccount::getFromUri(), and JAMI_DBG.

Here is the call graph for this function:

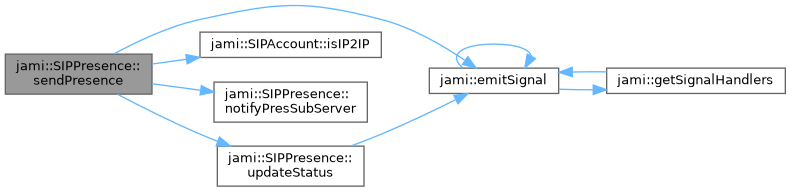

◆ sendPresence()

void jami::SIPPresence::sendPresence	(	bool	status,
		const std::string &	note
	)

Send the presence data in a PUBLISH to the PBX or in a NOTIFY to a remote subscriber (IP2IP)

Definition at line 165 of file sippresence.cpp.

References jami::emitSignal(), jami::SIPAccount::isIP2IP(), notifyPresSubServer(), and updateStatus().

Here is the call graph for this function:

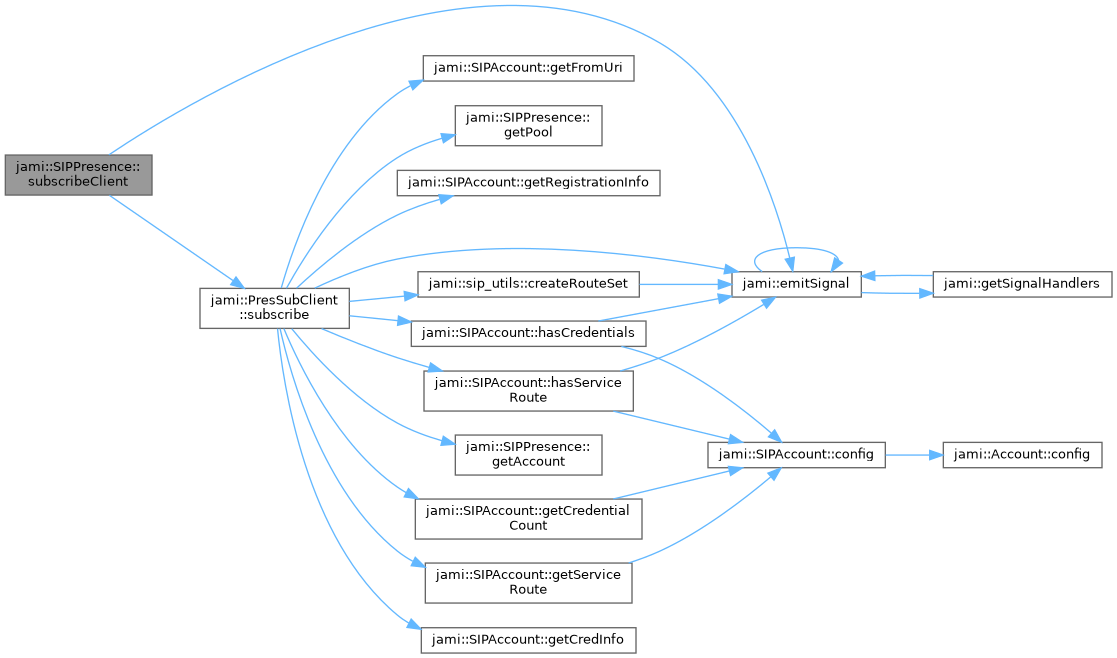

◆ subscribeClient()

void jami::SIPPresence::subscribeClient	(	const std::string &	uri,
		bool	flag
	)

Send a SUBSCRIBE request to PBX/IP2IP.

Parameters

buddyUri Remote user that we want to subscribe

Definition at line 203 of file sippresence.cpp.

References jami::emitSignal(), JAMI_WARN, MAX_N_SUB_CLIENT, and jami::PresSubClient::subscribe().

Here is the call graph for this function:

◆ support()

void jami::SIPPresence::support	(	int	function,
		bool	enabled
	)

Support the presence function publish/subscribe.

Parameters

function	Publish or subscribe to enable
enable	Flag

Definition at line 112 of file sippresence.cpp.

References jami::emitSignal(), PRESENCE_FUNCTION_PUBLISH, and PRESENCE_FUNCTION_SUBSCRIBE.

Here is the call graph for this function:

◆ tryLock()

bool jami::SIPPresence::tryLock ( )

Definition at line 306 of file sippresence.cpp.

Referenced by jami::PresSubClient::lock().

◆ unlock()

void jami::SIPPresence::unlock ( )

Definition at line 312 of file sippresence.cpp.

Referenced by jami::PresSubClient::lock(), and jami::PresSubClient::unlock().

◆ updateStatus()

void jami::SIPPresence::updateStatus	(	bool	status,
		const std::string &	note
	)

Modify the presence data.

Parameters

status is basically "open" or "close"

Definition at line 132 of file sippresence.cpp.

References jami::emitSignal().

Referenced by sendPresence(), and SIPPresence().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
