#include <call.h>

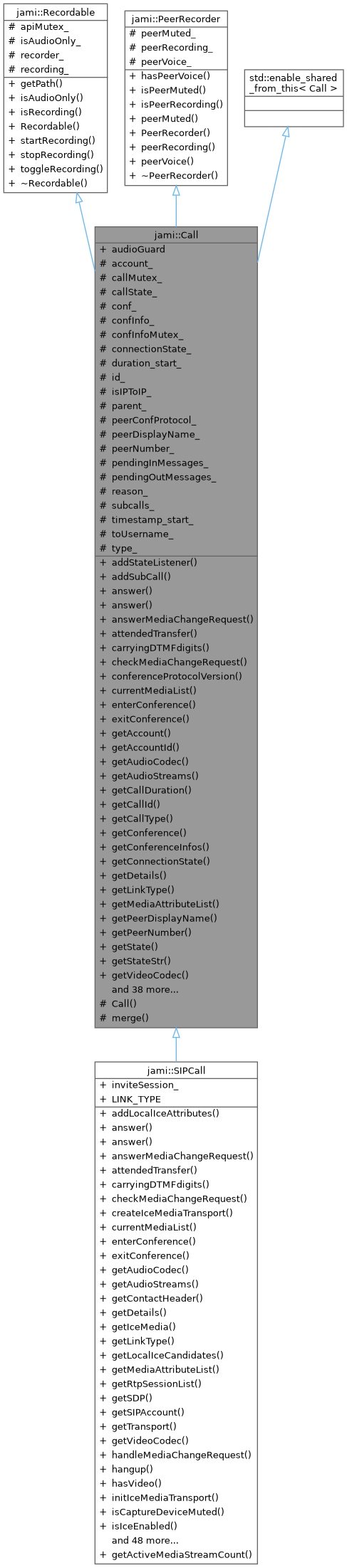

Inheritance diagram for jami::Call:

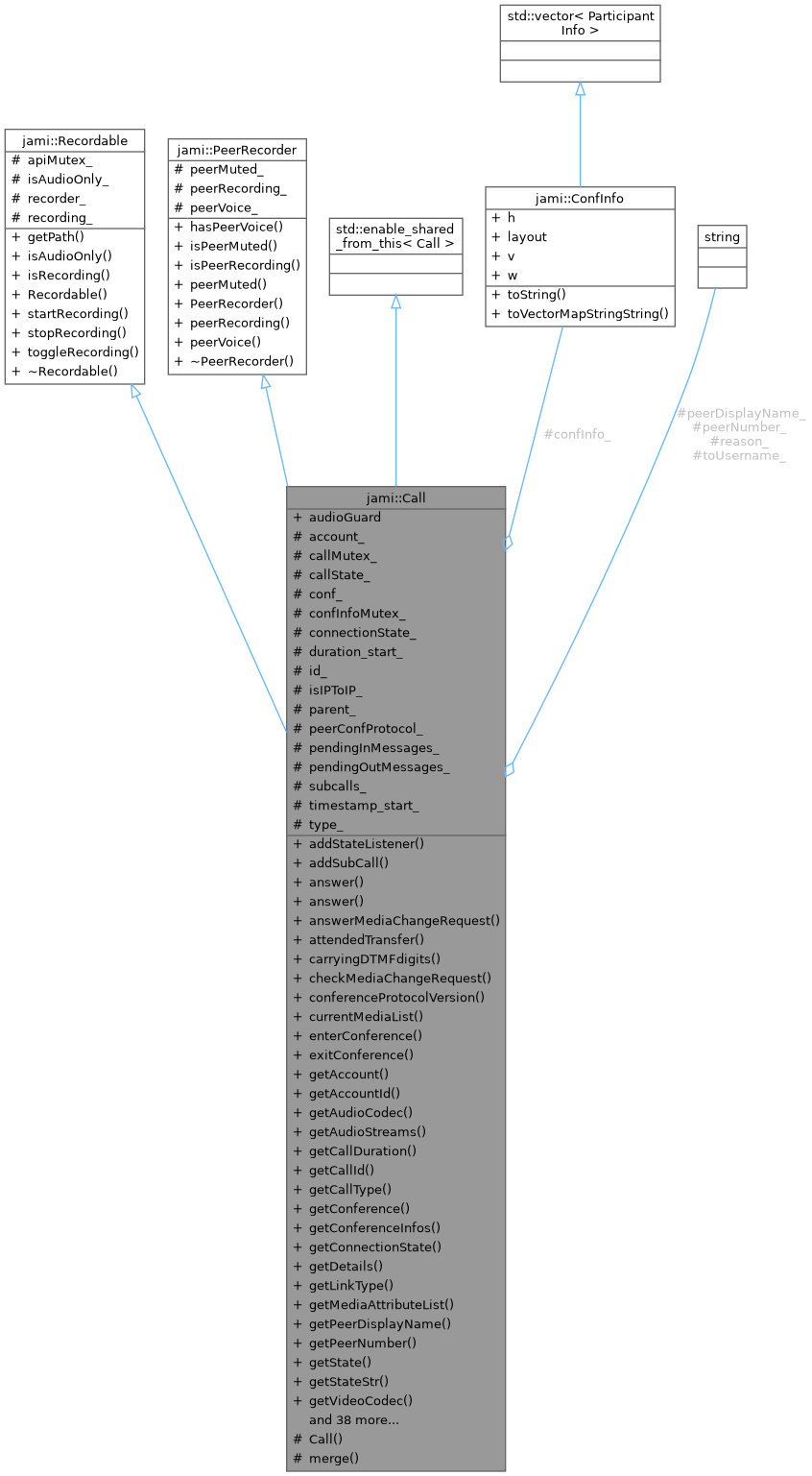

Collaboration diagram for jami::Call:

Public Types
enum class	CallState : uint8_t { INACTIVE , ACTIVE , HOLD , BUSY , PEER_BUSY , MERROR , OVER , COUNT__ }
	The Call State. More...

enum class	CallType : uint8_t { INCOMING , OUTGOING , MISSED }
	This determines if the call originated from the local user (OUTGOING) or from some remote peer (INCOMING, MISSED). More...

enum class	ConnectionState : uint8_t { DISCONNECTED , TRYING , PROGRESSING , RINGING , CONNECTED , COUNT__ }
	Tell where we're at with the call. More...

enum class	LinkType : uint8_t { GENERIC , SIP }

using	OnReadyCb = std::function< void(bool)>

using	StateListenerCb = std::function< bool(CallState, ConnectionState, int)>

using	SubcallSet = std::set< std::shared_ptr< Call >, std::owner_less< std::shared_ptr< Call > > >

Public Member Functions
void	addStateListener (StateListenerCb &&listener)

void	addSubCall (Call &call)
	Attach subcall to this instance.

virtual void	answer (const std::vector< libjami::MediaMap > &mediaList)=0
	Answer a call with a list of media attributes.

virtual void	answerMediaChangeRequest (const std::vector< libjami::MediaMap > &mediaList, bool isRemote=false)=0
	Answer to a media update request.

virtual bool	attendedTransfer (const std::string &to)=0
	Attended transfer.

virtual void	carryingDTMFdigits (char code)=0
	Send DTMF.

virtual bool	checkMediaChangeRequest (const std::vector< libjami::MediaMap > &remoteMediaList)=0
	Check the media of an incoming media change request.

int	conferenceProtocolVersion () const

virtual std::vector< libjami::MediaMap >	currentMediaList () const =0
	Retrieve current medias list.

virtual void	enterConference (std::shared_ptr< Conference > conference)=0

virtual void	exitConference ()=0

std::weak_ptr< Account >	getAccount () const

std::string	getAccountId () const

virtual std::shared_ptr< SystemCodecInfo >	getAudioCodec () const

virtual std::map< std::string, bool >	getAudioStreams () const =0

std::chrono::milliseconds	getCallDuration () const

const std::string &	getCallId () const
	Return a reference on the call id.

CallType	getCallType () const

std::shared_ptr< Conference >	getConference () const
	Return a reference on the conference id.

std::vector< std::map< std::string, std::string > >	getConferenceInfos () const

ConnectionState	getConnectionState () const
	Get the connection state of the call (protected by mutex)

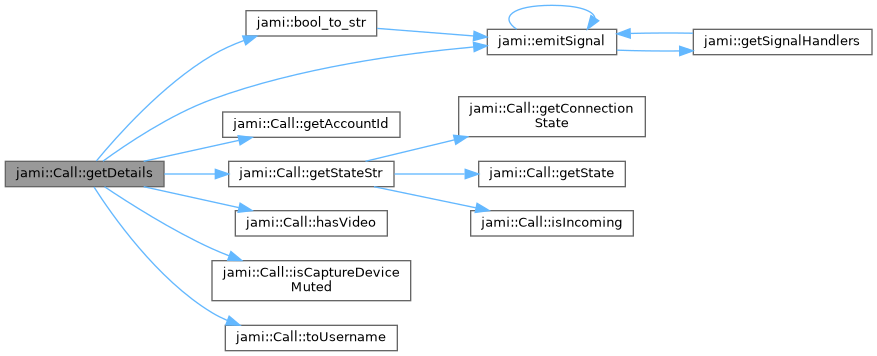

virtual std::map< std::string, std::string >	getDetails () const

virtual LinkType	getLinkType () const

virtual std::vector< MediaAttribute >	getMediaAttributeList () const =0

const std::string &	getPeerDisplayName () const
	Get the peer display name (caller in ingoing) not protected by mutex (when created)

const std::string &	getPeerNumber () const
	Get the peer number (destination on outgoing) not protected by mutex (when created)

virtual std::map< std::string, bool >	getRemoteAudioStreams () const =0
	Return a map of audio stream IDs to their remote (peer-side) muted state.

CallState	getState () const
	Get the call state of the call (protected by mutex)

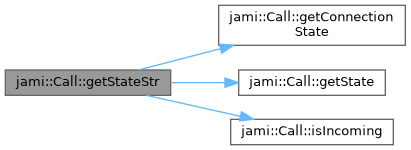

std::string	getStateStr () const

virtual std::shared_ptr< SystemCodecInfo >	getVideoCodec () const

virtual void	handleMediaChangeRequest (const std::vector< libjami::MediaMap > &remoteMediaList)=0
	Process incoming media change request.

virtual void	hangup (int reason)=0
	Hang up the call.

virtual bool	hasVideo () const =0

virtual bool	hold (OnReadyCb &&cb)=0
	Hold call.

virtual bool	isCaptureDeviceMuted (const MediaType &mediaType) const =0

bool	isConferenceParticipant () const

virtual bool	isIceEnabled () const =0
	Check wether ICE is enabled for media.

bool	isIncoming () const
	Tell if the call is incoming.

bool	isSubcall () const
	Return true if this call instance is a subcall (internal call for multi-device handling)

virtual void	monitor () const =0

virtual void	muteMedia (const std::string &mediaType, bool isMuted)=0
	mute/unmute a media of a call

void	onTextMessage (std::map< std::string, std::string > &&messages)

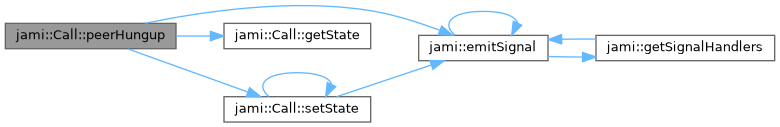

virtual void	peerHungup ()
	Peer has hung up a call.

virtual void	refuse ()=0
	Refuse incoming call.

virtual void	removeCall (int code=0)

virtual bool	requestMediaChange (const std::vector< libjami::MediaMap > &mediaList)=0
	Make a change request of the current media with the provided media.

void	resetConfInfo ()

virtual void	restartMediaSender ()=0

virtual bool	resume (OnReadyCb &&cb)=0
	Resume call from hold state.

void	sendConfInfo (const std::string &json)

void	sendConfOrder (const Json::Value &root)

virtual void	sendKeyframe (int streamIdx=-1)=0

virtual void	sendTextMessage (const std::map< std::string, std::string > &messages, const std::string &from)=0
	Send a message to a call identified by its callid.

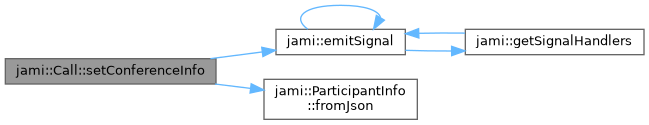

void	setConferenceInfo (const std::string &msg)
	A Call can be in a conference.

void	setIPToIP (bool IPToIP)

void	setPeerDisplayName (const std::string &name)
	Set the display name (caller in ingoing) not protected by mutex (when created)

void	setPeerNumber (const std::string &number)
	Set the peer number (destination on outgoing) not protected by mutex (when created)

bool	setState (CallState call_state, ConnectionState cnx_state, signed code=0)
	Set the state of the call (protected by mutex)

bool	setState (CallState call_state, signed code=0)
	Set the state of the call (protected by mutex)

bool	setState (ConnectionState cnx_state, signed code=0)
	Set the state of the call (protected by mutex)

virtual void	switchInput (const std::string &={})

virtual bool	toggleRecording ()
	This method must be implemented for this interface as calls and conferences have different behavior.

const std::string &	toUsername () const
	Get "To" from the invite.

void	toUsername (const std::string &username)
	Updated by sipvoiplink, corresponds to the "To" in the invite.

virtual void	transfer (const std::string &to)=0
	Transfer a call to specified URI.

virtual void	updateRecState (bool state)=0
	Update recording state.

virtual	~Call ()

Public Member Functions inherited from jami::Recordable
virtual std::string	getPath () const
	Return the file path for this recording.

bool	isAudioOnly () const

bool	isRecording () const
	Return recording state (true/false)

	Recordable ()

virtual bool	startRecording (const std::string &path)
	Start recording.

virtual void	stopRecording ()
	Stop recording.

virtual	~Recordable ()

Public Member Functions inherited from jami::PeerRecorder
virtual bool	hasPeerVoice () const

virtual bool	isPeerMuted () const

virtual bool	isPeerRecording () const

virtual void	peerMuted (bool muted, int streamIdx)=0

	PeerRecorder ()

virtual void	peerRecording (bool state)=0

virtual void	peerVoice (bool voice)=0

virtual	~PeerRecorder ()

Public Attributes
std::unique_ptr< AudioDeviceGuard >	audioGuard

Protected Types
using	clock = std::chrono::steady_clock

using	MsgList = std::list< std::pair< std::map< std::string, std::string >, std::string > >
	MultiDevice: message waiting to be sent (need a valid subcall)

using	time_point = clock::time_point

Protected Member Functions
	Call (const std::shared_ptr< Account > &account, const std::string &id, Call::CallType type)
	Constructor of a call.

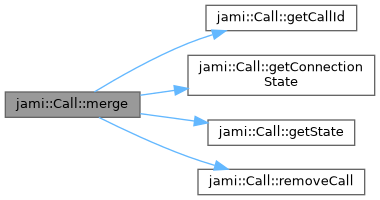

virtual void	merge (Call &scall)
	Replace current call data with ones from the given subcall.

Protected Attributes
std::weak_ptr< Account >	account_
	Associate account ID.

std::recursive_mutex	callMutex_ {}
	Protect every attribute that can be changed by two threads.

CallState	callState_ {CallState::INACTIVE}
	Inactive/Active/Hold/Busy/Error.

std::weak_ptr< Conference >	conf_ {}
	Unique conference ID, used exclusively in case of a conference.

ConfInfo	confInfo_ {}

std::mutex	confInfoMutex_ {}

ConnectionState	connectionState_ {ConnectionState::DISCONNECTED}
	Disconnected/Progressing/Trying/Ringing/Connected.

time_point	duration_start_ {time_point::min()}

const std::string	id_ {}
	MultiDevice: parent call, nullptr otherwise. Access protected by callMutex_.

bool	isIPToIP_ {false}
	Direct IP-to-IP or classic call.

std::shared_ptr< Call >	parent_
	MultiDevice: list of attached subcall.

int	peerConfProtocol_ {0}
	Supported conference protocol version.

std::string	peerDisplayName_ {}
	Peer Display Name.

std::string	peerNumber_ {}
	Number of the peer.

MsgList	pendingInMessages_

MsgList	pendingOutMessages_

std::string	reason_ {}

SubcallSet	subcalls_

asio::steady_timer	timeoutTimer_

time_t	timestamp_start_ {0}
	MultiDevice: message received by subcall to merged yet.

std::string	toUsername_ {}

CallType	type_
	Type of the call.

Protected Attributes inherited from jami::Recordable
std::mutex	apiMutex_

bool	isAudioOnly_ {false}

std::shared_ptr< MediaRecorder >	recorder_

bool	recording_ {false}

Protected Attributes inherited from jami::PeerRecorder
bool	peerMuted_ {false}

bool	peerRecording_ {false}

bool	peerVoice_ {false}

Detailed Description

Definition at line 69 of file call.h.

Member Typedef Documentation

◆ clock

using jami::Call::clock = std::chrono::steady_clock

protected

Definition at line 440 of file call.h.

◆ MsgList

using jami::Call::MsgList = std::list<std::pair<std::map<std::string, std::string>, std::string> >

protected

MultiDevice: message waiting to be sent (need a valid subcall)

Definition at line 461 of file call.h.

◆ OnReadyCb

using jami::Call::OnReadyCb = std::function<void(bool)>

Definition at line 94 of file call.h.

◆ StateListenerCb

using jami::Call::StateListenerCb = std::function<bool(CallState, ConnectionState, int)>

Definition at line 95 of file call.h.

◆ SubcallSet

using jami::Call::SubcallSet = std::set<std::shared_ptr<Call>, std::owner_less<std::shared_ptr<Call> >>

Definition at line 93 of file call.h.

◆ time_point

using jami::Call::time_point = clock::time_point

protected

Definition at line 441 of file call.h.

Member Enumeration Documentation

◆ CallState

enum class jami::Call::CallState : uint8_t

strong

The Call State.

Note: modify validStateTransition/getStateStr if this enum changes

Enumerator
INACTIVE
ACTIVE
HOLD
BUSY
PEER_BUSY
MERROR
OVER
COUNT__

Definition at line 89 of file call.h.

◆ CallType

enum class jami::Call::CallType : uint8_t

strong

This determines if the call originated from the local user (OUTGOING) or from some remote peer (INCOMING, MISSED).

Enumerator
INCOMING
OUTGOING
MISSED

Definition at line 101 of file call.h.

◆ ConnectionState

enum class jami::Call::ConnectionState : uint8_t

strong

Tell where we're at with the call.

The call gets Connected when we know from the other end what happened with out call. A call can be 'Connected' even if the call state is Busy, or Error.

Audio should be transmitted when ConnectionState = Connected AND CallState = Active.

Note: modify validStateTransition/getStateStr if this enum changes

Enumerator
DISCONNECTED
TRYING
PROGRESSING
RINGING
CONNECTED
COUNT__

Definition at line 82 of file call.h.

◆ LinkType

enum class jami::Call::LinkType : uint8_t

strong

Enumerator
GENERIC
SIP

Definition at line 91 of file call.h.

Constructor & Destructor Documentation

◆ ~Call()

jami::Call::~Call ( )

virtual

Definition at line 127 of file call.cpp.

◆ Call()

jami::Call::Call	(	const std::shared_ptr< Account > &	account,
		const std::string &	id,
		Call::CallType	type
	)

protected

Constructor of a call.

Parameters

id	Unique identifier of the call
type	set definitely this call as incoming/outgoing

Definition at line 70 of file call.cpp.

References addStateListener(), jami::Manager::callFailure(), CONNECTED, DISCONNECTED, duration_start_, jami::emitSignal(), getAccount(), getCallDuration(), getCallType(), getPeerNumber(), jami::Manager::getRingingTimeout(), jami::hangupCalls(), INCOMING, jami::Manager::instance(), isSubcall(), JAMI_LOG, monitor(), OUTGOING, OVER, reason_, RINGING, jami::runOnMainThread(), timeoutTimer_, timestamp_start_, toUsername(), and type_.

Here is the call graph for this function:

Member Function Documentation

◆ addStateListener()

void jami::Call::addStateListener ( StateListenerCb && listener )

inline

Definition at line 319 of file call.h.

References callMutex_, and jami::emitSignal().

Referenced by Call().

Here is the call graph for this function:

◆ addSubCall()

void jami::Call::addSubCall ( Call & call )

Attach subcall to this instance.

If this subcall is answered, this subcall and this instance will be merged using merge().

Definition at line 408 of file call.cpp.

References callMutex_, callState_, CONNECTED, connectionState_, DISCONNECTED, jami::emitSignal(), getCallId(), jami::getPtr(), JAMI_DBG, JAMI_ERR, OVER, pendingOutMessages_, jami::runOnMainThread(), and subcalls_.

Here is the call graph for this function:

◆ answer()

virtual void jami::Call::answer ( const std::vector< libjami::MediaMap > & mediaList )

pure virtual

Answer a call with a list of media attributes.

Parameters

mediaList The list of the media attributes. The media attributes set by the caller of this method will determine the response sent to the peer and the configuration of the local media. If the media list is empty, the current media set when the call was created will be used.

Implemented in jami::SIPCall.

Referenced by jami::Manager::acceptCall().

◆ answerMediaChangeRequest()

virtual void jami::Call::answerMediaChangeRequest	(	const std::vector< libjami::MediaMap > &	mediaList,
		bool	isRemote = `false`
	)

pure virtual

Answer to a media update request.

The media attributes set by the caller of this method will determine the response to send to the peer and the configuration of the local media.

Parameters

mediaList	The list of media attributes. An empty media list means the media update request was not accepted, meaning the call continue with the current media. It's up to the implementation to determine wether an answer will be sent to the peer.
isRemote	True if the media list is from the remote peer

Implemented in jami::SIPCall.

◆ attendedTransfer()

virtual bool jami::Call::attendedTransfer ( const std::string & to )

pure virtual

Attended transfer.

Parameters

The	target call id

Returns: True on success

Implemented in jami::SIPCall.

◆ carryingDTMFdigits()

virtual void jami::Call::carryingDTMFdigits ( char code )

pure virtual

Send DTMF.

Parameters

code	The char code

Implemented in jami::SIPCall.

◆ checkMediaChangeRequest()

virtual bool jami::Call::checkMediaChangeRequest ( const std::vector< libjami::MediaMap > & remoteMediaList )

pure virtual

Check the media of an incoming media change request.

This method checks the new media against the current media. It determines if the differences are significant enough to require more processing. For instance, this can be used to check if the a change request must be reported to the client for confirmation or can be handled by the daemon. The conditions that cause this method to return true are implementation specific.

Parameters

the	new media list from the remote

Returns: true if the new media differs from the current media

Implemented in jami::SIPCall.

◆ conferenceProtocolVersion()

int jami::Call::conferenceProtocolVersion ( ) const

inline

Definition at line 437 of file call.h.

References peerConfProtocol_.

◆ currentMediaList()

virtual std::vector< libjami::MediaMap > jami::Call::currentMediaList ( ) const

pure virtual

Retrieve current medias list.

Returns: current medias

Implemented in jami::SIPCall.

◆ enterConference()

virtual void jami::Call::enterConference ( std::shared_ptr< Conference > conference )

pure virtual

Implemented in jami::SIPCall.

◆ exitConference()

virtual void jami::Call::exitConference ( )

pure virtual

Implemented in jami::SIPCall.

◆ getAccount()

std::weak_ptr< Account > jami::Call::getAccount ( ) const

inline

Definition at line 120 of file call.h.

References account_.

Referenced by Call(), and jami::Manager::ManagerPimpl::processRemainingParticipants().

◆ getAccountId()

std::string jami::Call::getAccountId ( ) const

Definition at line 144 of file call.cpp.

References account_, and JAMI_ERR.

Referenced by jami::Manager::ManagerPimpl::bindCallToConference(), jami::Manager::detachParticipant(), jami::Manager::finish(), getDetails(), jami::Manager::ManagerPimpl::hangupConference(), onTextMessage(), setState(), and jami::transferCall().

◆ getAudioCodec()

virtual std::shared_ptr< SystemCodecInfo > jami::Call::getAudioCodec ( ) const

inlinevirtual

Reimplemented in jami::SIPCall.

Definition at line 406 of file call.h.

◆ getAudioStreams()

virtual std::map< std::string, bool > jami::Call::getAudioStreams ( ) const

pure virtual

Implemented in jami::SIPCall.

Referenced by jami::Manager::addAudio(), jami::Manager::ManagerPimpl::bindCallToConference(), jami::Manager::ManagerPimpl::processRemainingParticipants(), and jami::Manager::removeAudio().

◆ getCallDuration()

std::chrono::milliseconds jami::Call::getCallDuration ( ) const

inline

Returns: Call duration in milliseconds

Definition at line 343 of file call.h.

References duration_start_.

Referenced by Call().

◆ getCallId()

const std::string & jami::Call::getCallId ( ) const

inline

Return a reference on the call id.

Returns: call id

Definition at line 111 of file call.h.

References id_.

◆ getCallType()

CallType jami::Call::getCallType ( ) const

inline

Definition at line 123 of file call.h.

References type_.

Referenced by Call().

◆ getConference()

std::shared_ptr< Conference > jami::Call::getConference ( ) const

inline

Return a reference on the conference id.

Returns: call id

Definition at line 117 of file call.h.

References conf_.

Referenced by jami::Manager::acceptCall(), jami::Manager::addSubCall(), jami::Manager::incomingMessage(), jami::Manager::removeParticipant(), and jami::Manager::sendCallTextMessage().

◆ getConferenceInfos()

std::vector< std::map< std::string, std::string > > jami::Call::getConferenceInfos ( ) const

inline

Definition at line 425 of file call.h.

References confInfo_, and jami::ConfInfo::toVectorMapStringString().

Here is the call graph for this function:

◆ getConnectionState()

Call::ConnectionState jami::Call::getConnectionState ( ) const

Get the connection state of the call (protected by mutex)

Returns: ConnectionState The connection state

Definition at line 153 of file call.cpp.

References callMutex_, and connectionState_.

Referenced by jami::Manager::acceptCall(), getStateStr(), and merge().

◆ getDetails()

std::map< std::string, std::string > jami::Call::getDetails ( ) const

virtual

Reimplemented in jami::SIPCall.

Definition at line 348 of file call.cpp.

Here is the call graph for this function:

◆ getLinkType()

virtual LinkType jami::Call::getLinkType ( ) const

inlinevirtual

Reimplemented in jami::SIPCall.

Definition at line 105 of file call.h.

References GENERIC.

Referenced by jami::CallFactory::removeCall().

◆ getMediaAttributeList()

virtual std::vector< MediaAttribute > jami::Call::getMediaAttributeList ( ) const

pure virtual

Implemented in jami::SIPCall.

◆ getPeerDisplayName()

const std::string & jami::Call::getPeerDisplayName ( ) const

inline

Get the peer display name (caller in ingoing) not protected by mutex (when created)

Returns: std::string The peer name

Definition at line 162 of file call.h.

References peerDisplayName_.

◆ getPeerNumber()

const std::string & jami::Call::getPeerNumber ( ) const

inline

Get the peer number (destination on outgoing) not protected by mutex (when created)

Returns: std::string The peer number

Definition at line 137 of file call.h.

References peerNumber_.

Referenced by Call(), and onTextMessage().

◆ getRemoteAudioStreams()

virtual std::map< std::string, bool > jami::Call::getRemoteAudioStreams ( ) const

pure virtual

Return a map of audio stream IDs to their remote (peer-side) muted state.

Unlike getAudioStreams() which returns the local send muted state, this returns whether the remote peer is sending audio on each stream.

Implemented in jami::SIPCall.

◆ getState()

Call::CallState jami::Call::getState ( ) const

Get the call state of the call (protected by mutex)

Returns: CallState The call state

Definition at line 160 of file call.cpp.

References callMutex_, and callState_.

Referenced by getStateStr(), merge(), peerHungup(), and jami::SIPCall::SIPCall().

◆ getStateStr()

std::string jami::Call::getStateStr ( ) const

Definition at line 284 of file call.cpp.

Referenced by jami::Manager::ManagerPimpl::bindCallToConference(), jami::Manager::detachParticipant(), getDetails(), jami::Manager::hasCurrentCall(), and setState().

Here is the call graph for this function:

◆ getVideoCodec()

virtual std::shared_ptr< SystemCodecInfo > jami::Call::getVideoCodec ( ) const

inlinevirtual

Reimplemented in jami::SIPCall.

Definition at line 407 of file call.h.

◆ handleMediaChangeRequest()

virtual void jami::Call::handleMediaChangeRequest ( const std::vector< libjami::MediaMap > & remoteMediaList )

pure virtual

Process incoming media change request.

Parameters

the	new media list from the remote

Implemented in jami::SIPCall.

◆ hangup()

virtual void jami::Call::hangup ( int reason )

pure virtual

Hang up the call.

Parameters

reason

Implemented in jami::SIPCall.

◆ hasVideo()

virtual bool jami::Call::hasVideo ( ) const

pure virtual

Implemented in jami::SIPCall.

Referenced by getDetails().

◆ hold()

virtual bool jami::Call::hold ( OnReadyCb && cb )

pure virtual

Hold call.

Parameters

cb	On hold can be queued if waiting for ICE. This callback will be called when ready

Returns: bool True on success, False if failed or pending

Implemented in jami::SIPCall.

Referenced by jami::Manager::holdCall().

◆ isCaptureDeviceMuted()

virtual bool jami::Call::isCaptureDeviceMuted ( const MediaType & mediaType ) const

pure virtual

Implemented in jami::SIPCall.

Referenced by getDetails().

◆ isConferenceParticipant()

bool jami::Call::isConferenceParticipant ( ) const

inline

Definition at line 118 of file call.h.

References conf_, jami::emitSignal(), and jami::is_uninitialized().

Referenced by jami::Manager::addAudio(), jami::Manager::ManagerPimpl::bindCallToConference(), jami::Manager::callFailure(), jami::Manager::incomingMessage(), jami::Manager::peerHungupCall(), jami::Manager::sendCallTextMessage(), and jami::Manager::transferCall().

Here is the call graph for this function:

◆ isIceEnabled()

virtual bool jami::Call::isIceEnabled ( ) const

pure virtual

Check wether ICE is enabled for media.

Implemented in jami::SIPCall.

◆ isIncoming()

bool jami::Call::isIncoming ( ) const

inline

Tell if the call is incoming.

Returns: true if yes false otherwise

Definition at line 167 of file call.h.

References INCOMING, and type_.

Referenced by getStateStr().

◆ isSubcall()

bool jami::Call::isSubcall ( ) const

inline

Return true if this call instance is a subcall (internal call for multi-device handling)

Definition at line 334 of file call.h.

References callMutex_, jami::emitSignal(), and parent_.

Referenced by Call(), jami::Manager::callFailure(), jami::Manager::getCallList(), and jami::Manager::hasCurrentCall().

Here is the call graph for this function:

◆ merge()

void jami::Call::merge ( Call & subcall )

protectedvirtual

Replace current call data with ones from the given subcall.

Must be called while locked by subclass

Definition at line 527 of file call.cpp.

References getCallId(), getConnectionState(), getState(), JAMI_DBG, peerDisplayName_, peerNumber_, pendingInMessages_, and removeCall().

Here is the call graph for this function:

◆ monitor()

virtual void jami::Call::monitor ( ) const

pure virtual

Implemented in jami::SIPCall.

Referenced by Call(), and jami::Manager::monitor().

◆ muteMedia()

virtual void jami::Call::muteMedia	(	const std::string &	mediaType,
		bool	isMuted
	)

pure virtual

mute/unmute a media of a call

Parameters

mediaType	type of media
isMuted	true for muting, false for unmuting

Implemented in jami::SIPCall.

◆ onTextMessage()

void jami::Call::onTextMessage ( std::map< std::string, std::string > && messages )

Definition at line 367 of file call.cpp.

References callMutex_, conf_, jami::emitSignal(), getAccountId(), getCallId(), getPeerNumber(), jami::Manager::incomingMessage(), jami::Manager::instance(), parent_, pendingInMessages_, and setConferenceInfo().

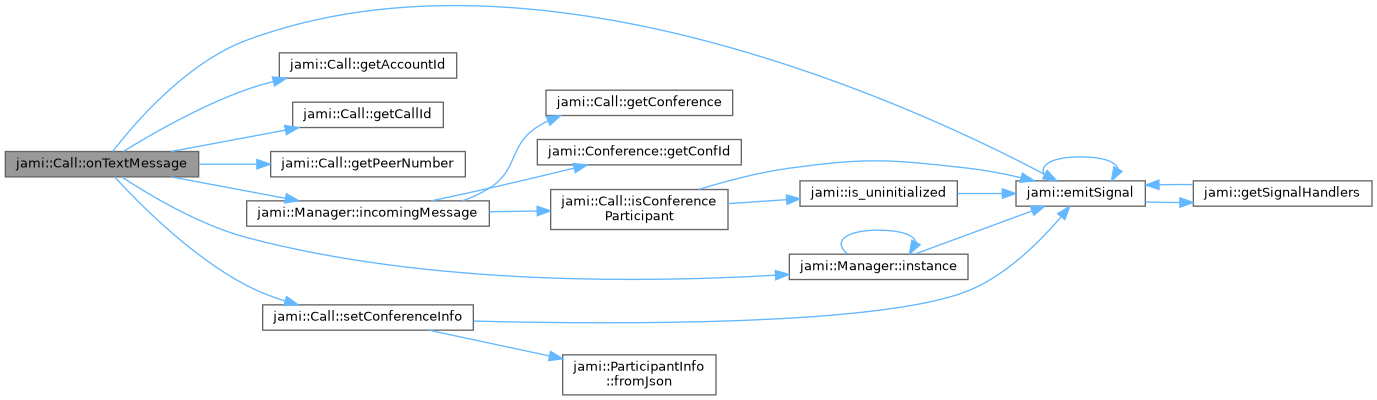

Here is the call graph for this function:

◆ peerHungup()

void jami::Call::peerHungup ( )

virtual

Peer has hung up a call.

Reimplemented in jami::SIPCall.

Definition at line 400 of file call.cpp.

References ACTIVE, DISCONNECTED, jami::emitSignal(), getState(), HOLD, and setState().

Referenced by jami::Manager::peerHungupCall().

Here is the call graph for this function:

◆ refuse()

virtual void jami::Call::refuse ( )

pure virtual

Refuse incoming call.

Implemented in jami::SIPCall.

Referenced by jami::Manager::refuseCall().

◆ removeCall()

void jami::Call::removeCall ( int code = 0 )

virtual

Parameters

code	Optional SIP response code (see RFC3261)

Reimplemented in jami::SIPCall.

Definition at line 130 of file call.cpp.

References account_, jami::Manager::callFactory, jami::emitSignal(), jami::Manager::instance(), jami::Recordable::isRecording(), OVER, parent_, jami::CallFactory::removeCall(), setState(), jami::Recordable::stopRecording(), and subcalls_.

Referenced by merge().

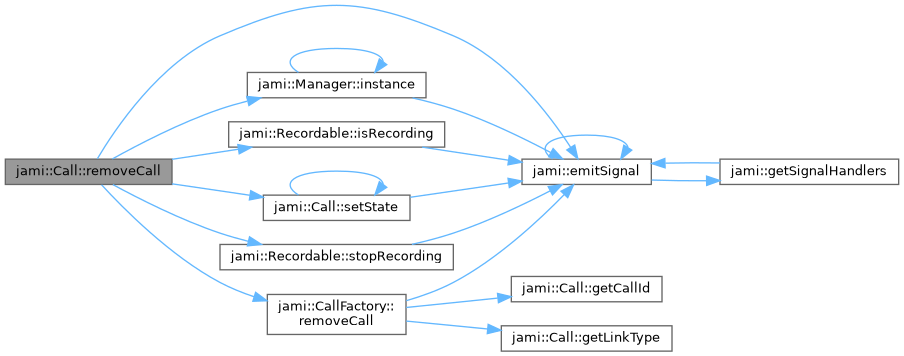

Here is the call graph for this function:

◆ requestMediaChange()

virtual bool jami::Call::requestMediaChange ( const std::vector< libjami::MediaMap > & mediaList )

pure virtual

Make a change request of the current media with the provided media.

Parameters

mediaList the new media list

Returns: true on success

Implemented in jami::SIPCall.

◆ resetConfInfo()

void jami::Call::resetConfInfo ( )

Definition at line 677 of file call.cpp.

◆ restartMediaSender()

virtual void jami::Call::restartMediaSender ( )

pure virtual

Implemented in jami::SIPCall.

◆ resume()

virtual bool jami::Call::resume ( OnReadyCb && cb )

pure virtual

Resume call from hold state.

Parameters

cb	On hold can be queued if waiting for ICE. This callback will be called when ready

Returns: bool True on success, False if failed or pending

Implemented in jami::SIPCall.

◆ sendConfInfo()

void jami::Call::sendConfInfo ( const std::string & json )

Definition at line 665 of file call.cpp.

◆ sendConfOrder()

void jami::Call::sendConfOrder ( const Json::Value & root )

Definition at line 653 of file call.cpp.

◆ sendKeyframe()

virtual void jami::Call::sendKeyframe ( int streamIdx = -1 )

pure virtual

Implemented in jami::SIPCall.

◆ sendTextMessage()

virtual void jami::Call::sendTextMessage	(	const std::map< std::string, std::string > &	messages,
		const std::string &	from
	)

pure virtual

Send a message to a call identified by its callid.

Parameters

A	list of mimetype/payload pairs
The	sender of this message (could be another participant of a conference)

Implemented in jami::SIPCall.

Referenced by jami::Manager::sendCallTextMessage().

◆ setConferenceInfo()

void jami::Call::setConferenceInfo ( const std::string & msg )

A Call can be in a conference.

If this is the case, the other side will send conference information describing the rendered image @msg A JSON object describing the conference

Definition at line 598 of file call.cpp.

References jami::emitSignal(), jami::ParticipantInfo::fromJson(), jami::ConfInfo::h, jami::ConfInfo::v, and jami::ConfInfo::w.

Referenced by onTextMessage().

Here is the call graph for this function:

◆ setIPToIP()

void jami::Call::setIPToIP ( bool IPToIP )

inline

Definition at line 208 of file call.h.

References jami::emitSignal(), and isIPToIP_.

Here is the call graph for this function:

◆ setPeerDisplayName()

void jami::Call::setPeerDisplayName ( const std::string & name )

inline

Set the display name (caller in ingoing) not protected by mutex (when created)

Returns: std::string The peer display name

Definition at line 143 of file call.h.

References peerDisplayName_.

◆ setPeerNumber()

void jami::Call::setPeerNumber ( const std::string & number )

inline

Set the peer number (destination on outgoing) not protected by mutex (when created)

Parameters

number peer number

Definition at line 130 of file call.h.

References jami::emitSignal(), and peerNumber_.

Here is the call graph for this function:

◆ setState() [1/3]

bool jami::Call::setState	(	CallState	call_state,
		ConnectionState	cnx_state,
		signed	code = `0`
	)

Set the state of the call (protected by mutex)

Parameters

call_state	The call state
cnx_state	The call connection state
code	Optional SIP response code (see RFC3261)

Returns: true if the requested state change was valid, false otherwise

Definition at line 223 of file call.cpp.

References callMutex_, callState_, connectionState_, jami::emitSignal(), getAccountId(), getStateStr(), id_, JAMI_DBG, JAMI_ERR, and parent_.

Here is the call graph for this function:

◆ setState() [2/3]

bool jami::Call::setState	(	CallState	call_state,
		signed	code = `0`
	)

Set the state of the call (protected by mutex)

Parameters

call_state	The call state
code	Optional SIP response code (see RFC3261)

Returns: true if the requested state change was valid, false otherwise

Definition at line 270 of file call.cpp.

References callMutex_, connectionState_, jami::emitSignal(), and setState().

Referenced by peerHungup(), removeCall(), setState(), and setState().

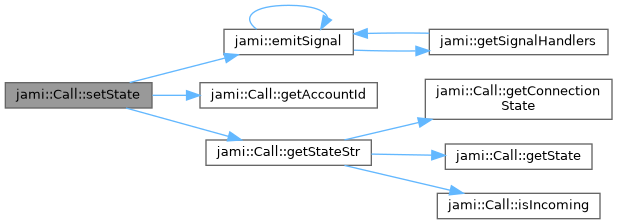

Here is the call graph for this function:

◆ setState() [3/3]

bool jami::Call::setState	(	ConnectionState	cnx_state,
		signed	code = `0`
	)

Set the state of the call (protected by mutex)

Parameters

cnx_state	The call connection state
code	Optional SIP response code (see RFC3261)

Returns: true if the requested state change was valid, false otherwise

Definition at line 277 of file call.cpp.

References callMutex_, callState_, jami::emitSignal(), and setState().

Here is the call graph for this function:

◆ switchInput()

virtual void jami::Call::switchInput ( const std::string & = {} )

inlinevirtual

Reimplemented in jami::SIPCall.

Definition at line 368 of file call.h.

◆ toggleRecording()

bool jami::Call::toggleRecording ( )

virtual

This method must be implemented for this interface as calls and conferences have different behavior.

Implementations must call the super method.

Reimplemented from jami::Recordable.

Reimplemented in jami::SIPCall.

Definition at line 341 of file call.cpp.

References jami::Recordable::startRecording(), and jami::Recordable::toggleRecording().

Referenced by jami::Manager::acceptCall(), and jami::Manager::peerAnsweredCall().

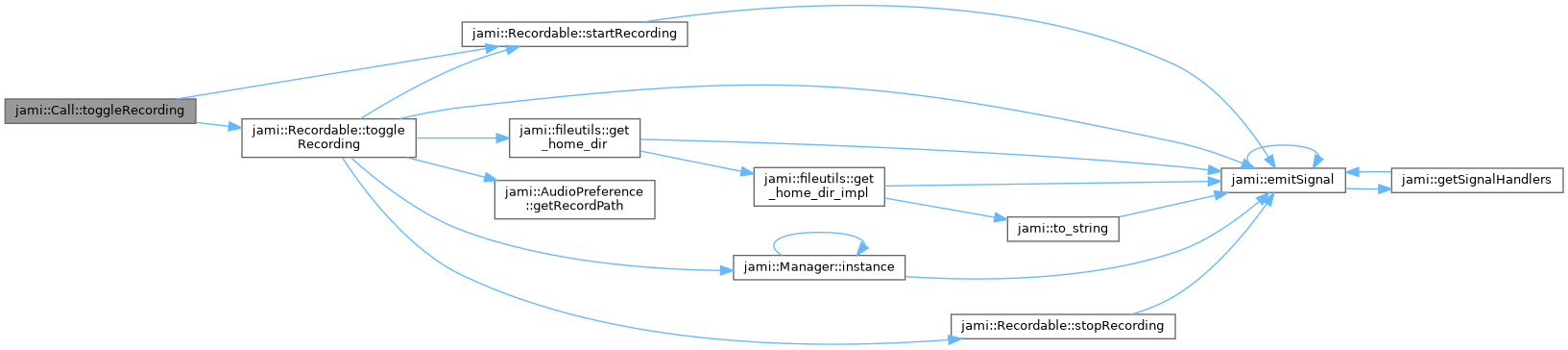

Here is the call graph for this function:

◆ toUsername() [1/2]

const std::string & jami::Call::toUsername ( ) const

inline

Get "To" from the invite.

Note: Used to make the difference between incoming calls for accounts and for conversations

Returns: the "To" that was present in the invite

Definition at line 150 of file call.h.

References toUsername_.

Referenced by Call(), and getDetails().

◆ toUsername() [2/2]

void jami::Call::toUsername ( const std::string & username )

inline

Updated by sipvoiplink, corresponds to the "To" in the invite.

Parameters

username "To"

Definition at line 155 of file call.h.

References toUsername_.

◆ transfer()

virtual void jami::Call::transfer ( const std::string & to )

pure virtual

Transfer a call to specified URI.

Parameters

to	The recipient of the call

Implemented in jami::SIPCall.

Referenced by jami::Manager::transferCall().

◆ updateRecState()

virtual void jami::Call::updateRecState ( bool state )

pure virtual

Update recording state.

Typically used to send notifications to peers about the local recording session state

Implemented in jami::SIPCall.

Member Data Documentation

◆ account_

std::weak_ptr<Account> jami::Call::account_

protected

Associate account ID.

Definition at line 494 of file call.h.

Referenced by getAccount(), getAccountId(), and removeCall().

◆ audioGuard

std::unique_ptr<AudioDeviceGuard> jami::Call::audioGuard

Definition at line 430 of file call.h.

Referenced by jami::Manager::addAudio().

◆ callMutex_

std::recursive_mutex jami::Call::callMutex_ {}

mutableprotected

Protect every attribute that can be changed by two threads.

Definition at line 467 of file call.h.

Referenced by addStateListener(), addSubCall(), getConnectionState(), getState(), isSubcall(), onTextMessage(), setState(), setState(), setState(), and jami::SIPCall::~SIPCall().

◆ callState_

CallState jami::Call::callState_ {CallState::INACTIVE}

protected

Inactive/Active/Hold/Busy/Error.

Definition at line 500 of file call.h.

Referenced by addSubCall(), getState(), setState(), and setState().

◆ conf_

std::weak_ptr<Conference> jami::Call::conf_ {}

protected

Unique conference ID, used exclusively in case of a conference.

Definition at line 488 of file call.h.

Referenced by getConference(), getDetails(), isConferenceParticipant(), and onTextMessage().

◆ confInfo_

ConfInfo jami::Call::confInfo_ {}

mutableprotected

Definition at line 470 of file call.h.

Referenced by getConferenceInfos().

◆ confInfoMutex_

std::mutex jami::Call::confInfoMutex_ {}

mutableprotected

Definition at line 469 of file call.h.

◆ connectionState_

ConnectionState jami::Call::connectionState_ {ConnectionState::DISCONNECTED}

protected

Disconnected/Progressing/Trying/Ringing/Connected.

Definition at line 497 of file call.h.

Referenced by addSubCall(), getConnectionState(), setState(), and setState().

◆ duration_start_

time_point jami::Call::duration_start_ {time_point::min()}

protected

Definition at line 471 of file call.h.

Referenced by Call(), and getCallDuration().

◆ id_

const std::string jami::Call::id_ {}

protected

MultiDevice: parent call, nullptr otherwise. Access protected by callMutex_.

Definition at line 453 of file call.h.

Referenced by getCallId(), and setState().

◆ isIPToIP_

bool jami::Call::isIPToIP_ {false}

protected

Direct IP-to-IP or classic call.

Definition at line 505 of file call.h.

Referenced by setIPToIP().

◆ parent_

std::shared_ptr<Call> jami::Call::parent_

mutableprotected

MultiDevice: list of attached subcall.

Definition at line 456 of file call.h.

Referenced by isSubcall(), onTextMessage(), removeCall(), and setState().

◆ peerConfProtocol_

int jami::Call::peerConfProtocol_ {0}

protected

Supported conference protocol version.

Definition at line 519 of file call.h.

Referenced by conferenceProtocolVersion().

◆ peerDisplayName_

std::string jami::Call::peerDisplayName_ {}

protected

Peer Display Name.

Definition at line 511 of file call.h.

Referenced by getDetails(), getPeerDisplayName(), merge(), and setPeerDisplayName().

◆ peerNumber_

std::string jami::Call::peerNumber_ {}

protected

Number of the peer.

Definition at line 508 of file call.h.

Referenced by getDetails(), getPeerNumber(), merge(), and setPeerNumber().

◆ pendingInMessages_

MsgList jami::Call::pendingInMessages_

protected

Definition at line 516 of file call.h.

Referenced by merge(), and onTextMessage().

◆ pendingOutMessages_

MsgList jami::Call::pendingOutMessages_

protected

Definition at line 464 of file call.h.

Referenced by addSubCall().

◆ reason_

std::string jami::Call::reason_ {}

protected

Definition at line 502 of file call.h.

Referenced by Call().

◆ subcalls_

SubcallSet jami::Call::subcalls_

protected

Definition at line 459 of file call.h.

Referenced by addSubCall(), and removeCall().

◆ timeoutTimer_

asio::steady_timer jami::Call::timeoutTimer_

protected

Definition at line 522 of file call.h.

Referenced by Call().

◆ timestamp_start_

time_t jami::Call::timestamp_start_ {0}

protected

MultiDevice: message received by subcall to merged yet.

Definition at line 513 of file call.h.

Referenced by Call(), and getDetails().

◆ toUsername_

std::string jami::Call::toUsername_ {}

protected

Definition at line 520 of file call.h.

Referenced by toUsername(), and toUsername().

◆ type_

CallType jami::Call::type_

protected

Type of the call.

Definition at line 491 of file call.h.

Referenced by Call(), getCallType(), getDetails(), isIncoming(), and jami::SIPCall::SIPCall().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ clock

◆ MsgList

◆ OnReadyCb

◆ StateListenerCb

◆ SubcallSet

◆ time_point

Member Enumeration Documentation

◆ CallState

◆ CallType

◆ ConnectionState

◆ LinkType

Constructor & Destructor Documentation

◆ ~Call()

◆ Call()

Member Function Documentation

◆ addStateListener()

◆ addSubCall()

◆ answer()

◆ answerMediaChangeRequest()

◆ attendedTransfer()

◆ carryingDTMFdigits()

◆ checkMediaChangeRequest()

◆ conferenceProtocolVersion()

◆ currentMediaList()

◆ enterConference()

◆ exitConference()

◆ getAccount()

◆ getAccountId()

◆ getAudioCodec()

◆ getAudioStreams()

◆ getCallDuration()

◆ getCallId()

◆ getCallType()

◆ getConference()

◆ getConferenceInfos()

◆ getConnectionState()

◆ getDetails()

◆ getLinkType()

◆ getMediaAttributeList()

◆ getPeerDisplayName()

◆ getPeerNumber()

◆ getRemoteAudioStreams()

◆ getState()

◆ getStateStr()

◆ getVideoCodec()

◆ handleMediaChangeRequest()

◆ hangup()

◆ hasVideo()

◆ hold()

◆ isCaptureDeviceMuted()

◆ isConferenceParticipant()

◆ isIceEnabled()

◆ isIncoming()

◆ isSubcall()

◆ merge()

◆ monitor()

◆ muteMedia()

◆ onTextMessage()

◆ peerHungup()

◆ refuse()

◆ removeCall()

◆ requestMediaChange()

◆ resetConfInfo()

◆ restartMediaSender()

◆ resume()

◆ sendConfInfo()

◆ sendConfOrder()

◆ sendKeyframe()

◆ sendTextMessage()

◆ setConferenceInfo()

◆ setIPToIP()

◆ setPeerDisplayName()
