jami::im Namespace Reference

Classes
struct	InstantMessageException
class	MessageEngine

Typedefs
using	MessageToken = uint64_t

Enumerations
enum class	MessageStatus {   UNKNOWN =0 , IDLE , SENDING , SENT ,   FAILURE }

Functions
void	fillPJSIPMessageBody (pjsip_tx_data &tdata, const std::map< std::string, std::string > &payloads)
std::map< std::string, std::string >	parseSipMessage (const pjsip_msg *msg)
	Parses given SIP message into a map where the key is the contents of the Content-Type header (along with any parameters) and the value is the message payload.
void	sendSipMessage (pjsip_inv_session *session, const std::map< std::string, std::string > &payloads)
	Constructs and sends a SIP message.

Typedef Documentation

MessageToken

using jami::im::MessageToken = typedef uint64_t

Definition at line 36 of file message_engine.h.

Enumeration Type Documentation

MessageStatus

enum class jami::im::MessageStatus

strong

Enumerator
UNKNOWN
IDLE
SENDING
SENT
FAILURE

Definition at line 38 of file message_engine.h.

Function Documentation

fillPJSIPMessageBody()

void jami::im::fillPJSIPMessageBody	(	pjsip_tx_data &	tdata,
		const std::map< std::string, std::string > &	payloads
	)

Definition at line 105 of file instant_messaging.cpp.

References jami::createMessageBody(), jami::emitSignal(), JAMI_ERR, and jami::sip_utils::sip_strerror().

Referenced by sendSipMessage().

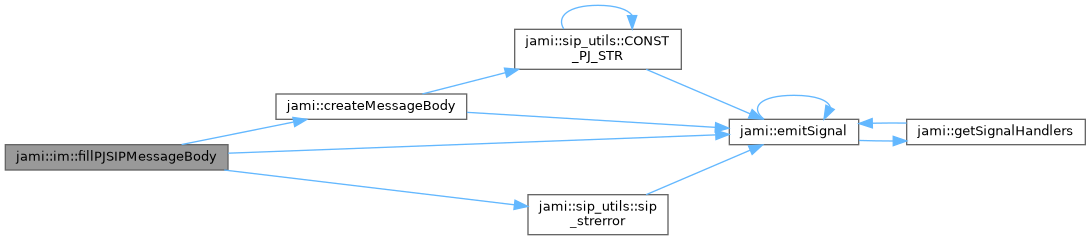

Here is the call graph for this function:

parseSipMessage()

std::map< std::string, std::string > jami::im::parseSipMessage

(

const pjsip_msg *

msg

)

Parses given SIP message into a map where the key is the contents of the Content-Type header (along with any parameters) and the value is the message payload.

Parameters

msg	received SIP message

Returns

map of content types and message payloads

Definition at line 204 of file instant_messaging.cpp.

References jami::emitSignal(), JAMI_WARN, and jami::parseMessageBody().

Referenced by jami::transaction_request_cb(), and jami::transaction_state_changed_cb().

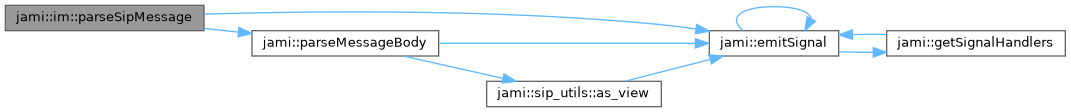

Here is the call graph for this function:

sendSipMessage()

void jami::im::sendSipMessage	(	pjsip_inv_session *	session,
		const std::map< std::string, std::string > &	payloads
	)

Constructs and sends a SIP message.

The expected format of the map key is: type/subtype[; *[; arg=value]] eg: "text/plain; id=1234;part=2;of=1001" note: all whitespace is optional

If the map contains more than one pair, then a multipart/mixed message type will be created containing multiple message parts. Note that all of the message parts must be able to fit into one message... they will not be split into multiple messages.

Parameters

session	SIP session
payloads	a map where the mime type and optional parameters are the key and the message payload is the value

Exception: throw InstantMessageException if no message sent

Definition at line 139 of file instant_messaging.cpp.

References jami::emitSignal(), fillPJSIPMessageBody(), JAMI_ERR, JAMI_WARN, jami::sip_utils::SIP_METHODS::MESSAGE, and jami::sip_utils::sip_strerror().

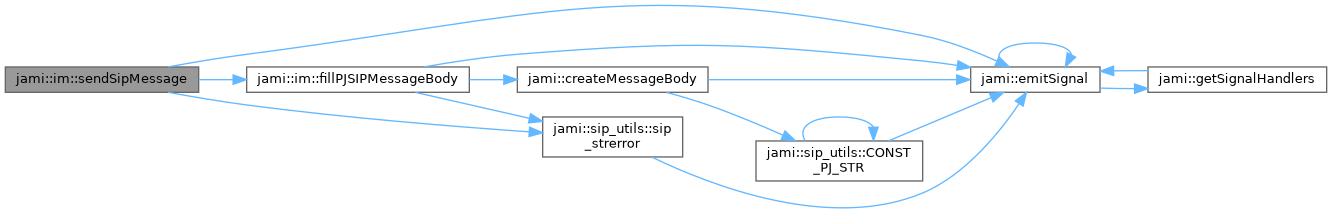

Here is the call graph for this function:
