jami::SIPVoIPLink Class Reference

#include <sipvoiplink.h>

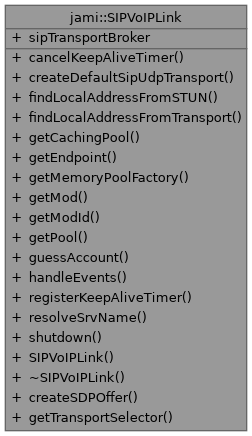

Collaboration diagram for jami::SIPVoIPLink:
Collaboration graph

Public Types

typedef std::function< void(std::vector< dhtnet::IpAddr >)> SrvResolveCallback


Public Member Functions

void cancelKeepAliveTimer (pj_timer_entry &timer)
 Abort currently registered timer.

void createDefaultSipUdpTransport ()
 Create the default UDP transport according ot Ip2Ip profile settings.

bool findLocalAddressFromSTUN (pjsip_transport *transport, pj_str_t *stunServerName, int stunPort, std::string &address, pj_uint16_t &port) const

void findLocalAddressFromTransport (pjsip_transport *transport, pjsip_transport_type_e transportType, const std::string &host, std::string &address, pj_uint16_t &port) const
 Get the correct address to use (ie advertised) from a uri.

pj_caching_pool * getCachingPool () noexcept

pjsip_endpoint * getEndpoint ()

pj_caching_pool * getMemoryPoolFactory ()
 Get the memory pool factory since each calls has its own memory pool.

pjsip_module * getMod ()

int getModId ()

pj_pool_t * getPool () noexcept

std::shared_ptr< SIPAccountBase > guessAccount (std::string_view userName, std::string_view server, std::string_view fromUri) const
 Guess the account related to an incoming SIP call.

void handleEvents ()
 Event listener.

void registerKeepAliveTimer (pj_timer_entry &timer, pj_time_val &delay)
 Register a new keepalive registration timer to this endpoint.

void resolveSrvName (const std::string &name, pjsip_transport_type_e type, SrvResolveCallback &&cb)

void shutdown ()
 Destroy structures.

 SIPVoIPLink ()

 ~SIPVoIPLink ()


Static Public Member Functions

static void createSDPOffer (pjsip_inv_session *inv)

static pjsip_tpselector getTransportSelector (pjsip_transport *transport)
 Initialize the transport selector.


Public Attributes

std::unique_ptr< SipTransportBroker > sipTransportBroker
 Instance that maintain and manage transport (UDP, TLS)


Friends

class SIPTest


Detailed Description

Definition at line 57 of file sipvoiplink.h.

Member Typedef Documentation

◆ SrvResolveCallback

typedef std::function<void(std::vector<dhtnet::IpAddr>)> jami::SIPVoIPLink::SrvResolveCallback

Definition at line 101 of file sipvoiplink.h.

Constructor & Destructor Documentation

◆ SIPVoIPLink()

jami::SIPVoIPLink::SIPVoIPLink ( )

Definition at line 611 of file sipvoiplink.cpp.

References jami::sip_utils::CONST_PJ_STR(), jami::emitSignal(), jami::endpt_, handleEvents(), jami::sip_utils::SIP_METHODS::INFO, jami::invite_session_state_changed_cb(), JAMI_DBG, JAMI_ERR, JAMI_WARN, jami::sip_utils::SIP_METHODS::MESSAGE, jami::PresSubServer::mod_presence_server, jami::mod_ua_, jami::on_rx_offer2(), jami::sip_utils::SIP_METHODS::OPTIONS, jami::outgoing_request_forked_cb(), jami::sip_utils::SIP_METHODS::PUBLISH, jami::reinvite_received_cb(), jami::sdp_create_offer_cb(), jami::sdp_media_update_cb(), jami::sip_utils::sip_strerror(), sipTransportBroker, jami::tp_state_callback(), jami::transaction_request_cb(), jami::transaction_response_cb(), jami::transaction_state_changed_cb(), and TRY.

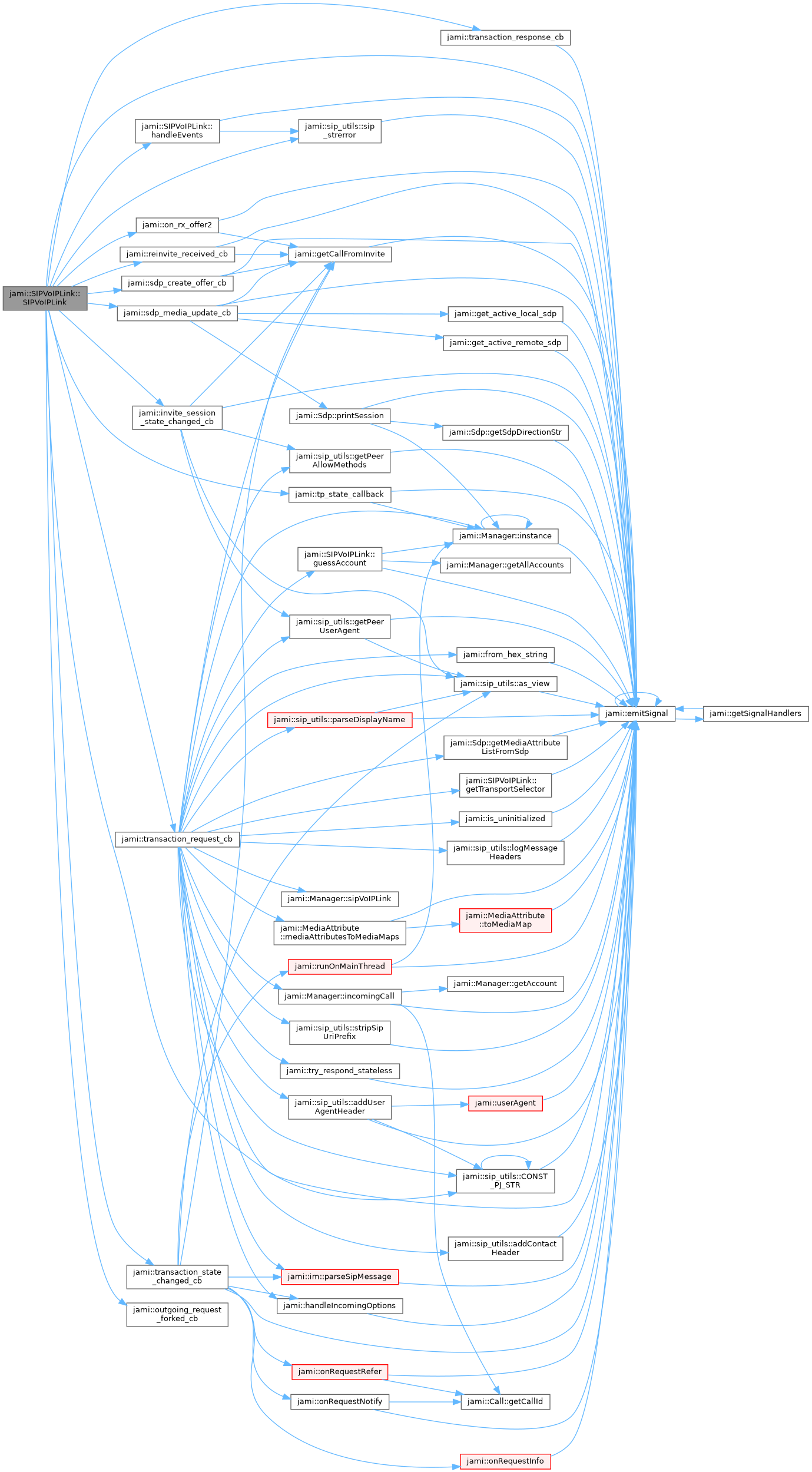

Here is the call graph for this function:

◆ ~SIPVoIPLink()

jami::SIPVoIPLink::~SIPVoIPLink ( )

Definition at line 739 of file sipvoiplink.cpp.

Member Function Documentation

◆ cancelKeepAliveTimer()

void jami::SIPVoIPLink::cancelKeepAliveTimer ( pj_timer_entry &  timer)

Abort currently registered timer.

Definition at line 836 of file sipvoiplink.cpp.

References jami::emitSignal(), and jami::endpt_.

Here is the call graph for this function:

◆ createDefaultSipUdpTransport()

void jami::SIPVoIPLink::createDefaultSipUdpTransport ( )

Create the default UDP transport according ot Ip2Ip profile settings.

◆ createSDPOffer()

void jami::SIPVoIPLink::createSDPOffer ( pjsip_inv_session *  inv)
static

Definition at line 1435 of file sipvoiplink.cpp.

References jami::emitSignal(), and jami::sdp_create_offer_cb().

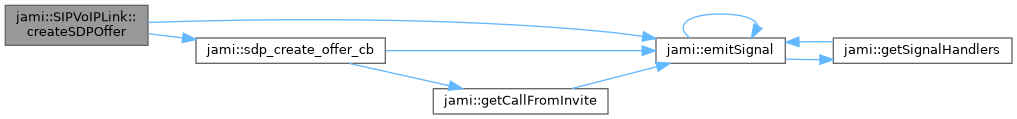

Here is the call graph for this function:

◆ findLocalAddressFromSTUN()

bool jami::SIPVoIPLink::findLocalAddressFromSTUN ( pjsip_transport *  transport,
pj_str_t *  stunServerName,
int  stunPort,
std::string &  address,
pj_uint16_t &  port
) const

Definition at line 1604 of file sipvoiplink.cpp.

References jami::sip_utils::as_view(), jami::sip_utils::DEFAULT_SIP_PORT, jami::emitSignal(), JAMI_DBG, JAMI_DEBUG, JAMI_ERR, JAMI_ERROR, JAMI_WARN, JAMI_WARNING, and RETURN_FALSE_IF_NULL.

Here is the call graph for this function:

◆ findLocalAddressFromTransport()

void jami::SIPVoIPLink::findLocalAddressFromTransport ( pjsip_transport *  transport,
pjsip_transport_type_e  transportType,
const std::string &  host,
std::string &  address,
pj_uint16_t &  port
) const

Get the correct address to use (ie advertised) from a uri.

The corresponding transport that should be used with that uri will be discovered.

Parameters
uriThe uri from which we want to discover the address to use
transportThe transport to use to discover the address

Definition at line 1559 of file sipvoiplink.cpp.

References jami::sip_utils::as_view(), jami::emitSignal(), jami::endpt_, getTransportSelector(), JAMI_WARN, and RETURN_IF_NULL.

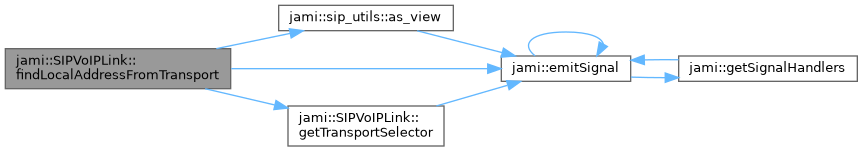

Here is the call graph for this function:

◆ getCachingPool()

pj_caching_pool * jami::SIPVoIPLink::getCachingPool ( )
noexcept

Definition at line 606 of file sipvoiplink.cpp.

◆ getEndpoint()

pjsip_endpoint * jami::SIPVoIPLink::getEndpoint ( )

Definition at line 588 of file sipvoiplink.cpp.

References jami::endpt_.

◆ getMemoryPoolFactory()

pj_caching_pool * jami::SIPVoIPLink::getMemoryPoolFactory ( )

Get the memory pool factory since each calls has its own memory pool.

◆ getMod()

pjsip_module * jami::SIPVoIPLink::getMod ( )

Definition at line 594 of file sipvoiplink.cpp.

References jami::mod_ua_.

◆ getModId()

int jami::SIPVoIPLink::getModId ( )

Definition at line 1429 of file sipvoiplink.cpp.

References jami::mod_ua_.

Referenced by jami::SIPPresence::getModId().

◆ getPool()

pj_pool_t * jami::SIPVoIPLink::getPool ( )
noexcept

Definition at line 600 of file sipvoiplink.cpp.

◆ getTransportSelector()

static pjsip_tpselector jami::SIPVoIPLink::getTransportSelector ( pjsip_transport *  transport)
inlinestatic

Initialize the transport selector.

Parameters
transportA transport associated with an account
Returns
A transport selector structure

Definition at line 145 of file sipvoiplink.h.

References jami::emitSignal().

Referenced by findLocalAddressFromTransport(), and jami::transaction_request_cb().

Here is the call graph for this function:

◆ guessAccount()

std::shared_ptr< SIPAccountBase > jami::SIPVoIPLink::guessAccount ( std::string_view  userName,
std::string_view  server,
std::string_view  fromUri
) const

Guess the account related to an incoming SIP call.

Definition at line 766 of file sipvoiplink.cpp.

References jami::emitSignal(), jami::FULL, jami::Manager::getAllAccounts(), jami::Manager::instance(), JAMI_LOG, and jami::NONE.

Referenced by jami::transaction_request_cb().

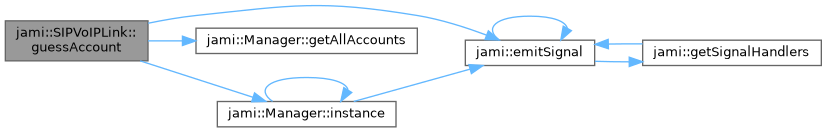

Here is the call graph for this function:

◆ handleEvents()

void jami::SIPVoIPLink::handleEvents ( )

Event listener.

Each event send by the call manager is received and handled from here

Definition at line 801 of file sipvoiplink.cpp.

References jami::emitSignal(), jami::endpt_, JAMI_ERR, and jami::sip_utils::sip_strerror().

Referenced by SIPVoIPLink().

Here is the call graph for this function:

◆ registerKeepAliveTimer()

void jami::SIPVoIPLink::registerKeepAliveTimer ( pj_timer_entry &  timer,
pj_time_val &  delay
)

Register a new keepalive registration timer to this endpoint.

Definition at line 810 of file sipvoiplink.cpp.

References jami::emitSignal(), jami::endpt_, JAMI_DEBUG, JAMI_ERR, and JAMI_WARN.

Here is the call graph for this function:

◆ resolveSrvName()

void jami::SIPVoIPLink::resolveSrvName ( const std::string &  name,
pjsip_transport_type_e  type,
SrvResolveCallback &&  cb
)

Definition at line 1484 of file sipvoiplink.cpp.

References jami::emitSignal(), jami::endpt_, jami::getResolveCallbackMap(), JAMI_DBG, JAMI_ERR, JAMI_WARN, jami::SafeResolveCallbackMap::registerCallback(), jami::resolver_callback(), and jami::runOnMainThread().

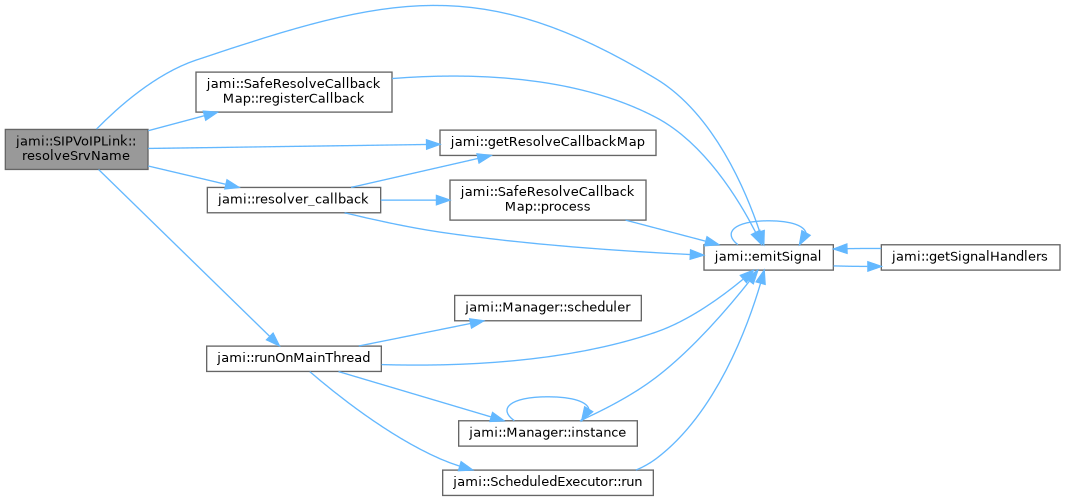

Here is the call graph for this function:

◆ shutdown()

void jami::SIPVoIPLink::shutdown ( )

Destroy structures.

Definition at line 742 of file sipvoiplink.cpp.

References jami::emitSignal(), jami::endpt_, jami::Manager::instance(), JAMI_DBG, JAMI_ERR, jami::Call::SIP, and sipTransportBroker.

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ SIPTest

friend class SIPTest
friend

Definition at line 161 of file sipvoiplink.h.

Member Data Documentation

◆ sipTransportBroker

std::unique_ptr<SipTransportBroker> jami::SIPVoIPLink::sipTransportBroker

Instance that maintain and manage transport (UDP, TLS)

Definition at line 99 of file sipvoiplink.h.

Referenced by jami::SIPAccount::newOutgoingCall(), shutdown(), SIPVoIPLink(), and jami::transaction_request_cb().

The documentation for this class was generated from the following files:
