#include <conference.h>

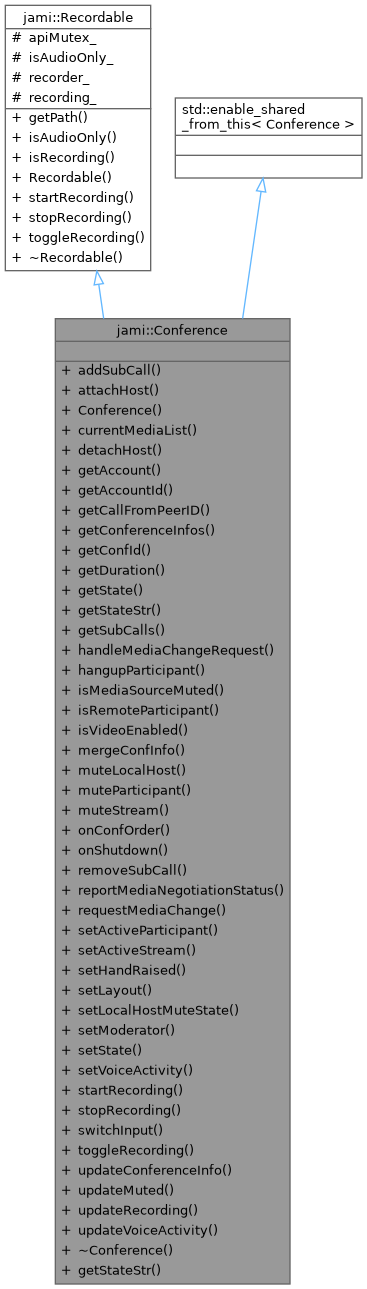

Inheritance diagram for jami::Conference:

Collaboration diagram for jami::Conference:

Public Types
enum class	State : uint8_t { ACTIVE_ATTACHED , ACTIVE_DETACHED , HOLD }

Public Member Functions
void	addSubCall (const std::string &callId)
	Add a new subcall to the conference.

void	attachHost (const std::vector< libjami::MediaMap > &mediaList)
	Attach host.

	Conference (const std::shared_ptr< Account > &, const std::string &confId="")
	Constructor for this class, increment static counter.

std::vector< libjami::MediaMap >	currentMediaList () const
	Retrieve current medias list.

void	detachHost ()
	Detach local audio/video from the conference.

std::shared_ptr< Account >	getAccount () const

std::string	getAccountId () const

std::shared_ptr< Call >	getCallFromPeerID (std::string_view peerId)

std::vector< std::map< std::string, std::string > >	getConferenceInfos () const

const std::string &	getConfId () const
	Return the conference id.

std::chrono::milliseconds	getDuration () const

std::vector< libjami::MediaMap >	getLastMediaList () const
	Return the last media list before the host was detached.

State	getState () const
	Return the current conference state.

const char *	getStateStr () const

CallIdSet	getSubCalls () const
	Get the participant list for this conference.

void	handleMediaChangeRequest (const std::shared_ptr< Call > &call, const std::vector< libjami::MediaMap > &remoteMediaList)
	Process incoming media change request.

void	hangupParticipant (const std::string &accountUri, const std::string &deviceId="")

bool	isMediaSourceMuted (MediaType type) const
	Get the mute state of the local host.

bool	isRemoteParticipant (const std::string &uri)

bool	isVideoEnabled () const

void	mergeConfInfo (ConfInfo &newInfo, const std::string &peerURI)

void	muteLocalHost (bool is_muted, const std::string &mediaType)

void	muteParticipant (const std::string &uri, const bool &state)

void	muteStream (const std::string &accountUri, const std::string &deviceId, const std::string &streamId, const bool &state)
	The client shows one tile per stream (video/audio related to a media)

void	onConfOrder (const std::string &callId, const std::string &order)

void	onShutdown (std::function< void(int)> cb)
	Set a callback that will be called when the conference will be destroyed.

void	removeSubCall (const std::string &callId)
	Remove a subcall from the conference.

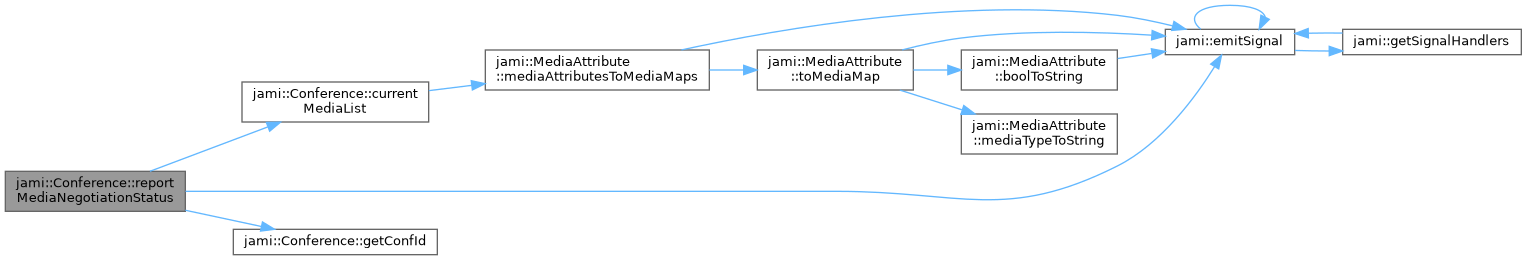

void	reportMediaNegotiationStatus ()
	Announce to the client that medias are successfully negotiated.

bool	requestMediaChange (const std::vector< libjami::MediaMap > &mediaList)
	Process a media change request.

void	setActiveParticipant (const std::string &participant_id)

void	setActiveStream (const std::string &streamId, bool state)

void	setHandRaised (const std::string &uri, const bool &state)

void	setLayout (int layout)

void	setLocalHostMuteState (MediaType type, bool muted)
	Set the mute state of the local host.

void	setModerator (const std::string &uri, const bool &state)

void	setState (State state)
	Set conference state.

void	setVoiceActivity (const std::string &streamId, const bool &newState)

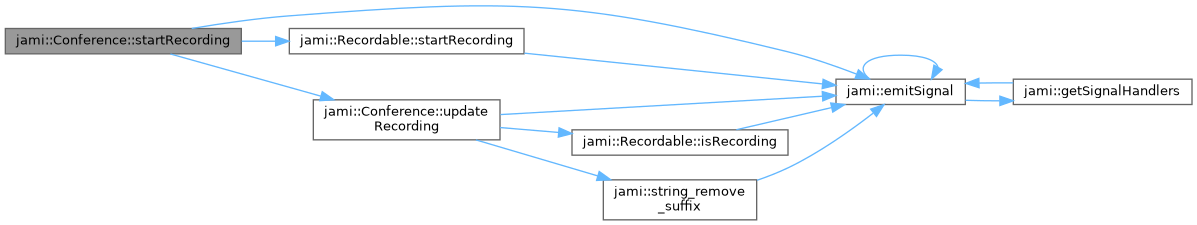

bool	startRecording (const std::string &path) override
	Start recording.

void	stopRecording () override
	Stop recording.

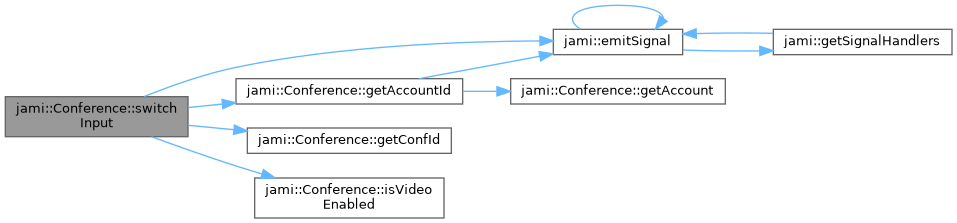

void	switchInput (const std::string &input)

bool	toggleRecording () override
	Start/stop recording toggle.

void	updateConferenceInfo (ConfInfo confInfo)

void	updateMuted ()

void	updateRecording ()

void	updateVoiceActivity ()

	~Conference ()
	Destructor for this class, decrement static counter.

Public Member Functions inherited from jami::Recordable
virtual std::string	getPath () const
	Return the file path for this recording.

bool	isAudioOnly () const

bool	isRecording () const
	Return recording state (true/false)

	Recordable ()

virtual	~Recordable ()

Static Public Member Functions
static constexpr const char *	getStateStr (State state)
	Return a string description of the conference state.

Additional Inherited Members
Protected Attributes inherited from jami::Recordable
std::mutex	apiMutex_

bool	isAudioOnly_ {false}

std::shared_ptr< MediaRecorder >	recorder_

bool	recording_ {false}

Detailed Description

Definition at line 183 of file conference.h.

Member Enumeration Documentation

◆ State

enum class jami::Conference::State : uint8_t

strong

Enumerator
ACTIVE_ATTACHED
ACTIVE_DETACHED
HOLD

Definition at line 186 of file conference.h.

Constructor & Destructor Documentation

◆ Conference()

jami::Conference::Conference	(	const std::shared_ptr< Account > &	account,
		const std::string &	confId = `""`
	)

explicit

Constructor for this class, increment static counter.

Definition at line 50 of file conference.cpp.

References jami::emitSignal(), JAMI_LOG, and jami_tracepoint.

Here is the call graph for this function:

◆ ~Conference()

jami::Conference::~Conference ( )

Destructor for this class, decrement static counter.

Definition at line 247 of file conference.cpp.

References jami::closeMediaPlayer(), jami::emitSignal(), getConfId(), getDuration(), jami::Manager::getVideoManager(), jami::Manager::instance(), jami::Recordable::isRecording(), JAMI_DEBUG, JAMI_LOG, jami_tracepoint, and toggleRecording().

Here is the call graph for this function:

Member Function Documentation

◆ addSubCall()

void jami::Conference::addSubCall ( const std::string & callId )

Add a new subcall to the conference.

Definition at line 739 of file conference.cpp.

References jami::sip_utils::DEFAULT_AUDIO_STREAMID, jami::emitSignal(), jami::Manager::getAllAccounts(), getConfId(), jami::MediaAttribute::hasMediaType(), jami::Manager::instance(), jami::Recordable::isRecording(), JAMI_DEBUG, JAMI_ERROR, jami_tracepoint, jami::MEDIA_VIDEO, jami::sip_utils::streamId(), and toggleRecording().

Referenced by jami::Manager::createConfFromParticipantList().

Here is the call graph for this function:

◆ attachHost()

void jami::Conference::attachHost ( const std::vector< libjami::MediaMap > & mediaList )

Attach host.

Definition at line 1039 of file conference.cpp.

References ACTIVE_ATTACHED, ACTIVE_DETACHED, jami::sip_utils::DEFAULT_AUDIO_STREAMID, jami::emitSignal(), getState(), getStateStr(), JAMI_DEBUG, JAMI_WARNING, jami::MEDIA_VIDEO, requestMediaChange(), setState(), and jami::sip_utils::streamId().

Referenced by jami::Manager::ManagerPimpl::addMainParticipant(), and jami::Manager::createConfFromParticipantList().

Here is the call graph for this function:

◆ currentMediaList()

std::vector< std::map< std::string, std::string > > jami::Conference::currentMediaList ( ) const

Retrieve current medias list.

Returns: current medias

Definition at line 354 of file conference.cpp.

References jami::MediaAttribute::mediaAttributesToMediaMaps().

Referenced by detachHost(), handleMediaChangeRequest(), and reportMediaNegotiationStatus().

Here is the call graph for this function:

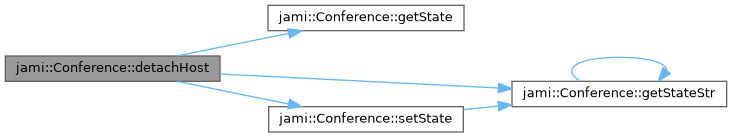

◆ detachHost()

void jami::Conference::detachHost ( )

Detach local audio/video from the conference.

Definition at line 1075 of file conference.cpp.

References ACTIVE_ATTACHED, ACTIVE_DETACHED, currentMediaList(), getState(), getStateStr(), JAMI_LOG, JAMI_WARNING, and setState().

Referenced by jami::Manager::ManagerPimpl::hangupConference(), and jami::Manager::holdConference().

Here is the call graph for this function:

◆ getAccount()

std::shared_ptr< Account > jami::Conference::getAccount ( ) const

inline

Definition at line 203 of file conference.h.

Referenced by getAccountId(), and jami::Manager::ManagerPimpl::hangupConference().

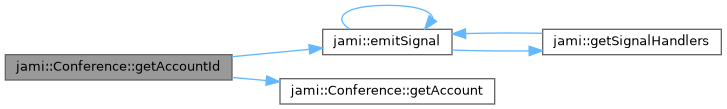

◆ getAccountId()

std::string jami::Conference::getAccountId ( ) const

Definition at line 1125 of file conference.cpp.

References jami::emitSignal(), and getAccount().

Referenced by jami::Manager::ManagerPimpl::addMainParticipant(), and switchInput().

Here is the call graph for this function:

◆ getCallFromPeerID()

std::shared_ptr< Call > jami::Conference::getCallFromPeerID ( std::string_view peerId )

Definition at line 1809 of file conference.cpp.

References jami::emitSignal(), and getSubCalls().

Referenced by hangupParticipant(), muteParticipant(), and setActiveParticipant().

Here is the call graph for this function:

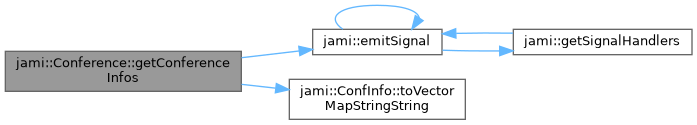

◆ getConferenceInfos()

std::vector< std::map< std::string, std::string > > jami::Conference::getConferenceInfos ( ) const

inline

Definition at line 314 of file conference.h.

References jami::emitSignal(), and jami::ConfInfo::toVectorMapStringString().

Here is the call graph for this function:

◆ getConfId()

const std::string & jami::Conference::getConfId ( ) const

inline

Return the conference id.

Definition at line 201 of file conference.h.

Referenced by jami::Manager::acceptCall(), jami::Manager::ManagerPimpl::addMainParticipant(), jami::Manager::addSubCall(), addSubCall(), jami::Manager::createConfFromParticipantList(), handleMediaChangeRequest(), jami::Manager::ManagerPimpl::hangupConference(), jami::Manager::holdConference(), jami::Manager::incomingMessage(), reportMediaNegotiationStatus(), requestMediaChange(), jami::Manager::resumeCall(), jami::Manager::resumeConference(), switchInput(), and ~Conference().

◆ getDuration()

std::chrono::milliseconds jami::Conference::getDuration ( ) const

inline

Returns: Conference duration in milliseconds

Definition at line 375 of file conference.h.

Referenced by ~Conference().

◆ getLastMediaList()

std::vector< libjami::MediaMap > jami::Conference::getLastMediaList ( ) const

inline

Return the last media list before the host was detached.

Returns: Last media list

Definition at line 366 of file conference.h.

Referenced by jami::Manager::ManagerPimpl::addMainParticipant().

◆ getState()

Conference::State jami::Conference::getState ( ) const

Return the current conference state.

Definition at line 300 of file conference.cpp.

Referenced by jami::Manager::addSubCall(), attachHost(), detachHost(), isMediaSourceMuted(), requestMediaChange(), and jami::Manager::resumeConference().

◆ getStateStr() [1/2]

const char * jami::Conference::getStateStr ( ) const

inline

Definition at line 239 of file conference.h.

References getStateStr().

Referenced by attachHost(), detachHost(), getStateStr(), and setState().

Here is the call graph for this function:

◆ getStateStr() [2/2]

static constexpr const char * jami::Conference::getStateStr ( State state )

inlinestaticconstexpr

Return a string description of the conference state.

Definition at line 225 of file conference.h.

References ACTIVE_ATTACHED, ACTIVE_DETACHED, and HOLD.

Referenced by jami::Manager::ManagerPimpl::addMainParticipant(), jami::Manager::holdConference(), and jami::Manager::resumeConference().

◆ getSubCalls()

CallIdSet jami::Conference::getSubCalls ( ) const

Get the participant list for this conference.

Definition at line 1101 of file conference.cpp.

References jami::emitSignal().

Referenced by getCallFromPeerID(), jami::Manager::ManagerPimpl::hangupConference(), jami::Manager::resumeConference(), setHandRaised(), and setModerator().

Here is the call graph for this function:

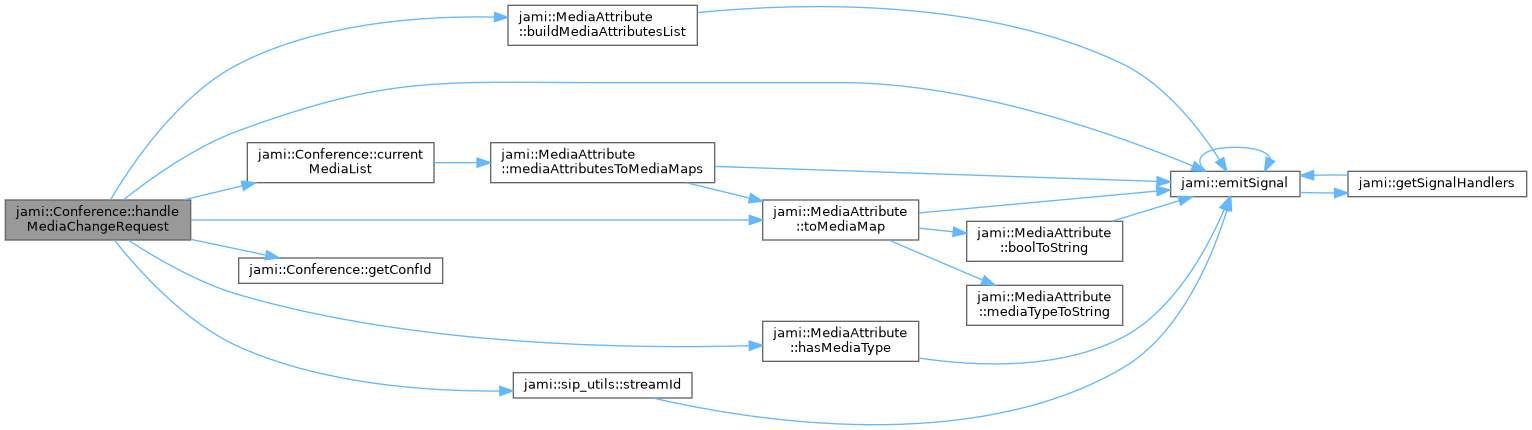

◆ handleMediaChangeRequest()

void jami::Conference::handleMediaChangeRequest	(	const std::shared_ptr< Call > &	call,
		const std::vector< libjami::MediaMap > &	remoteMediaList
	)

Process incoming media change request.

Parameters

callId	the call ID
remoteMediaList	new media list from the remote

Definition at line 660 of file conference.cpp.

References jami::MediaAttribute::buildMediaAttributesList(), currentMediaList(), jami::sip_utils::DEFAULT_AUDIO_STREAMID, jami::emitSignal(), libjami::Media::MediaAttributeKey::ENABLED, jami::FALSE_STR, getConfId(), jami::MediaAttribute::hasMediaType(), JAMI_DEBUG, JAMI_WARNING, jami::MEDIA_VIDEO, libjami::Media::MediaAttributeKey::MUTED, jami::sip_utils::streamId(), jami::MediaAttribute::toMediaMap(), and jami::TRUE_STR.

Here is the call graph for this function:

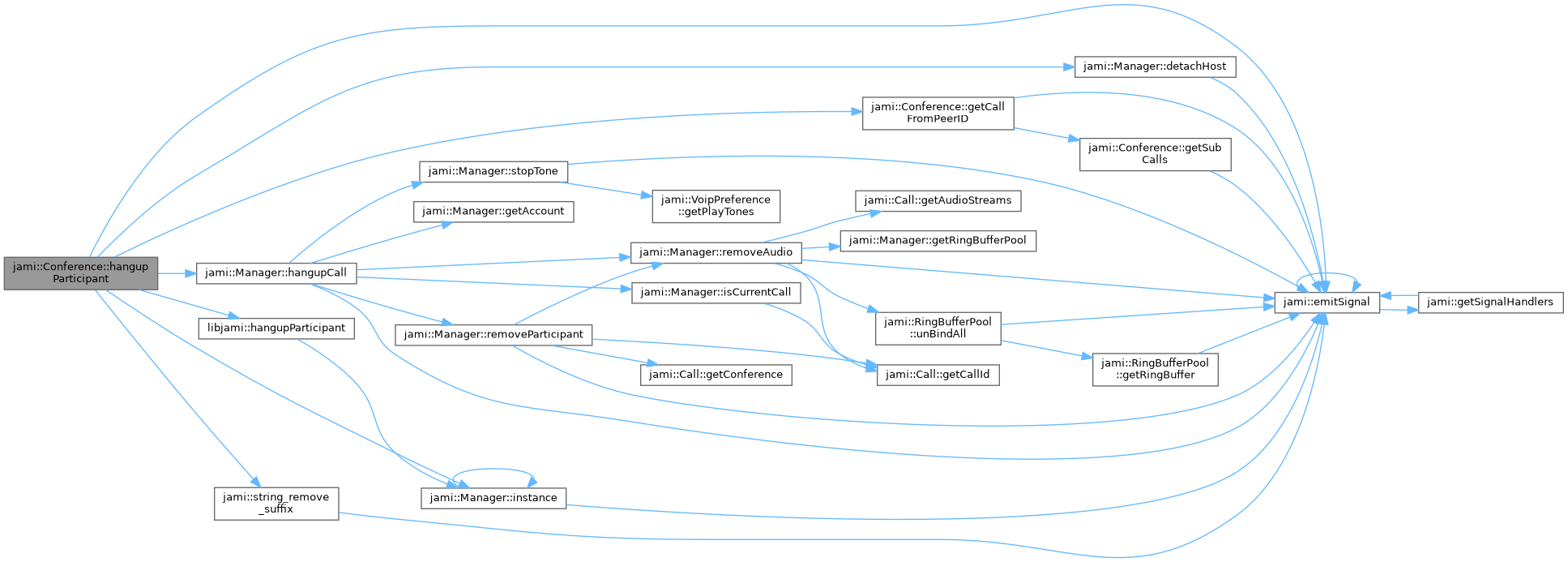

◆ hangupParticipant()

void jami::Conference::hangupParticipant	(	const std::string &	accountUri,
		const std::string &	deviceId = `""`
	)

Definition at line 1620 of file conference.cpp.

References jami::Manager::detachHost(), jami::emitSignal(), getCallFromPeerID(), jami::Manager::hangupCall(), libjami::hangupParticipant(), jami::Manager::instance(), JAMI_WARNING, and jami::string_remove_suffix().

Here is the call graph for this function:

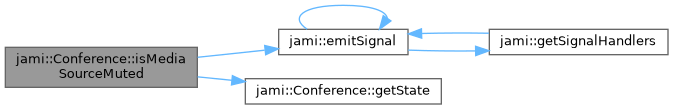

◆ isMediaSourceMuted()

bool jami::Conference::isMediaSourceMuted ( MediaType type ) const

Get the mute state of the local host.

Definition at line 427 of file conference.cpp.

References ACTIVE_ATTACHED, jami::emitSignal(), getState(), JAMI_ERROR, JAMI_WARNING, jami::MEDIA_AUDIO, jami::MEDIA_NONE, and jami::MEDIA_VIDEO.

Referenced by muteLocalHost(), requestMediaChange(), and updateMuted().

Here is the call graph for this function:

◆ isRemoteParticipant()

bool jami::Conference::isRemoteParticipant ( const std::string & uri )

◆ isVideoEnabled()

bool jami::Conference::isVideoEnabled ( ) const

Definition at line 1172 of file conference.cpp.

Referenced by muteLocalHost(), and switchInput().

◆ mergeConfInfo()

void jami::Conference::mergeConfInfo	(	ConfInfo &	newInfo,
		const std::string &	peerURI
	)

Definition at line 1755 of file conference.cpp.

References jami::emitSignal(), and JAMI_DEBUG.

Here is the call graph for this function:

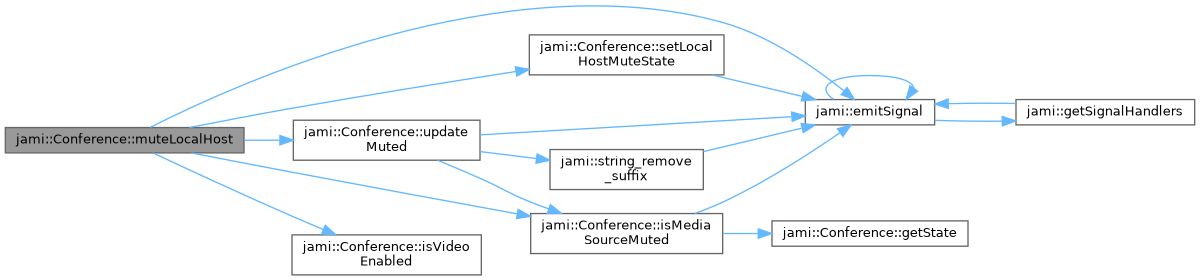

◆ muteLocalHost()

void jami::Conference::muteLocalHost	(	bool	is_muted,
		const std::string &	mediaType
	)

Definition at line 1652 of file conference.cpp.

References jami::emitSignal(), isMediaSourceMuted(), isVideoEnabled(), JAMI_DEBUG, JAMI_ERROR, jami::MEDIA_AUDIO, libjami::Media::Details::MEDIA_TYPE_AUDIO, libjami::Media::Details::MEDIA_TYPE_VIDEO, jami::MEDIA_VIDEO, setLocalHostMuteState(), and updateMuted().

Referenced by requestMediaChange().

Here is the call graph for this function:

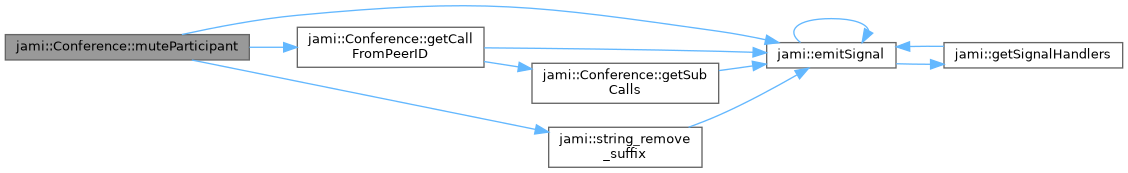

◆ muteParticipant()

void jami::Conference::muteParticipant	(	const std::string &	uri,
		const bool &	state
	)

Definition at line 1488 of file conference.cpp.

References jami::emitSignal(), jami::FALSE_STR, getCallFromPeerID(), jami::string_remove_suffix(), and jami::TRUE_STR.

Here is the call graph for this function:

◆ muteStream()

void jami::Conference::muteStream	(	const std::string &	accountUri,
		const std::string &	deviceId,
		const std::string &	streamId,
		const bool &	state
	)

The client shows one tile per stream (video/audio related to a media)

Note: for now, in conferences we can only mute the audio of a call

Todo:: add a track (audio OR video) parameter to know what we want to mute

Parameters

accountUri	Account of the stream
deviceId	Device of the stream
streamId	Stream to mute
state	True to mute, false to unmute

Definition at line 1441 of file conference.cpp.

References jami::emitSignal(), and JAMI_WARNING.

Here is the call graph for this function:

◆ onConfOrder()

void jami::Conference::onConfOrder	(	const std::string &	callId,
		const std::string &	order
	)

Definition at line 1245 of file conference.cpp.

References jami::emitSignal(), jami::ConfProtocolParser::initData(), JAMI_WARNING, jami::ConfProtocolParser::parse(), and jami::json::parse().

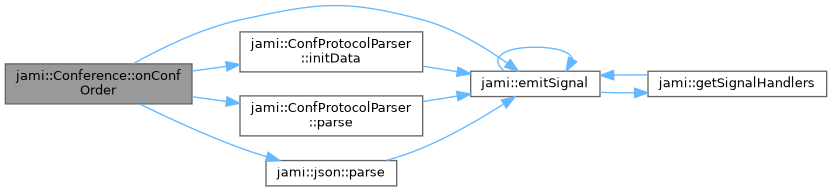

Here is the call graph for this function:

◆ onShutdown()

void jami::Conference::onShutdown ( std::function< void(int)> cb )

inline

Set a callback that will be called when the conference will be destroyed.

Definition at line 220 of file conference.h.

References jami::emitSignal().

Here is the call graph for this function:

◆ removeSubCall()

void jami::Conference::removeSubCall ( const std::string & callId )

Remove a subcall from the conference.

Definition at line 815 of file conference.cpp.

References jami::emitSignal(), JAMI_DEBUG, and jami::MEDIA_AUDIO.

Here is the call graph for this function:

◆ reportMediaNegotiationStatus()

void jami::Conference::reportMediaNegotiationStatus ( )

Announce to the client that medias are successfully negotiated.

Definition at line 347 of file conference.cpp.

References currentMediaList(), jami::emitSignal(), getConfId(), and libjami::Media::MediaNegotiationStatusEvents::NEGOTIATION_SUCCESS.

Referenced by requestMediaChange().

Here is the call graph for this function:

◆ requestMediaChange()

bool jami::Conference::requestMediaChange ( const std::vector< libjami::MediaMap > & mediaList )

Process a media change request.

Used to change the media attributes of the host.

Parameters

remoteMediaList new media list from the remote

Returns: true on success

Definition at line 529 of file conference.cpp.

References ACTIVE_ATTACHED, jami::MediaAttribute::buildMediaAttributesList(), jami::closeMediaPlayer(), jami::createMediaPlayer(), jami::sip_utils::DEFAULT_AUDIO_STREAMID, jami::emitSignal(), libjami::Media::VideoProtocolPrefix::FILE, jami::getAudioInput(), getConfId(), getState(), jami::MediaAttribute::hasMediaType(), jami::Manager::instance(), isMediaSourceMuted(), JAMI_DEBUG, JAMI_ERROR, jami::MEDIA_AUDIO, libjami::Media::Details::MEDIA_TYPE_AUDIO, libjami::Media::Details::MEDIA_TYPE_VIDEO, jami::MEDIA_VIDEO, muteLocalHost(), reportMediaNegotiationStatus(), libjami::Media::VideoProtocolPrefix::SEPARATOR, and jami::sip_utils::streamId().

Referenced by attachHost().

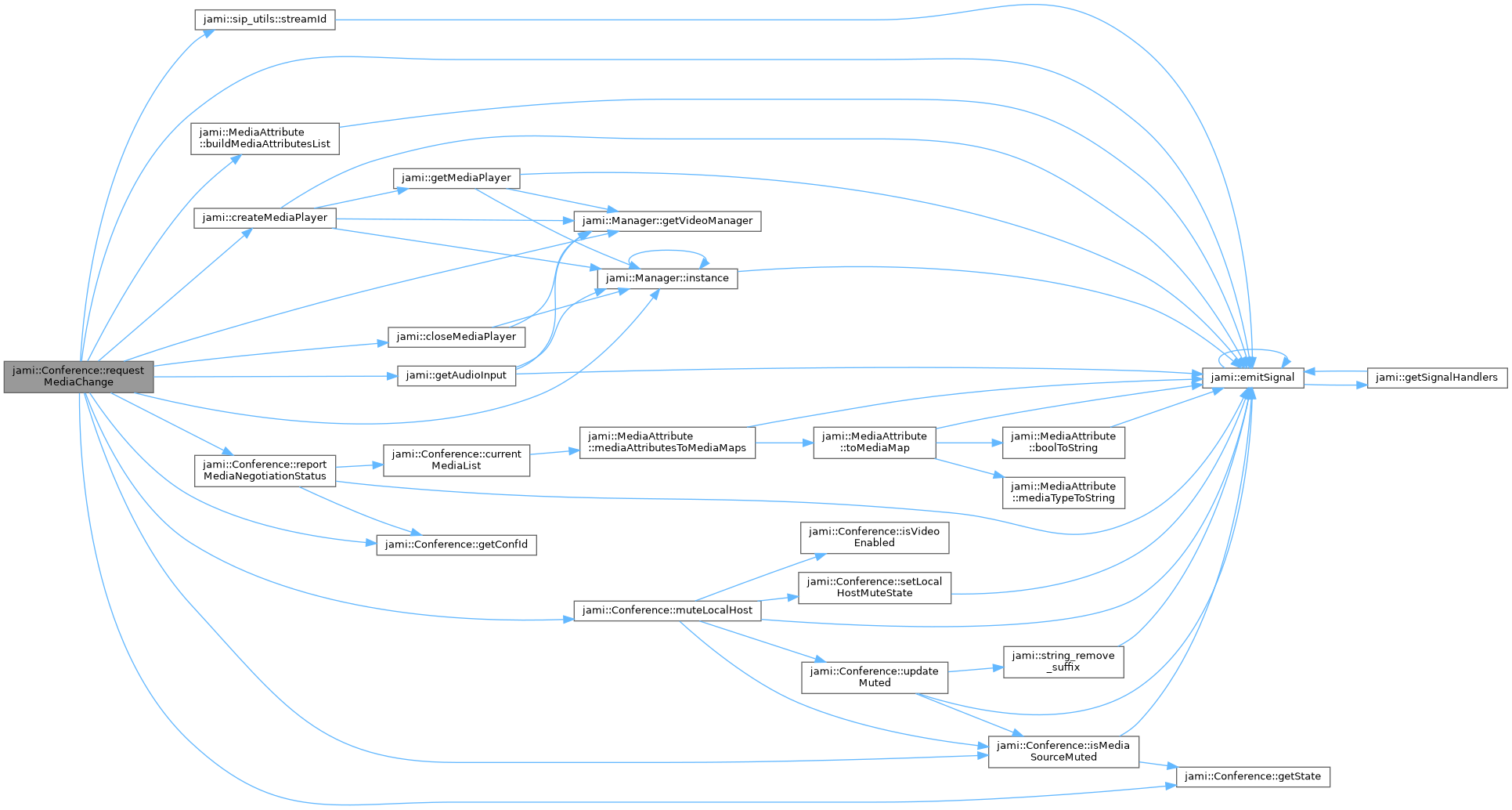

Here is the call graph for this function:

◆ setActiveParticipant()

void jami::Conference::setActiveParticipant ( const std::string & participant_id )

Definition at line 916 of file conference.cpp.

References jami::sip_utils::DEFAULT_VIDEO_STREAMID, jami::emitSignal(), getCallFromPeerID(), and jami::sip_utils::streamId().

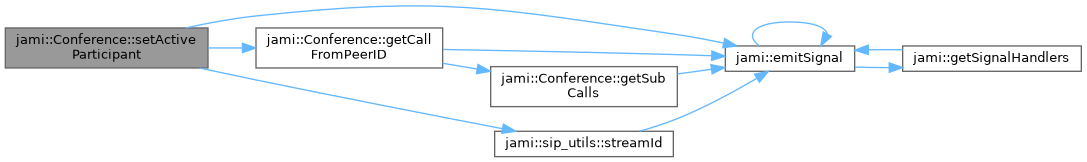

Here is the call graph for this function:

◆ setActiveStream()

void jami::Conference::setActiveStream	(	const std::string &	streamId,
		bool	state
	)

Definition at line 941 of file conference.cpp.

◆ setHandRaised()

void jami::Conference::setHandRaised	(	const std::string &	uri,
		const bool &	state
	)

Definition at line 1281 of file conference.cpp.

References jami::emitSignal(), getSubCalls(), and JAMI_WARNING.

Here is the call graph for this function:

◆ setLayout()

void jami::Conference::setLayout ( int layout )

Definition at line 954 of file conference.cpp.

References jami::emitSignal(), JAMI_ERROR, and jami::ConfInfo::layout.

Here is the call graph for this function:

◆ setLocalHostMuteState()

void jami::Conference::setLocalHostMuteState	(	MediaType	type,
		bool	muted
	)

Set the mute state of the local host.

Definition at line 418 of file conference.cpp.

References jami::emitSignal().

Referenced by muteLocalHost().

Here is the call graph for this function:

◆ setModerator()

void jami::Conference::setModerator	(	const std::string &	uri,
		const bool &	state
	)

Definition at line 1361 of file conference.cpp.

References jami::emitSignal(), getSubCalls(), and JAMI_WARNING.

Here is the call graph for this function:

◆ setState()

void jami::Conference::setState ( State state )

Set conference state.

Definition at line 306 of file conference.cpp.

References getStateStr(), and JAMI_DEBUG.

Referenced by attachHost(), detachHost(), and jami::Manager::resumeConference().

Here is the call graph for this function:

◆ setVoiceActivity()

void jami::Conference::setVoiceActivity	(	const std::string &	streamId,
		const bool &	newState
	)

Definition at line 1322 of file conference.cpp.

References jami::emitSignal(), JAMI_ERROR, and updateVoiceActivity().

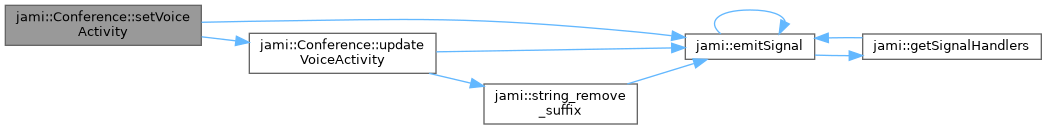

Here is the call graph for this function:

◆ startRecording()

bool jami::Conference::startRecording ( const std::string & path )

overridevirtual

Start recording.

Reimplemented from jami::Recordable.

Definition at line 1853 of file conference.cpp.

References jami::emitSignal(), jami::Recordable::startRecording(), and updateRecording().

Here is the call graph for this function:

◆ stopRecording()

void jami::Conference::stopRecording ( )

overridevirtual

Stop recording.

Reimplemented from jami::Recordable.

Definition at line 1846 of file conference.cpp.

References jami::Recordable::stopRecording(), and updateRecording().

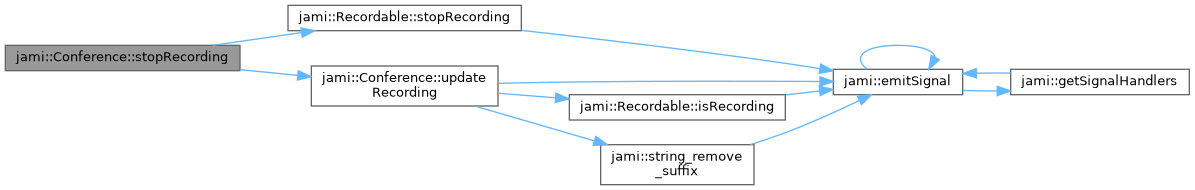

Here is the call graph for this function:

◆ switchInput()

void jami::Conference::switchInput ( const std::string & input )

Definition at line 1133 of file conference.cpp.

References jami::emitSignal(), getAccountId(), getConfId(), isVideoEnabled(), JAMI_DEBUG, jami::MEDIA_VIDEO, and video.

Here is the call graph for this function:

◆ toggleRecording()

bool jami::Conference::toggleRecording ( )

overridevirtual

Start/stop recording toggle.

Reimplemented from jami::Recordable.

Definition at line 1108 of file conference.cpp.

References jami::emitSignal(), jami::Recordable::isRecording(), jami::Recordable::recorder_, jami::Recordable::toggleRecording(), and updateRecording().

Referenced by addSubCall(), and ~Conference().

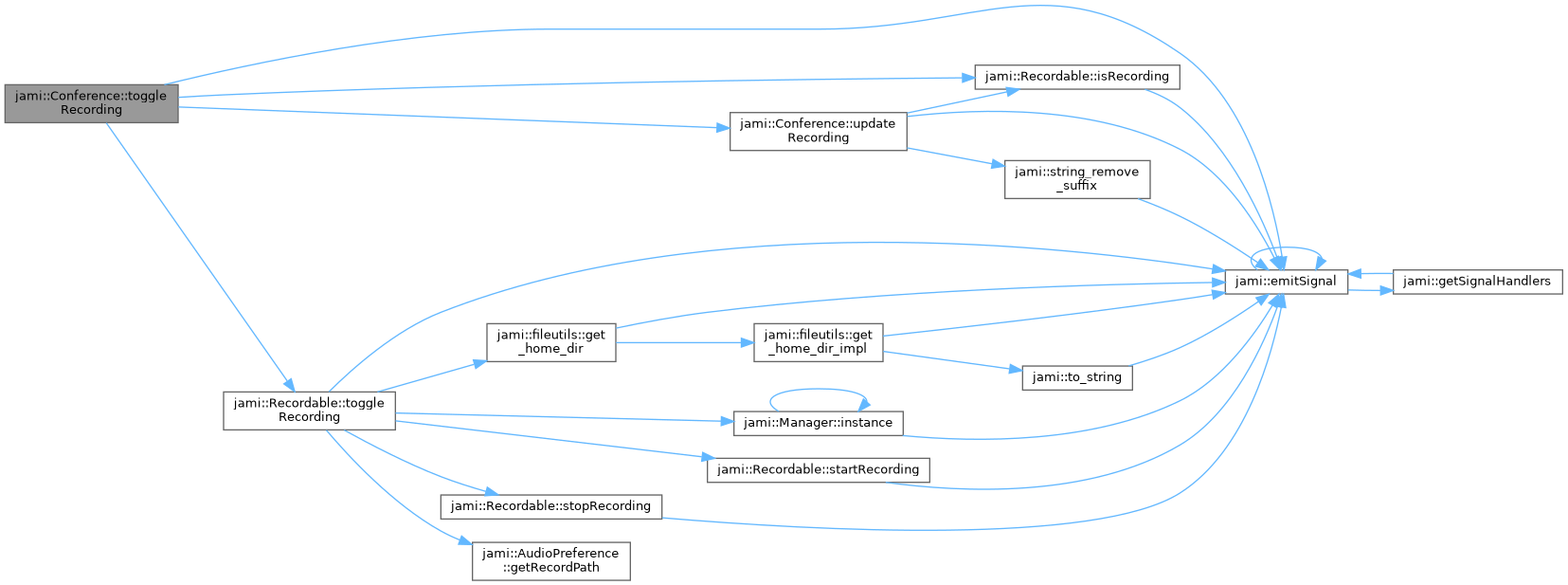

Here is the call graph for this function:

◆ updateConferenceInfo()

void jami::Conference::updateConferenceInfo ( ConfInfo confInfo )

Definition at line 1612 of file conference.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ updateMuted()

void jami::Conference::updateMuted ( )

Definition at line 1532 of file conference.cpp.

References jami::emitSignal(), isMediaSourceMuted(), jami::MEDIA_AUDIO, and jami::string_remove_suffix().

Referenced by muteLocalHost().

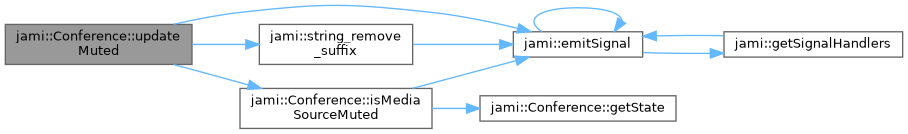

Here is the call graph for this function:

◆ updateRecording()

void jami::Conference::updateRecording ( )

Definition at line 1518 of file conference.cpp.

References jami::emitSignal(), jami::Recordable::isRecording(), and jami::string_remove_suffix().

Referenced by startRecording(), stopRecording(), and toggleRecording().

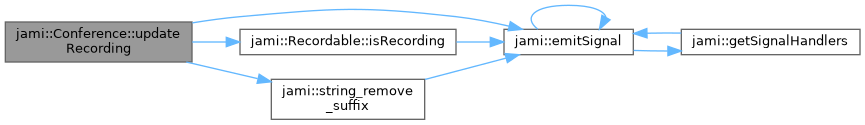

Here is the call graph for this function:

◆ updateVoiceActivity()

void jami::Conference::updateVoiceActivity ( )

Definition at line 1401 of file conference.cpp.

References jami::emitSignal(), and jami::string_remove_suffix().

Referenced by setVoiceActivity().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ State

Constructor & Destructor Documentation

◆ Conference()

◆ ~Conference()

Member Function Documentation

◆ addSubCall()

◆ attachHost()

◆ currentMediaList()

◆ detachHost()

◆ getAccount()

◆ getAccountId()

◆ getCallFromPeerID()

◆ getConferenceInfos()

◆ getConfId()

◆ getDuration()

◆ getLastMediaList()

◆ getState()

◆ getStateStr() [1/2]

◆ getStateStr() [2/2]

◆ getSubCalls()

◆ handleMediaChangeRequest()

◆ hangupParticipant()

◆ isMediaSourceMuted()

◆ isRemoteParticipant()

◆ isVideoEnabled()

◆ mergeConfInfo()

◆ muteLocalHost()

◆ muteParticipant()

◆ muteStream()

◆ onConfOrder()

◆ onShutdown()

◆ removeSubCall()

◆ reportMediaNegotiationStatus()

◆ requestMediaChange()

◆ setActiveParticipant()

◆ setActiveStream()

◆ setHandRaised()

◆ setLayout()

◆ setLocalHostMuteState()

◆ setModerator()

◆ setState()

◆ setVoiceActivity()

◆ startRecording()

◆ stopRecording()

◆ switchInput()

◆ toggleRecording()

◆ updateConferenceInfo()

◆ updateMuted()

◆ updateRecording()

◆ updateVoiceActivity()
