#include <video_rtp_session.h>

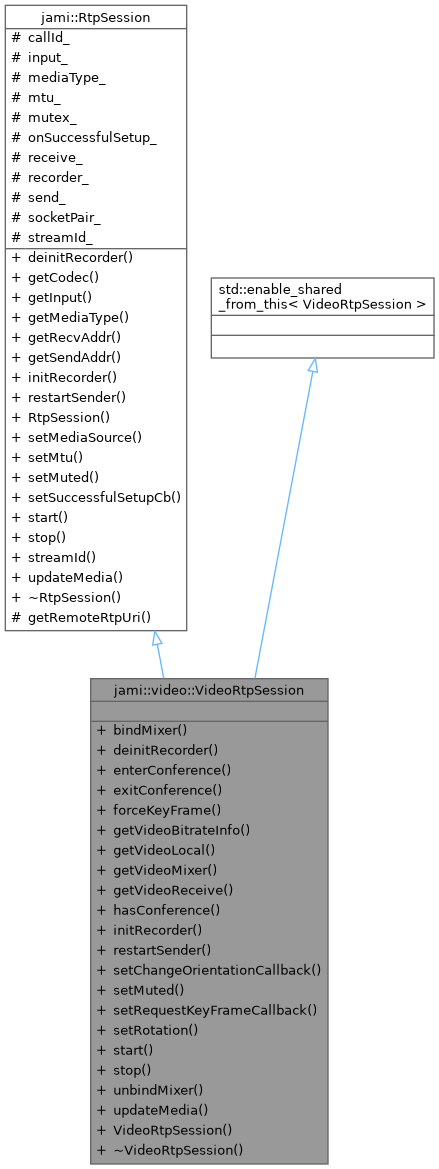

Inheritance diagram for jami::video::VideoRtpSession:

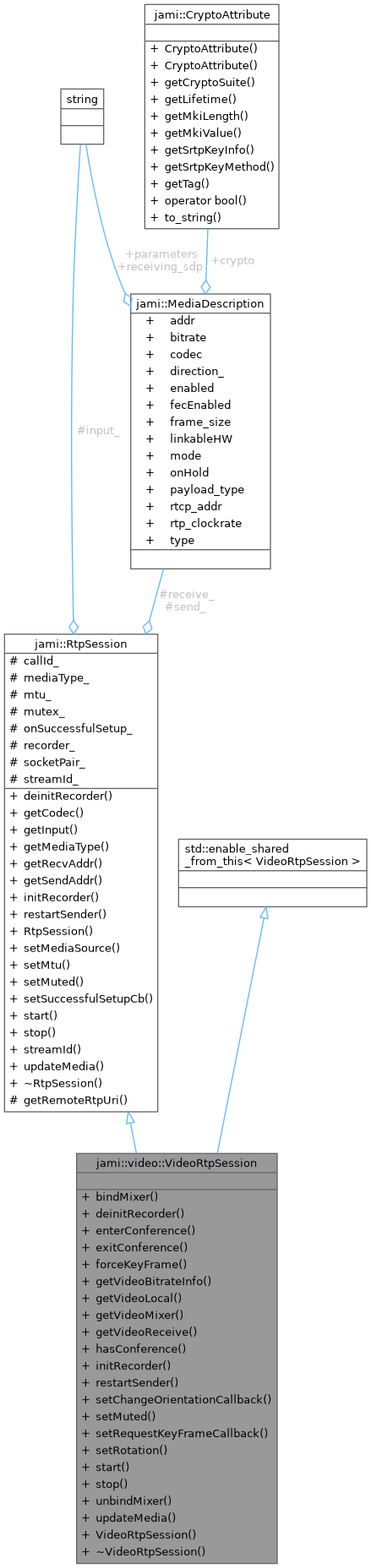

Collaboration diagram for jami::video::VideoRtpSession:

Public Types
using	BaseType = RtpSession

Public Types inherited from jami::RtpSession
enum class	Direction { SEND , RECV }

Public Member Functions
void	bindMixer (VideoMixer *mixer)

void	deinitRecorder () override

void	enterConference (Conference &conference)

void	exitConference ()

void	forceKeyFrame ()

const VideoBitrateInfo &	getVideoBitrateInfo ()

std::shared_ptr< VideoInput > &	getVideoLocal ()

std::shared_ptr< VideoMixer > &	getVideoMixer ()

std::shared_ptr< VideoReceiveThread > &	getVideoReceive ()

bool	hasConference ()

void	initRecorder () override

void	restartSender () override

void	setChangeOrientationCallback (std::function< void(int)> cb)

void	setMuted (bool mute, Direction dir=Direction::SEND) override

void	setRequestKeyFrameCallback (std::function< void(void)> cb)

void	setRotation (int rotation)
	Set video orientation.

void	start (std::unique_ptr< dhtnet::IceSocket > rtp_sock, std::unique_ptr< dhtnet::IceSocket > rtcp_sock) override

void	stop () override

void	unbindMixer ()

void	updateMedia (const MediaDescription &send, const MediaDescription &receive) override
	Setup internal VideoBitrateInfo structure from media descriptors.

	VideoRtpSession (const std::string &callId, const std::string &streamId, const DeviceParams &localVideoParams, const std::shared_ptr< MediaRecorder > &rec)

	~VideoRtpSession ()

Public Member Functions inherited from jami::RtpSession
std::shared_ptr< SystemCodecInfo >	getCodec () const

const std::string &	getInput () const

MediaType	getMediaType () const

const dhtnet::IpAddr &	getRecvAddr () const

const dhtnet::IpAddr &	getSendAddr () const

	RtpSession (const std::string &callId, const std::string &streamId, MediaType type)

void	setMediaSource (const std::string &resource)

void	setMtu (uint16_t mtu)

void	setSuccessfulSetupCb (const std::function< void(MediaType, bool)> &cb)

std::string	streamId () const

virtual	~RtpSession ()

Additional Inherited Members
Protected Member Functions inherited from jami::RtpSession
std::string	getRemoteRtpUri () const

Protected Attributes inherited from jami::RtpSession
const std::string	callId_

std::string	input_ {}

MediaType	mediaType_

uint16_t	mtu_

std::recursive_mutex	mutex_

std::function< void(MediaType, bool)>	onSuccessfulSetup_

MediaDescription	receive_

std::shared_ptr< MediaRecorder >	recorder_

MediaDescription	send_

std::unique_ptr< SocketPair >	socketPair_

const std::string	streamId_

Detailed Description

Definition at line 63 of file video_rtp_session.h.

Member Typedef Documentation

◆ BaseType

using jami::video::VideoRtpSession::BaseType = RtpSession

Definition at line 66 of file video_rtp_session.h.

Constructor & Destructor Documentation

◆ VideoRtpSession()

jami::video::VideoRtpSession::VideoRtpSession	(	const std::string &	callId,
		const std::string &	streamId,
		const DeviceParams &	localVideoParams,
		const std::shared_ptr< MediaRecorder > &	rec
	)

Definition at line 60 of file video_rtp_session.cpp.

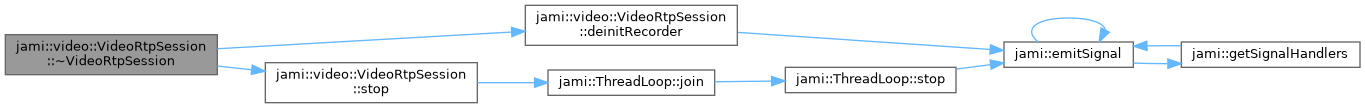

◆ ~VideoRtpSession()

jami::video::VideoRtpSession::~VideoRtpSession ( )

Definition at line 75 of file video_rtp_session.cpp.

References deinitRecorder(), JAMI_LOG, and stop().

Here is the call graph for this function:

Member Function Documentation

◆ bindMixer()

void jami::video::VideoRtpSession::bindMixer ( VideoMixer * mixer )

◆ deinitRecorder()

void jami::video::VideoRtpSession::deinitRecorder ( )

overridevirtual

Implements jami::RtpSession.

Definition at line 843 of file video_rtp_session.cpp.

References jami::emitSignal(), and jami::RtpSession::recorder_.

Referenced by ~VideoRtpSession().

Here is the call graph for this function:

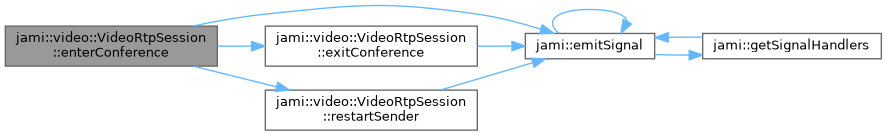

◆ enterConference()

void jami::video::VideoRtpSession::enterConference ( Conference & conference )

Definition at line 562 of file video_rtp_session.cpp.

References jami::emitSignal(), jami::MediaDescription::enabled, exitConference(), JAMI_DBG, jami::RtpSession::mutex_, jami::RtpSession::RECV, restartSender(), and jami::RtpSession::send_.

Here is the call graph for this function:

◆ exitConference()

void jami::video::VideoRtpSession::exitConference ( )

Definition at line 583 of file video_rtp_session.cpp.

References jami::emitSignal(), JAMI_DBG, jami::RtpSession::mutex_, and jami::RtpSession::streamId_.

Referenced by enterConference().

Here is the call graph for this function:

◆ forceKeyFrame()

void jami::video::VideoRtpSession::forceKeyFrame ( )

Definition at line 495 of file video_rtp_session.cpp.

References jami::emitSignal(), and jami::RtpSession::mutex_.

Here is the call graph for this function:

◆ getVideoBitrateInfo()

const VideoBitrateInfo & jami::video::VideoRtpSession::getVideoBitrateInfo ( )

Definition at line 83 of file video_rtp_session.cpp.

◆ getVideoLocal()

std::shared_ptr< VideoInput > & jami::video::VideoRtpSession::getVideoLocal ( )

inline

Definition at line 105 of file video_rtp_session.h.

◆ getVideoMixer()

std::shared_ptr< VideoMixer > & jami::video::VideoRtpSession::getVideoMixer ( )

inline

Definition at line 107 of file video_rtp_session.h.

◆ getVideoReceive()

std::shared_ptr< VideoReceiveThread > & jami::video::VideoRtpSession::getVideoReceive ( )

inline

Definition at line 109 of file video_rtp_session.h.

◆ hasConference()

bool jami::video::VideoRtpSession::hasConference ( )

inline

Definition at line 103 of file video_rtp_session.h.

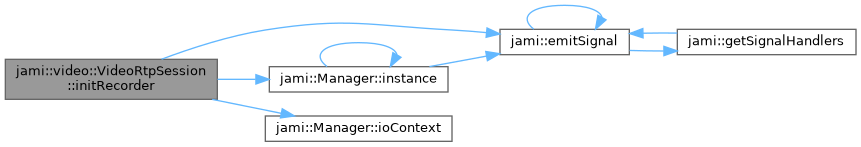

◆ initRecorder()

void jami::video::VideoRtpSession::initRecorder ( )

overridevirtual

Implements jami::RtpSession.

Definition at line 820 of file video_rtp_session.cpp.

References jami::emitSignal(), jami::Manager::instance(), jami::Manager::ioContext(), jami::MediaDescription::onHold, jami::RtpSession::recorder_, and jami::RtpSession::send_.

Here is the call graph for this function:

◆ restartSender()

void jami::video::VideoRtpSession::restartSender ( )

overridevirtual

Implements jami::RtpSession.

Definition at line 223 of file video_rtp_session.cpp.

References jami::emitSignal(), jami::RtpSession::mutex_, jami::RtpSession::SEND, and jami::RtpSession::socketPair_.

Referenced by enterConference(), and setMuted().

Here is the call graph for this function:

◆ setChangeOrientationCallback()

void jami::video::VideoRtpSession::setChangeOrientationCallback ( std::function< void(int)> cb )

Definition at line 864 of file video_rtp_session.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setMuted()

void jami::video::VideoRtpSession::setMuted	(	bool	mute,
		Direction	dir = `Direction::SEND`
	)

overridevirtual

Implements jami::RtpSession.

Definition at line 445 of file video_rtp_session.cpp.

References jami::emitSignal(), JAMI_DBG, jami::RtpSession::mutex_, jami::MediaDescription::onHold, jami::RtpSession::receive_, jami::RtpSession::recorder_, jami::RtpSession::RECV, restartSender(), jami::RtpSession::SEND, and jami::RtpSession::send_.

Here is the call graph for this function:

◆ setRequestKeyFrameCallback()

void jami::video::VideoRtpSession::setRequestKeyFrameCallback ( std::function< void(void)> cb )

Definition at line 105 of file video_rtp_session.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setRotation()

void jami::video::VideoRtpSession::setRotation ( int rotation )

Set video orientation.

Send to the receive thread rotation to apply to the video (counterclockwise)

Parameters

rotation Rotation in degrees (counterclockwise)

Definition at line 508 of file video_rtp_session.cpp.

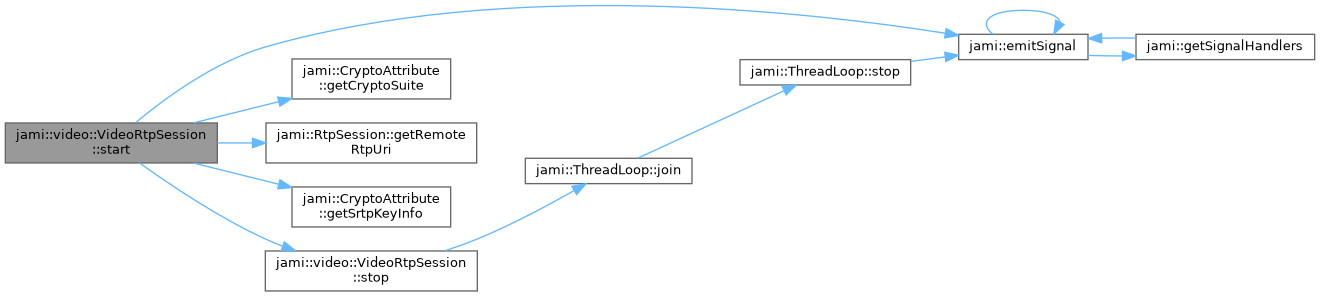

◆ start()

void jami::video::VideoRtpSession::start	(	std::unique_ptr< dhtnet::IceSocket >	rtp_sock,
		std::unique_ptr< dhtnet::IceSocket >	rtcp_sock
	)

overridevirtual

Implements jami::RtpSession.

Definition at line 364 of file video_rtp_session.cpp.

References jami::MediaDescription::addr, jami::MediaDescription::crypto, jami::emitSignal(), jami::MediaDescription::enabled, jami::CryptoAttribute::getCryptoSuite(), jami::RtpSession::getRemoteRtpUri(), jami::CryptoAttribute::getSrtpKeyInfo(), JAMI_ERR, jami::RtpSession::mutex_, jami::MediaDescription::onHold, jami::RtpSession::receive_, jami::RtpSession::RECV, jami::MediaDescription::rtcp_addr, jami::RtpSession::SEND, jami::RtpSession::send_, jami::RtpSession::socketPair_, and stop().

Here is the call graph for this function:

◆ stop()

void jami::video::VideoRtpSession::stop ( )

overridevirtual

Implements jami::RtpSession.

Definition at line 421 of file video_rtp_session.cpp.

References jami::SystemCodecInfo::DEFAULT_CODEC_QUALITY, jami::SystemCodecInfo::DEFAULT_NO_QUALITY, jami::SystemCodecInfo::DEFAULT_VIDEO_BITRATE, jami::ThreadLoop::join(), jami::RtpSession::mutex_, jami::RtpSession::socketPair_, jami::video::VideoBitrateInfo::videoBitrateCurrent, and jami::video::VideoBitrateInfo::videoQualityCurrent.

Referenced by start(), and ~VideoRtpSession().

Here is the call graph for this function:

◆ unbindMixer()

void jami::video::VideoRtpSession::unbindMixer ( )

◆ updateMedia()

void jami::video::VideoRtpSession::updateMedia	(	const MediaDescription &	send,
		const MediaDescription &	receive
	)

overridevirtual

Setup internal VideoBitrateInfo structure from media descriptors.

Reimplemented from jami::RtpSession.

Definition at line 91 of file video_rtp_session.cpp.

References jami::MediaDescription::codec, jami::SystemCodecInfo::DEFAULT_MAX_BITRATE, jami::SystemCodecInfo::DEFAULT_VIDEO_BITRATE, jami::emitSignal(), jami::DeviceParams::height, jami::RtpSession::send_, jami::RtpSession::updateMedia(), and jami::DeviceParams::width.

Here is the call graph for this function:

The documentation for this class was generated from the following files:
