jami::video::VideoReceiveThread Class Reference

#include <video_receive_thread.h>

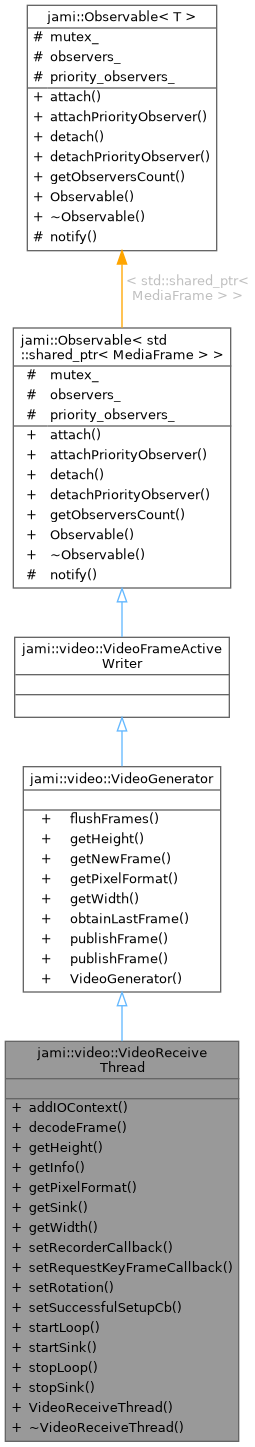

Inheritance diagram for jami::video::VideoReceiveThread:

Collaboration diagram for jami::video::VideoReceiveThread:

Public Member Functions
void	addIOContext (SocketPair &socketPair)
void	decodeFrame ()
int	getHeight () const
MediaStream	getInfo () const
AVPixelFormat	getPixelFormat () const
std::shared_ptr< SinkClient > &	getSink ()
int	getWidth () const
void	setRecorderCallback (const std::function< void(const MediaStream &ms)> &cb)
void	setRequestKeyFrameCallback (std::function< void(void)> cb)
void	setRotation (int angle)
	Set angle of rotation to apply to the video by the decoder.
void	setSuccessfulSetupCb (const std::function< void(MediaType, bool)> &cb)
void	startLoop ()
void	startSink ()
void	stopLoop ()
void	stopSink ()
	VideoReceiveThread (const std::string &id, bool useSink, const std::string &sdp, uint16_t mtu)
	~VideoReceiveThread ()
Public Member Functions inherited from jami::video::VideoGenerator
void	flushFrames ()
VideoFrame &	getNewFrame ()
std::shared_ptr< VideoFrame >	obtainLastFrame ()
void	publishFrame ()
void	publishFrame (std::shared_ptr< VideoFrame >)
	VideoGenerator ()
Public Member Functions inherited from jami::Observable< std::shared_ptr< MediaFrame > >
bool	attach (Observer< std::shared_ptr< MediaFrame > > *o)
void	attachPriorityObserver (std::shared_ptr< Observer< std::shared_ptr< MediaFrame > > > o)
bool	detach (Observer< std::shared_ptr< MediaFrame > > *o)
void	detachPriorityObserver (Observer< std::shared_ptr< MediaFrame > > *o)
size_t	getObserversCount ()
	Observable ()
virtual	~Observable ()
	~Observable Detach all observers to avoid making them call this observable when destroyed

Additional Inherited Members
Protected Member Functions inherited from jami::Observable< std::shared_ptr< MediaFrame > >
void	notify (std::shared_ptr< MediaFrame > data)
Protected Attributes inherited from jami::Observable< std::shared_ptr< MediaFrame > >
std::mutex	mutex_
std::set< Observer< std::shared_ptr< MediaFrame > > * >	observers_
std::list< std::weak_ptr< Observer< std::shared_ptr< MediaFrame > > > >	priority_observers_

Detailed Description

Definition at line 47 of file video_receive_thread.h.

Constructor & Destructor Documentation

VideoReceiveThread()

jami::video::VideoReceiveThread::VideoReceiveThread	(	const std::string &	id,
		bool	useSink,
		const std::string &	sdp,
		uint16_t	mtu
	)

Definition at line 36 of file video_receive_thread.cpp.

References JAMI_DBG.

~VideoReceiveThread()

jami::video::VideoReceiveThread::~VideoReceiveThread

(

)

Definition at line 52 of file video_receive_thread.cpp.

References JAMI_DBG, and jami::ThreadLoop::join().

Here is the call graph for this function:

Member Function Documentation

addIOContext()

void jami::video::VideoReceiveThread::addIOContext

(

SocketPair &

socketPair

)

Definition at line 182 of file video_receive_thread.cpp.

References jami::emitSignal().

Here is the call graph for this function:

decodeFrame()

void jami::video::VideoReceiveThread::decodeFrame

(

)

Definition at line 199 of file video_receive_thread.cpp.

References jami::emitSignal(), jami::MediaDemuxer::EndOfFile, jami::MediaDemuxer::FallBack, jami::MediaDemuxer::getStatusStr(), jami::ThreadLoop::isRunning(), JAMI_ERROR, JAMI_LOG, jami::MediaDemuxer::ReadError, and jami::ThreadLoop::stop().

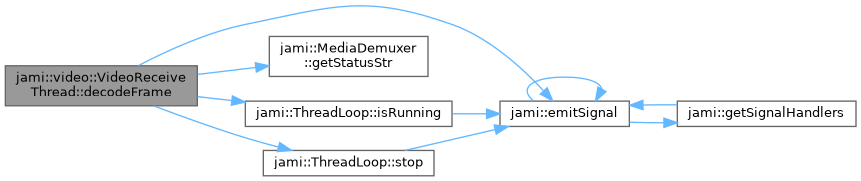

Here is the call graph for this function:

getHeight()

int jami::video::VideoReceiveThread::getHeight ( ) const

virtual

Implements jami::video::VideoGenerator.

Definition at line 294 of file video_receive_thread.cpp.

getInfo()

MediaStream jami::video::VideoReceiveThread::getInfo

(

)

const

Definition at line 308 of file video_receive_thread.cpp.

Referenced by setRecorderCallback().

getPixelFormat()

AVPixelFormat jami::video::VideoReceiveThread::getPixelFormat ( ) const

virtual

Implements jami::video::VideoGenerator.

Definition at line 300 of file video_receive_thread.cpp.

getSink()

std::shared_ptr< SinkClient > & jami::video::VideoReceiveThread::getSink ( )

inline

Definition at line 60 of file video_receive_thread.h.

getWidth()

int jami::video::VideoReceiveThread::getWidth ( ) const

virtual

Implements jami::video::VideoGenerator.

Definition at line 288 of file video_receive_thread.cpp.

setRecorderCallback()

void jami::video::VideoReceiveThread::setRecorderCallback

(

const std::function< void(const MediaStream &ms)> &

cb

)

Definition at line 188 of file video_receive_thread.cpp.

References jami::emitSignal(), and getInfo().

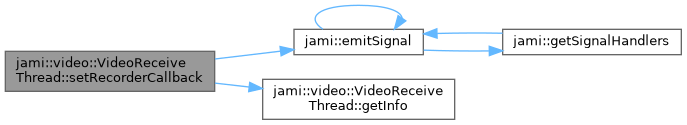

Here is the call graph for this function:

setRequestKeyFrameCallback()

void jami::video::VideoReceiveThread::setRequestKeyFrameCallback ( std::function< void(void)>  cb )

inline

Definition at line 57 of file video_receive_thread.h.

References jami::emitSignal().

Here is the call graph for this function:

setRotation()

void jami::video::VideoReceiveThread::setRotation

(

int

angle

)

Set angle of rotation to apply to the video by the decoder.

Parameters

angle

Angle of rotation in degrees (counterclockwise)

Definition at line 316 of file video_receive_thread.cpp.

References jami::emitSignal().

Here is the call graph for this function:

setSuccessfulSetupCb()

void jami::video::VideoReceiveThread::setSuccessfulSetupCb ( const std::function< void(MediaType, bool)> &  cb )

inline

Definition at line 75 of file video_receive_thread.h.

References jami::emitSignal().

Here is the call graph for this function:

startLoop()

void jami::video::VideoReceiveThread::startLoop

(

)

Definition at line 59 of file video_receive_thread.cpp.

References JAMI_DBG, and jami::ThreadLoop::start().

Here is the call graph for this function:

startSink()

void jami::video::VideoReceiveThread::startSink

(

)

Definition at line 276 of file video_receive_thread.cpp.

References jami::Observable< std::shared_ptr< MediaFrame > >::attach(), jami::emitSignal(), jami::ThreadLoop::isRunning(), and JAMI_DBG.

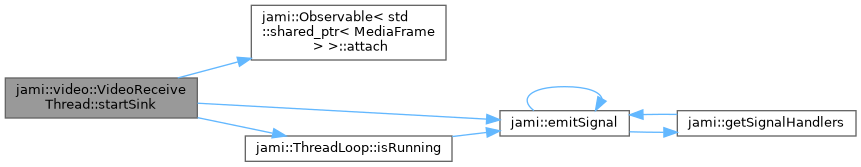

Here is the call graph for this function:

stopLoop()

void jami::video::VideoReceiveThread::stopLoop

(

)

Definition at line 66 of file video_receive_thread.cpp.

References jami::ThreadLoop::isStopping(), JAMI_DBG, jami::ThreadLoop::join(), and jami::ThreadLoop::stop().

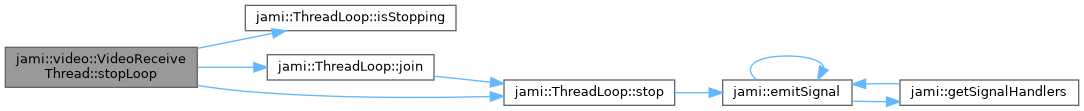

Here is the call graph for this function:

stopSink()

void jami::video::VideoReceiveThread::stopSink

(

)

Definition at line 264 of file video_receive_thread.cpp.

References jami::Observable< std::shared_ptr< MediaFrame > >::detach(), jami::ThreadLoop::isRunning(), and JAMI_DBG.

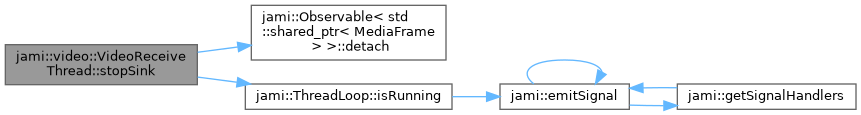

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• video_receive_thread.h
• video_receive_thread.cpp
