Public Types | Public Member Functions | Static Public Member Functions | List of all members
jami::MediaDemuxer Class Reference

#include <media_decoder.h>

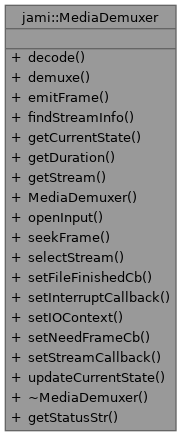

Collaboration diagram for jami::MediaDemuxer:
Collaboration graph

Public Types

enum class  CurrentState { Demuxing , Finished }

enum class  Status {
  Success , EndOfFile , ReadBufferOverflow , ReadError ,
  FallBack , RestartRequired
}

using StreamCallback = std::function< DecodeStatus(AVPacket &)>


Public Member Functions

Status decode ()

Status demuxe ()

bool emitFrame (bool isAudio)

void findStreamInfo ()

MediaDemuxer::CurrentState getCurrentState ()

int64_t getDuration () const

AVStream * getStream (unsigned stream)

 MediaDemuxer ()

int openInput (const DeviceParams &)

bool seekFrame (int stream_index, int64_t timestamp)

int selectStream (AVMediaType type)

void setFileFinishedCb (std::function< void(bool)> cb)

void setInterruptCallback (int(*cb)(void *), void *opaque)

void setIOContext (MediaIOHandle *ioctx)

void setNeedFrameCb (std::function< void()> cb)

void setStreamCallback (unsigned stream, StreamCallback cb={})

void updateCurrentState (MediaDemuxer::CurrentState state)

 ~MediaDemuxer ()


Static Public Member Functions

static const char * getStatusStr (Status status)


Detailed Description

Definition at line 85 of file media_decoder.h.

Member Typedef Documentation

◆ StreamCallback

using jami::MediaDemuxer::StreamCallback = std::function<DecodeStatus(AVPacket&)>

Definition at line 103 of file media_decoder.h.

Member Enumeration Documentation

◆ CurrentState

enum class jami::MediaDemuxer::CurrentState
strong
Enumerator
Demuxing
Finished

Definition at line 102 of file media_decoder.h.

◆ Status

enum class jami::MediaDemuxer::Status
strong
Enumerator
Success
EndOfFile
ReadBufferOverflow
ReadError
FallBack
RestartRequired

Definition at line 91 of file media_decoder.h.

Constructor & Destructor Documentation

◆ MediaDemuxer()

jami::MediaDemuxer::MediaDemuxer ( )

Definition at line 53 of file media_decoder.cpp.

◆ ~MediaDemuxer()

jami::MediaDemuxer::~MediaDemuxer ( )

Definition at line 58 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

Member Function Documentation

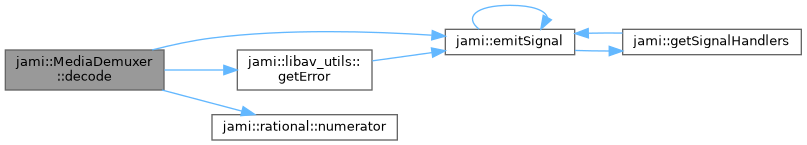

◆ decode()

MediaDemuxer::Status jami::MediaDemuxer::decode ( )

Definition at line 373 of file media_decoder.cpp.

References jami::emitSignal(), EndOfFile, jami::FallBack, FallBack, jami::DeviceParams::format, jami::DeviceParams::framerate, jami::libav_utils::getError(), jami::DeviceParams::height, JAMI_ERR, jami::rational< I >::numerator(), ReadError, RestartRequired, Success, and jami::DeviceParams::width.

Here is the call graph for this function:

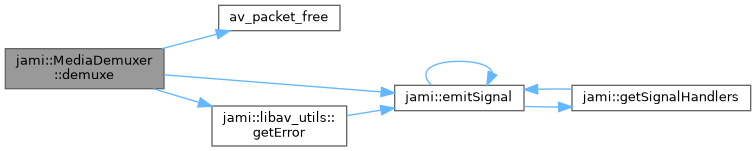

◆ demuxe()

MediaDemuxer::Status jami::MediaDemuxer::demuxe ( )

Definition at line 325 of file media_decoder.cpp.

References av_packet_free(), jami::emitSignal(), EndOfFile, jami::libav_utils::getError(), JAMI_ERR, ReadBufferOverflow, ReadError, and Success.

Here is the call graph for this function:

◆ emitFrame()

bool jami::MediaDemuxer::emitFrame ( bool  isAudio)

Definition at line 284 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

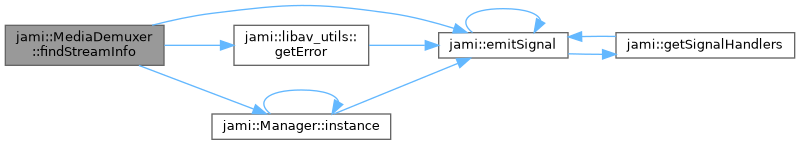

◆ findStreamInfo()

void jami::MediaDemuxer::findStreamInfo ( )

Definition at line 217 of file media_decoder.cpp.

References jami::emitSignal(), jami::libav_utils::getError(), and JAMI_ERR.

Here is the call graph for this function:

◆ getCurrentState()

MediaDemuxer::CurrentState jami::MediaDemuxer::getCurrentState ( )
inline

Definition at line 124 of file media_decoder.h.

◆ getDuration()

int64_t jami::MediaDemuxer::getDuration ( ) const

Definition at line 201 of file media_decoder.cpp.

◆ getStatusStr()

const char * jami::MediaDemuxer::getStatusStr ( Status  status)
static

Definition at line 66 of file media_decoder.cpp.

References EndOfFile, FallBack, ReadBufferOverflow, ReadError, RestartRequired, and Success.

Referenced by jami::video::VideoReceiveThread::decodeFrame().

◆ getStream()

AVStream * jami::MediaDemuxer::getStream ( unsigned  stream)
inline

Definition at line 126 of file media_decoder.h.

References JAMI_ERR.

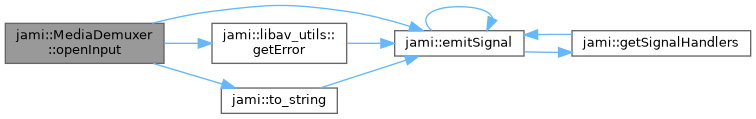

◆ openInput()

int jami::MediaDemuxer::openInput ( const DeviceParams &  params)

Definition at line 87 of file media_decoder.cpp.

References jami::emitSignal(), jami::libav_utils::getError(), JAMI_ERROR, JAMI_LOG, JAMI_WARN, jami::jitterBufferMaxDelay_, jami::jitterBufferMaxSize_, and jami::to_string().

Here is the call graph for this function:

◆ seekFrame()

bool jami::MediaDemuxer::seekFrame ( int  stream_index,
int64_t  timestamp
)

Definition at line 207 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ selectStream()

int jami::MediaDemuxer::selectStream ( AVMediaType  type)

Definition at line 230 of file media_decoder.cpp.

References jami::emitSignal(), and JAMI_DBG.

Here is the call graph for this function:

◆ setFileFinishedCb()

void jami::MediaDemuxer::setFileFinishedCb ( std::function< void(bool)>  cb)

Definition at line 261 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setInterruptCallback()

void jami::MediaDemuxer::setInterruptCallback ( int(*)(void *)  cb,
void *  opaque
)

Definition at line 245 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setIOContext()

void jami::MediaDemuxer::setIOContext ( MediaIOHandle *  ioctx)

Definition at line 367 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setNeedFrameCb()

void jami::MediaDemuxer::setNeedFrameCb ( std::function< void()>  cb)

Definition at line 255 of file media_decoder.cpp.

References jami::emitSignal().

Here is the call graph for this function:

◆ setStreamCallback()

void jami::MediaDemuxer::setStreamCallback ( unsigned  stream,
StreamCallback  cb = {}
)
inline

Definition at line 113 of file media_decoder.h.

◆ updateCurrentState()

void jami::MediaDemuxer::updateCurrentState ( MediaDemuxer::CurrentState  state)
inline

Definition at line 120 of file media_decoder.h.

The documentation for this class was generated from the following files:
