jami::video::SinkClient Class Reference

#include <sinkclient.h>

Inheritance diagram for jami::video::SinkClient:

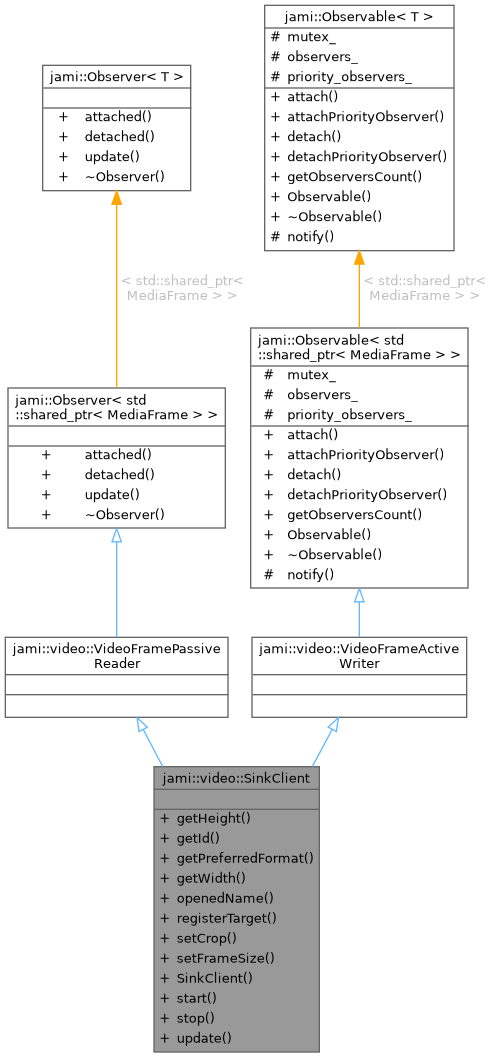

Collaboration diagram for jami::video::SinkClient:

Public Member Functions
int	getHeight () const noexcept
const std::string &	getId () const noexcept
AVPixelFormat	getPreferredFormat () const noexcept
int	getWidth () const noexcept
std::string	openedName () const noexcept
void	registerTarget (libjami::SinkTarget target) noexcept
void	setCrop (int x, int y, int w, int h)
void	setFrameSize (int width, int height)
	SinkClient (const std::string &id="", bool mixer=false)
bool	start () noexcept
bool	stop () noexcept
void	update (Observable< std::shared_ptr< jami::MediaFrame > > *, const std::shared_ptr< jami::MediaFrame > &) override
Public Member Functions inherited from jami::Observer< std::shared_ptr< MediaFrame > >
virtual void	attached (Observable< std::shared_ptr< MediaFrame > > *)
virtual void	detached (Observable< std::shared_ptr< MediaFrame > > *)
virtual void	update (Observable< std::shared_ptr< MediaFrame > > *, const std::shared_ptr< MediaFrame > &)=0
virtual	~Observer ()
Public Member Functions inherited from jami::Observable< std::shared_ptr< MediaFrame > >
bool	attach (Observer< std::shared_ptr< MediaFrame > > *o)
void	attachPriorityObserver (std::shared_ptr< Observer< std::shared_ptr< MediaFrame > > > o)
bool	detach (Observer< std::shared_ptr< MediaFrame > > *o)
void	detachPriorityObserver (Observer< std::shared_ptr< MediaFrame > > *o)
size_t	getObserversCount ()
	Observable ()
virtual	~Observable ()
	~Observable Detach all observers to avoid making them call this observable when destroyed

Additional Inherited Members
Protected Member Functions inherited from jami::Observable< std::shared_ptr< MediaFrame > >
void	notify (std::shared_ptr< MediaFrame > data)
Protected Attributes inherited from jami::Observable< std::shared_ptr< MediaFrame > >
std::mutex	mutex_
std::set< Observer< std::shared_ptr< MediaFrame > > * >	observers_
std::list< std::weak_ptr< Observer< std::shared_ptr< MediaFrame > > > >	priority_observers_

Detailed Description

Definition at line 44 of file sinkclient.h.

Constructor & Destructor Documentation

SinkClient()

jami::video::SinkClient::SinkClient	(	const std::string &	id = "",
		bool	mixer = false
	)

Definition at line 303 of file sinkclient.cpp.

References jami::emitSignal(), getId(), and JAMI_DBG.

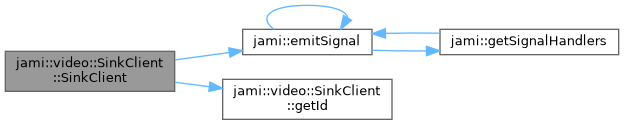

Here is the call graph for this function:

Member Function Documentation

getHeight()

int jami::video::SinkClient::getHeight ( ) const

inlinenoexcept

Definition at line 55 of file sinkclient.h.

getId()

const std::string & jami::video::SinkClient::getId ( ) const

inlinenoexcept

Definition at line 49 of file sinkclient.h.

Referenced by setFrameSize(), and SinkClient().

getPreferredFormat()

AVPixelFormat jami::video::SinkClient::getPreferredFormat ( ) const

inlinenoexcept

Definition at line 57 of file sinkclient.h.

References jami::emitSignal(), and libjami::SinkTarget::preferredFormat.

Here is the call graph for this function:

getWidth()

int jami::video::SinkClient::getWidth ( ) const

inlinenoexcept

Definition at line 53 of file sinkclient.h.

openedName()

std::string jami::video::SinkClient::openedName ( ) const

noexcept

Definition at line 282 of file sinkclient.cpp.

Referenced by setFrameSize().

registerTarget()

void jami::video::SinkClient::registerTarget ( libjami::SinkTarget  target )

inlinenoexcept

Definition at line 68 of file sinkclient.h.

References jami::emitSignal().

Here is the call graph for this function:

setCrop()

void jami::video::SinkClient::setCrop	(	int	x,
		int	y,
		int	w,
		int	h
	)

Definition at line 477 of file sinkclient.cpp.

References JAMI_DBG.

Referenced by stop().

setFrameSize()

void jami::video::SinkClient::setFrameSize	(	int	width,
		int	height
	)

Definition at line 461 of file sinkclient.cpp.

References jami::emitSignal(), getId(), JAMI_DBG, and openedName().

Referenced by stop(), and update().

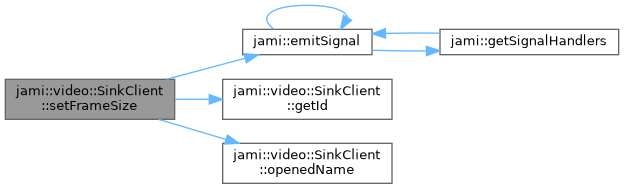

Here is the call graph for this function:

start()

bool jami::video::SinkClient::start ( )

noexcept

Definition at line 288 of file sinkclient.cpp.

stop()

bool jami::video::SinkClient::stop ( )

noexcept

Definition at line 294 of file sinkclient.cpp.

References setCrop(), and setFrameSize().

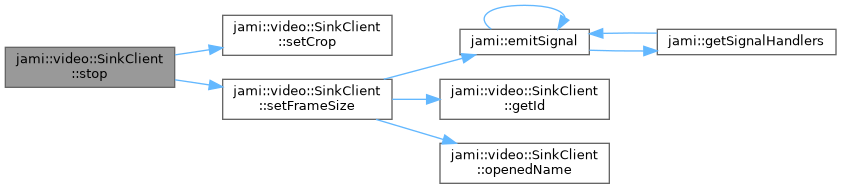

Here is the call graph for this function:

update()

void jami::video::SinkClient::update ( Observable< std::shared_ptr< jami::MediaFrame > > *  , const std::shared_ptr< jami::MediaFrame > &    )

override

Definition at line 400 of file sinkclient.cpp.

References jami::emitSignal(), jami::Observable< std::shared_ptr< MediaFrame > >::getObserversCount(), JAMI_WARNING, jami::video::notify(), libjami::SinkTarget::pull, libjami::SinkTarget::push, and setFrameSize().

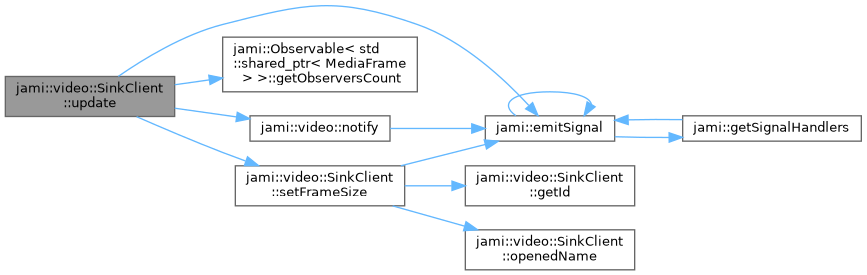

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• sinkclient.h
• sinkclient.cpp
