#include <portaudiolayer.h>

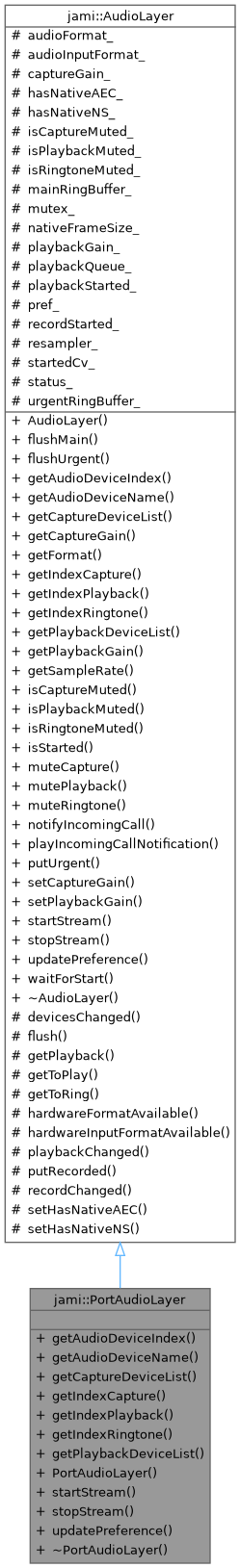

Inheritance diagram for jami::PortAudioLayer:

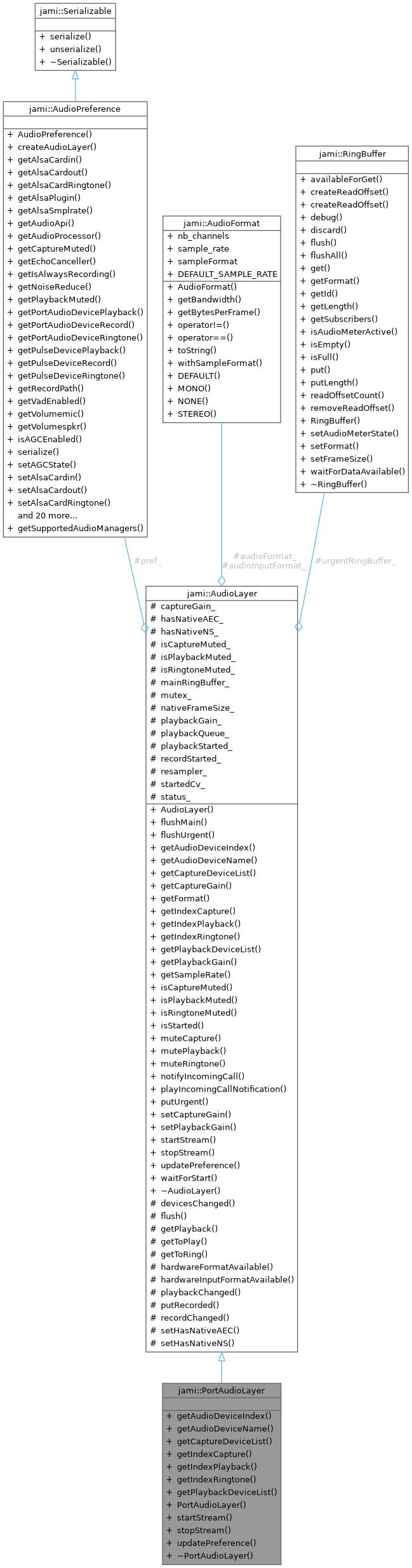

Collaboration diagram for jami::PortAudioLayer:

Classes
struct	PortAudioLayerImpl

Public Member Functions
int	getAudioDeviceIndex (const std::string &name, AudioDeviceType type) const override

std::string	getAudioDeviceName (int index, AudioDeviceType type) const override

std::vector< std::string >	getCaptureDeviceList () const override

int	getIndexCapture () const override

int	getIndexPlayback () const override

int	getIndexRingtone () const override

std::vector< std::string >	getPlaybackDeviceList () const override

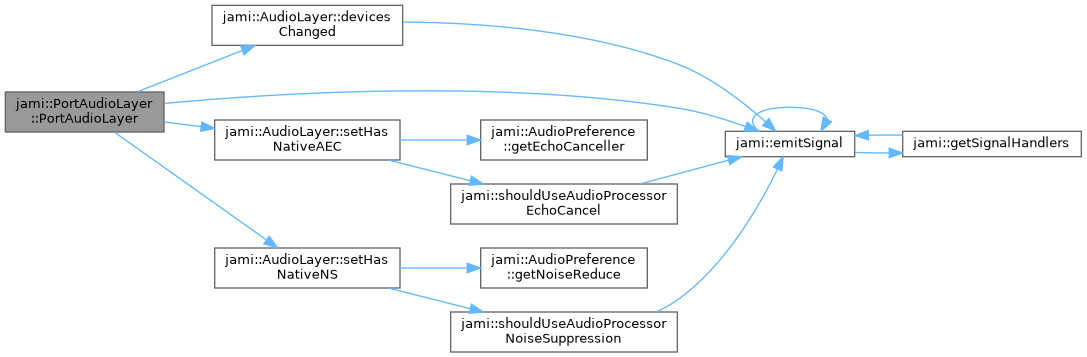

	PortAudioLayer (const AudioPreference &pref)

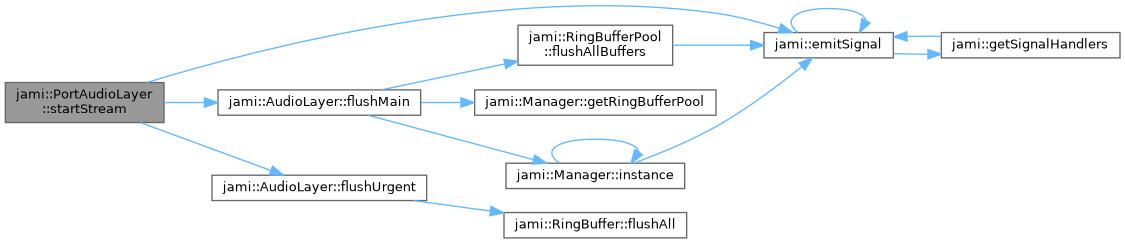

void	startStream (AudioDeviceType stream) override
	Start the capture stream and prepare the playback stream.

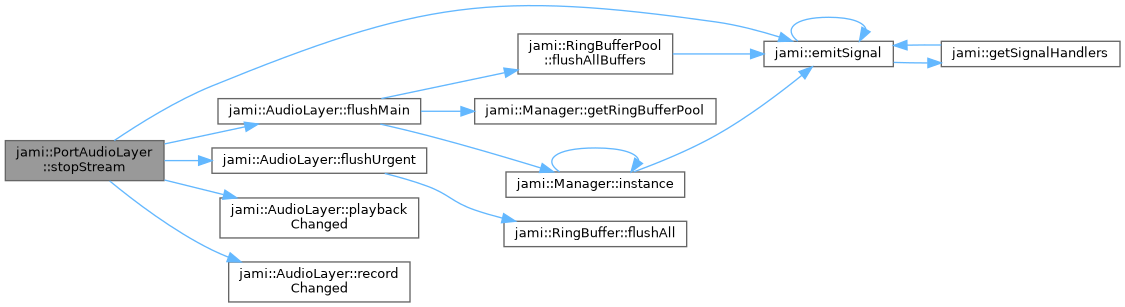

void	stopStream (AudioDeviceType stream=AudioDeviceType::ALL) override
	Stop the playback and capture streams.

void	updatePreference (AudioPreference &pref, int index, AudioDeviceType type) override

	~PortAudioLayer ()

Public Member Functions inherited from jami::AudioLayer
	AudioLayer (const AudioPreference &)

void	flushMain ()
	Flush main buffer.

void	flushUrgent ()
	Flush urgent buffer.

double	getCaptureGain () const
	Get capture stream gain (microphone)

AudioFormat	getFormat () const
	Get the audio format of the layer (sample rate & channel number).

double	getPlaybackGain () const
	Get playback stream gain (speaker)

unsigned int	getSampleRate () const
	Get the sample rate of the audio layer.

bool	isCaptureMuted () const

bool	isPlaybackMuted () const

bool	isRingtoneMuted () const

bool	isStarted () const
	Determine whether or not the audio layer is active (i.e.

void	muteCapture (bool muted)
	Mute capture (microphone)

void	mutePlayback (bool muted)
	Mute playback.

void	muteRingtone (bool muted)

void	notifyIncomingCall ()
	Emit an audio notification (beep) on incoming calls.

void	playIncomingCallNotification (bool play)
	Start/Stop playing the incoming call notification sound (beep) while playing back audio (typically during an ongoing call).

void	putUrgent (std::shared_ptr< AudioFrame > buffer)
	Send a chunk of data to the hardware buffer to start the playback Copy data in the urgent buffer.

void	setCaptureGain (double gain)
	Set capture stream gain (microphone) Range should be [-1.0, 1.0].

void	setPlaybackGain (double gain)
	Set playback stream gain (speaker) Range should be [-1.0, 1.0].

virtual void	startCaptureStream (const std::string &id)
	Start a capture stream on the given device (eg.

virtual void	stopCaptureStream (const std::string &id)
	Stop an ongoing capture stream on the given device.

template<class Rep , class Period >
bool	waitForStart (const std::chrono::duration< Rep, Period > &rel_time) const

virtual	~AudioLayer ()

Additional Inherited Members
Protected Types inherited from jami::AudioLayer
enum class	Status : uint8_t { Idle , Starting , Started }

Protected Member Functions inherited from jami::AudioLayer
void	devicesChanged ()

void	flush ()

std::shared_ptr< AudioFrame >	getPlayback (AudioFormat format, size_t samples)

std::shared_ptr< AudioFrame >	getToPlay (AudioFormat format, size_t writableSamples)

std::shared_ptr< AudioFrame >	getToRing (AudioFormat format, size_t writableSamples)

void	hardwareFormatAvailable (AudioFormat playback, size_t bufSize=0)
	Callback to be called by derived classes when the audio output is opened.

void	hardwareInputFormatAvailable (AudioFormat capture)
	Set the input format on necessary objects.

void	playbackChanged (bool started)

void	putRecorded (std::shared_ptr< AudioFrame > &&frame)

void	recordChanged (bool started)

void	setHasNativeAEC (bool hasEAC)

void	setHasNativeNS (bool hasNS)

Protected Attributes inherited from jami::AudioLayer
AudioFormat	audioFormat_
	Sample Rate that should be sent to the sound card.

AudioFormat	audioInputFormat_
	Sample Rate for input.

double	captureGain_
	Gain applied to mic signal.

bool	hasNativeAEC_ {true}

bool	hasNativeNS_ {false}

bool	isCaptureMuted_
	True if capture is not to be used.

bool	isPlaybackMuted_
	True if playback is not to be used.

bool	isRingtoneMuted_ {false}
	True if ringtone should be muted.

std::shared_ptr< RingBuffer >	mainRingBuffer_
	Buffers for audio processing.

std::mutex	mutex_ {}
	Lock for the entire audio layer.

size_t	nativeFrameSize_ {0}

double	playbackGain_
	Gain applied to playback signal.

std::unique_ptr< AudioFrameResizer >	playbackQueue_

bool	playbackStarted_ {false}

const AudioPreference &	pref_

bool	recordStarted_ {false}

std::unique_ptr< Resampler >	resampler_
	Manage sampling rate conversion.

std::condition_variable	startedCv_

std::atomic< Status >	status_ {Status::Idle}
	Whether or not the audio layer's playback stream is started.

RingBuffer	urgentRingBuffer_
	Urgent ring buffer used for ringtones.
