#include <alsalayer.h>

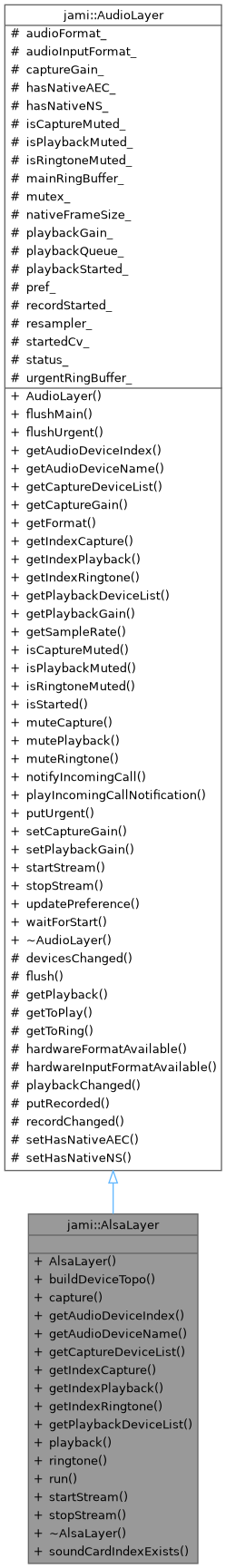

Inheritance diagram for jami::AlsaLayer:

Collaboration diagram for jami::AlsaLayer:

Public Member Functions
	AlsaLayer (const AudioPreference &pref)
	Constructor.

std::string	buildDeviceTopo (const std::string &plugin, int card)
	Concatenate two strings.

void	capture ()

int	getAudioDeviceIndex (const std::string &description, AudioDeviceType type) const
	An index is associated with its string description.

std::string	getAudioDeviceName (int index, AudioDeviceType type) const

virtual std::vector< std::string >	getCaptureDeviceList () const
	Scan the sound card available on the system.

virtual int	getIndexCapture () const
	Get the index of the audio card for capture.

virtual int	getIndexPlayback () const
	Get the index of the audio card for playback.

virtual int	getIndexRingtone () const
	Get the index of the audio card for ringtone (could be differnet from playback)

virtual std::vector< std::string >	getPlaybackDeviceList () const

void	playback ()

void	ringtone ()

void	run ()
	Reimplementation of run()

virtual void	startStream (AudioDeviceType stream)
	Start the capture stream and prepare the playback stream.

virtual void	stopStream (AudioDeviceType stream=AudioDeviceType::ALL)
	Stop the playback and capture streams.

	~AlsaLayer ()
	Destructor.

Public Member Functions inherited from jami::AudioLayer
	AudioLayer (const AudioPreference &)

void	flushMain ()
	Flush main buffer.

void	flushUrgent ()
	Flush urgent buffer.

double	getCaptureGain () const
	Get capture stream gain (microphone)

AudioFormat	getFormat () const
	Get the audio format of the layer (sample rate & channel number).

double	getPlaybackGain () const
	Get playback stream gain (speaker)

unsigned int	getSampleRate () const
	Get the sample rate of the audio layer.

bool	isCaptureMuted () const

bool	isPlaybackMuted () const

bool	isRingtoneMuted () const

bool	isStarted () const
	Determine whether or not the audio layer is active (i.e.

void	muteCapture (bool muted)
	Mute capture (microphone)

void	mutePlayback (bool muted)
	Mute playback.

void	muteRingtone (bool muted)

void	notifyIncomingCall ()
	Emit an audio notification (beep) on incoming calls.

void	playIncomingCallNotification (bool play)
	Start/Stop playing the incoming call notification sound (beep) while playing back audio (typically during an ongoing call).

void	putUrgent (std::shared_ptr< AudioFrame > buffer)
	Send a chunk of data to the hardware buffer to start the playback Copy data in the urgent buffer.

void	setCaptureGain (double gain)
	Set capture stream gain (microphone) Range should be [-1.0, 1.0].

void	setPlaybackGain (double gain)
	Set playback stream gain (speaker) Range should be [-1.0, 1.0].

virtual void	startCaptureStream (const std::string &id)
	Start a capture stream on the given device (eg.

virtual void	stopCaptureStream (const std::string &id)
	Stop an ongoing capture stream on the given device.

template<class Rep , class Period >
bool	waitForStart (const std::chrono::duration< Rep, Period > &rel_time) const

virtual	~AudioLayer ()

Static Public Member Functions
static bool	soundCardIndexExists (int card, AudioDeviceType stream)
	Check if the given index corresponds to an existing sound card and supports the specified streaming mode.

Additional Inherited Members
Protected Types inherited from jami::AudioLayer
enum class	Status : uint8_t { Idle , Starting , Started }

Protected Member Functions inherited from jami::AudioLayer
void	devicesChanged ()

void	flush ()

std::shared_ptr< AudioFrame >	getPlayback (AudioFormat format, size_t samples)

std::shared_ptr< AudioFrame >	getToPlay (AudioFormat format, size_t writableSamples)

std::shared_ptr< AudioFrame >	getToRing (AudioFormat format, size_t writableSamples)

void	hardwareFormatAvailable (AudioFormat playback, size_t bufSize=0)
	Callback to be called by derived classes when the audio output is opened.

void	hardwareInputFormatAvailable (AudioFormat capture)
	Set the input format on necessary objects.

void	playbackChanged (bool started)

void	putRecorded (std::shared_ptr< AudioFrame > &&frame)

void	recordChanged (bool started)

void	setHasNativeAEC (bool hasEAC)

void	setHasNativeNS (bool hasNS)

Protected Attributes inherited from jami::AudioLayer
AudioFormat	audioFormat_
	Sample Rate that should be sent to the sound card.

AudioFormat	audioInputFormat_
	Sample Rate for input.

double	captureGain_
	Gain applied to mic signal.

bool	hasNativeAEC_ {true}

bool	hasNativeNS_ {false}

bool	isCaptureMuted_
	True if capture is not to be used.

bool	isPlaybackMuted_
	True if playback is not to be used.

bool	isRingtoneMuted_ {false}
	True if ringtone should be muted.

std::shared_ptr< RingBuffer >	mainRingBuffer_
	Buffers for audio processing.

std::mutex	mutex_ {}
	Lock for the entire audio layer.

size_t	nativeFrameSize_ {0}

double	playbackGain_
	Gain applied to playback signal.

std::unique_ptr< AudioFrameResizer >	playbackQueue_

bool	playbackStarted_ {false}

const AudioPreference &	pref_

bool	recordStarted_ {false}

std::unique_ptr< Resampler >	resampler_
	Manage sampling rate conversion.

std::condition_variable	startedCv_

std::atomic< Status >	status_ {Status::Idle}
	Whether or not the audio layer's playback stream is started.

RingBuffer	urgentRingBuffer_
	Urgent ring buffer used for ringtones.

Detailed Description

Definition at line 47 of file alsalayer.h.

Constructor & Destructor Documentation

◆ AlsaLayer()

jami::AlsaLayer::AlsaLayer ( const AudioPreference & pref )

Constructor.

Definition at line 36 of file alsalayer.cpp.

References jami::AudioLayer::setHasNativeAEC(), and jami::AudioLayer::setHasNativeNS().

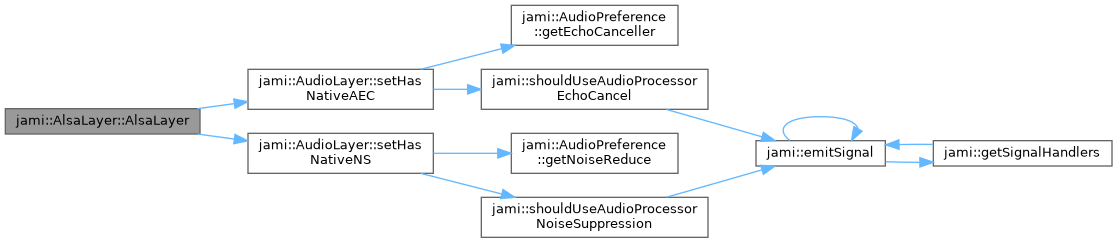

Here is the call graph for this function:

◆ ~AlsaLayer()

jami::AlsaLayer::~AlsaLayer ( )

Destructor.

Definition at line 47 of file alsalayer.cpp.

References jami::AudioLayer::Idle, and jami::AudioLayer::status_.

Member Function Documentation

◆ buildDeviceTopo()

std::string jami::AlsaLayer::buildDeviceTopo	(	const std::string &	plugin,
		int	card
	)

Concatenate two strings.

Used to build a valid pcm device name.

Parameters

plugin	the alsa PCM name
card	the sound card number

Returns: std::string the concatenated string

Definition at line 501 of file alsalayer.cpp.

References jami::emitSignal(), and PCM_DEFAULT.

Referenced by startStream().

Here is the call graph for this function:

◆ capture()

void jami::AlsaLayer::capture ( )

Definition at line 653 of file alsalayer.cpp.

References jami::emitSignal(), JAMI_ERR, and jami::AudioLayer::putRecorded().

Referenced by run().

Here is the call graph for this function:

◆ getAudioDeviceIndex()

int jami::AlsaLayer::getAudioDeviceIndex	(	const std::string &	description,
		AudioDeviceType	type
	)		const

virtual

An index is associated with its string description.

Parameters

description The string description

Returns: int Its index

Implements jami::AudioLayer.

Definition at line 620 of file alsalayer.cpp.

References jami::CAPTURE.

◆ getAudioDeviceName()

std::string jami::AlsaLayer::getAudioDeviceName	(	int	index,
		AudioDeviceType	type
	)		const

virtual

Implements jami::AudioLayer.

Definition at line 633 of file alsalayer.cpp.

References jami::CAPTURE, getCaptureDeviceList(), getPlaybackDeviceList(), JAMI_ERR, jami::PLAYBACK, and jami::RINGTONE.

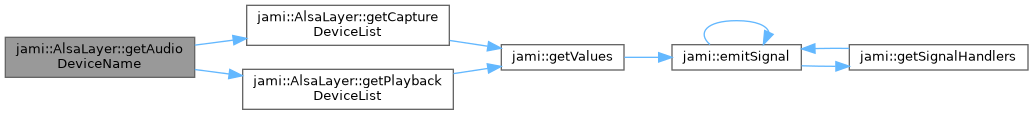

Here is the call graph for this function:

◆ getCaptureDeviceList()

std::vector< std::string > jami::AlsaLayer::getCaptureDeviceList ( ) const

virtual

Scan the sound card available on the system.

Returns: std::vector<std::string> The vector containing the string description of the card

Implements jami::AudioLayer.

Definition at line 539 of file alsalayer.cpp.

References jami::getValues().

Referenced by getAudioDeviceName().

Here is the call graph for this function:

◆ getIndexCapture()

virtual int jami::AlsaLayer::getIndexCapture ( ) const

inlinevirtual

Get the index of the audio card for capture.

Returns: int The index of the card used for capture 0 for the first available card on the system, 1 ...

Implements jami::AudioLayer.

Definition at line 119 of file alsalayer.h.

◆ getIndexPlayback()

virtual int jami::AlsaLayer::getIndexPlayback ( ) const

inlinevirtual

Get the index of the audio card for playback.

Returns: int The index of the card used for playback 0 for the first available card on the system, 1 ...

Implements jami::AudioLayer.

Definition at line 126 of file alsalayer.h.

Referenced by startStream().

◆ getIndexRingtone()

virtual int jami::AlsaLayer::getIndexRingtone ( ) const

inlinevirtual

Get the index of the audio card for ringtone (could be differnet from playback)

Returns: int The index of the card used for ringtone 0 for the first available card on the system, 1 ...

Implements jami::AudioLayer.

Definition at line 133 of file alsalayer.h.

Referenced by startStream().

◆ getPlaybackDeviceList()

std::vector< std::string > jami::AlsaLayer::getPlaybackDeviceList ( ) const

virtual

Implements jami::AudioLayer.

Definition at line 545 of file alsalayer.cpp.

References jami::getValues().

Referenced by getAudioDeviceName().

Here is the call graph for this function:

◆ playback()

void jami::AlsaLayer::playback ( )

Definition at line 675 of file alsalayer.cpp.

References jami::AudioLayer::audioFormat_, jami::emitSignal(), jami::AudioLayer::getToPlay(), and jami::safeUpdate().

Referenced by run().

Here is the call graph for this function:

◆ ringtone()

void jami::AlsaLayer::ringtone ( )

Definition at line 692 of file alsalayer.cpp.

References jami::AudioLayer::audioFormat_, jami::emitSignal(), jami::AudioLayer::getToRing(), and jami::safeUpdate().

Referenced by run().

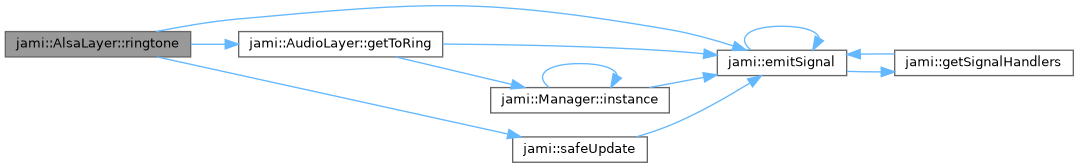

Here is the call graph for this function:

◆ run()

void jami::AlsaLayer::run ( )

Reimplementation of run()

Definition at line 62 of file alsalayer.cpp.

References capture(), jami::emitSignal(), playback(), jami::AudioLayer::playbackChanged(), jami::AudioLayer::recordChanged(), ringtone(), jami::AudioLayer::Started, and jami::AudioLayer::status_.

Here is the call graph for this function:

◆ soundCardIndexExists()

bool jami::AlsaLayer::soundCardIndexExists	(	int	card,
		AudioDeviceType	stream
	)

static

Check if the given index corresponds to an existing sound card and supports the specified streaming mode.

Parameters

card	An index
stream	The stream mode AudioDeviceType::CAPTURE AudioDeviceType::PLAYBACK AudioDeviceType::RINGTONE

Returns: bool True if it exists and supports the mode false otherwise

Definition at line 602 of file alsalayer.cpp.

References jami::emitSignal(), and jami::PLAYBACK.

Here is the call graph for this function:

◆ startStream()

void jami::AlsaLayer::startStream ( AudioDeviceType stream )

virtual

Start the capture stream and prepare the playback stream.

The playback starts accordingly to its threshold ALSA Library API

Implements jami::AudioLayer.

Definition at line 116 of file alsalayer.cpp.

References ALSA_CAPTURE_DEVICE, ALSA_PLAYBACK_DEVICE, jami::AudioLayer::audioFormat_, jami::AudioLayer::audioInputFormat_, buildDeviceTopo(), jami::CAPTURE, jami::emitSignal(), jami::AudioLayer::getFormat(), getIndexPlayback(), getIndexRingtone(), jami::AudioLayer::hardwareFormatAvailable(), jami::AudioLayer::mutex_, PCM_DMIX, PCM_DMIX_DSNOOP, PCM_DSNOOP, jami::PLAYBACK, jami::RINGTONE, jami::AudioLayer::Started, jami::AudioLayer::Starting, and jami::AudioLayer::status_.

Here is the call graph for this function:

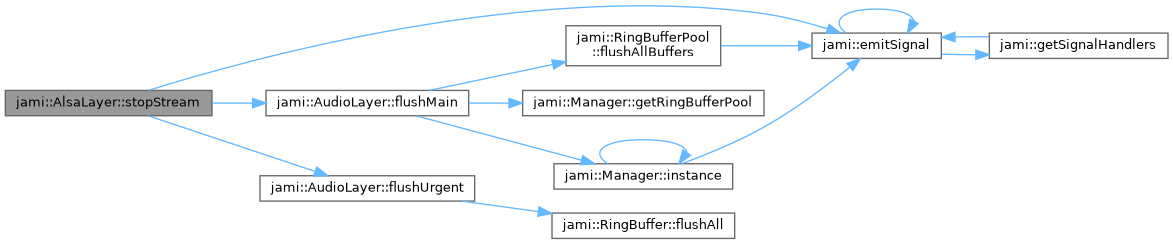

◆ stopStream()

void jami::AlsaLayer::stopStream ( AudioDeviceType stream = AudioDeviceType::ALL )

virtual

Stop the playback and capture streams.

Drops the pending frames and put the capture and playback handles to PREPARED state ALSA Library API

Implements jami::AudioLayer.

Definition at line 161 of file alsalayer.cpp.

References jami::CAPTURE, jami::emitSignal(), jami::AudioLayer::flushMain(), jami::AudioLayer::flushUrgent(), jami::AudioLayer::Idle, jami::AudioLayer::mutex_, jami::PLAYBACK, jami::RINGTONE, and jami::AudioLayer::status_.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AlsaLayer()

◆ ~AlsaLayer()

Member Function Documentation

◆ buildDeviceTopo()

◆ capture()

◆ getAudioDeviceIndex()

◆ getAudioDeviceName()

◆ getCaptureDeviceList()

◆ getIndexCapture()

◆ getIndexPlayback()

◆ getIndexRingtone()

◆ getPlaybackDeviceList()

◆ playback()

◆ ringtone()

◆ run()

◆ soundCardIndexExists()

◆ startStream()

◆ stopStream()
