Namespaces
namespace	crypto

namespace	keccak

Classes
class	FixedHash
	Fixed-size raw-byte array container type, with an API optimised for storing hashes. More...

class	KeyPair
	Simple class that represents a "key pair". More...

class	ScopeGuard
	RAII utility class whose destructor calls a given function. More...

class	SecureFixedHash

struct	SignatureStruct

struct	StaticLog2
	Compile-time calculation of Log2 of constant values. More...

struct	StaticLog2< 1 >

class	vector_ref
	A modifiable reference to an existing object or vector in memory. More...

Typedefs
using	Address = h160
	An Ethereum address: 20 bytes.

using	Addresses = h160s
	A vector of Ethereum addresses.

using	AddressHash = std::unordered_set< h160 >
	A hash set of Ethereum addresses.

using	bytes = std::vector< uint8_t >

using	bytesConstRef = vector_ref< uint8_t const >

using	BytesMap = std::map< bytes, bytes >

using	bytesRef = vector_ref< uint8_t >

using	h1024 = FixedHash< 128 >

using	h128 = FixedHash< 16 >

using	h160 = FixedHash< 20 >

using	h160Hash = std::unordered_set< h160 >

using	h160s = std::vector< h160 >

using	h160Set = std::set< h160 >

using	h2048 = FixedHash< 256 >

using	h256 = FixedHash< 32 >

using	h256Hash = std::unordered_set< h256 >

using	h256s = std::vector< h256 >

using	h256Set = std::set< h256 >

using	h512 = FixedHash< 64 >

using	h512s = std::vector< h512 >

using	h520 = FixedHash< 65 >

using	h64 = FixedHash< 8 >

using	HexMap = std::map< bytes, bytes >

using	Public = h512
	A public key: 64 bytes.

using	Secret = SecureFixedHash< 32 >

using	Secrets = std::vector< Secret >
	A vector of secrets.

using	Signature = h520
	A signature: 65 bytes: r: [0, 32), s: [32, 64), v: 64.

using	string32 = std::array< char, 32 >

using	StringHashMap = std::unordered_map< std::string, std::string >

using	StringMap = std::map< std::string, std::string >

using	strings = std::vector< std::string >

Enumerations
enum class	WhenError { DontThrow = 0 , Throw = 1 }

enum class	WithExisting : int { Trust = 0 , Verify , Rescue , Kill }

Functions
bytes	asBytes (std::string const &_b)
	Converts a string to a byte array containing the string's (byte) data.

bytes	asNibbles (bytesConstRef const &_s)

std::string	asString (bytes const &_b)
	Converts byte array to a string containing the same (binary) data.

std::string	asString (bytesConstRef _b)
	Converts byte array ref to a string containing the same (binary) data.

template<class T , class _U >
unsigned	commonPrefix (T const &_t, _U const &_u)

template<class T , class V >
bool	contains (T const &_t, V const &_v)

template<class N >
N	diff (N const &_a, N const &_b)

template<class T , class _In >
T	fromBigEndian (_In const &_bytes)
	Converts a big-endian byte-stream represented on a templated collection to a templated integer value.

bytes	fromHex (std::string const &_s, WhenError _throw=WhenError::DontThrow)

template<class T >
static bool	isHash (std::string const &_hash)

bool	isHex (std::string const &_s) noexcept

template<class T , class U >
std::vector< T >	keysOf (std::map< T, U > const &_m)

template<class T , class U >
std::vector< T >	keysOf (std::unordered_map< T, U > const &_m)

template<class T , class U >
std::set< T >	operator+ (std::set< T > _a, U const &_b)
	Insert the contents of a container into a set.

template<class T , class U >
std::unordered_set< T >	operator+ (std::unordered_set< T > _a, U const &_b)
	Insert the contents of a container into an unordered_set.

template<class T , class U >
std::vector< T >	operator+ (std::vector< T > _a, U const &_b)
	Concatenate the contents of a container onto a vector.

template<class T >
std::vector< T >	operator+ (std::vector< T > const &_a, std::vector< T > const &_b)
	Concatenate two vectors of elements.

template<class T , class U >
std::set< T > &	operator+= (std::set< T > &_a, U const &_b)
	Insert the contents of a container into a set.

template<class T , class U >
std::unordered_set< T > &	operator+= (std::unordered_set< T > &_a, U const &_b)
	Insert the contents of a container into an unordered_set.

template<class T , class U >
std::vector< T > &	operator+= (std::vector< T > &_a, U const &_b)
	Concatenate the contents of a container onto a vector.

template<class T >
std::vector< T > &	operator+= (std::vector< typename std::enable_if< std::is_pod< T >::value, T >::type > &_a, std::vector< T > const &_b)
	Concatenate two vectors of elements of POD types.

template<class T >
std::vector< T > &	operator+= (std::vector< typename std::enable_if<!std::is_pod< T >::value, T >::type > &_a, std::vector< T > const &_b)
	Concatenate two vectors of elements.

template<class T , class _U >
void	pushFront (T &_t, _U _e)
	Pushes an element on to the front of a collection.

template<class _T >
vector_ref< _T >	ref (_T &_t)

template<class _T >
vector_ref< _T const >	ref (_T const &_t)

template<class _T >
vector_ref< _T >	ref (std::vector< _T > &_t)

template<class _T >
vector_ref< _T const >	ref (std::vector< _T > const &_t)

h160	right160 (h256 const &_t)
	Convert the given value into h160 (160-bit unsigned integer) using the right 20 bytes.

h256	sha3 (bytes const &_input)
	Calculate SHA3-256 hash of the given input, returning as a 256-bit hash.

h256	sha3 (bytesConstRef _input)
	Calculate SHA3-256 hash of the given input, returning as a 256-bit hash.

bool	sha3 (bytesConstRef _input, bytesRef o_output)
	Calculate SHA3-256 hash of the given input and load it into the given output.

template<unsigned N>
h256	sha3 (FixedHash< N > const &_input)
	Calculate SHA3-256 hash of the given input (presented as a FixedHash), returns a 256-bit hash.

h256	sha3 (std::string const &_input)
	Calculate SHA3-256 hash of the given input (presented as a binary-filled string), returning as a 256-bit hash.

std::string	sha3 (std::string const &_input, bool _isNibbles)
	Calculate SHA3-256 hash of the given input, possibly interpreting it as nibbles, and return the hash as a string filled with binary data.

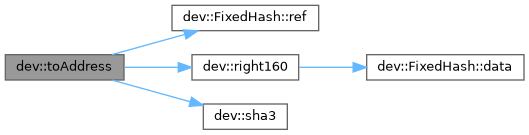

Address	toAddress (Public const &_public)
	Convert a public key to address.

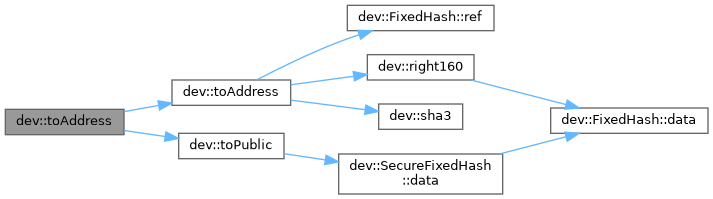

Address	toAddress (Secret const &_secret)
	Convert a secret key into address of public key equivalent.

bytes	toCompactBigEndian (uint8_t _val, unsigned _min=0)

template<class Iterator >
std::string	toHex (Iterator _it, Iterator _end, std::string _prefix)

template<class T >
std::string	toHex (T const &_data)

template<class T >
std::string	toHexPrefixed (T const &_data)

Public	toPublic (Secret const &_secret)
	Convert a secret key into the public key equivalent.

template<class T >
void	trimFront (T &_t, unsigned _elements)
	Trims a given number of elements from the front of a collection.

template<class T , class U >
std::vector< U >	valuesOf (std::map< T, U > const &_m)

template<class T , class U >
std::vector< U >	valuesOf (std::unordered_map< T, U > const &_m)

Variables
h256	EmptySHA3 = sha3(bytesConstRef())

std::string const	EmptyString

char const *	Version

Typedef Documentation

◆ Address

typedef h160 dev::Address

An Ethereum address: 20 bytes.

@NOTE This is not endian-specific; it's just a bunch of bytes.

Definition at line 29 of file Address.h.

◆ Addresses

using dev::Addresses = typedef h160s

A vector of Ethereum addresses.

Definition at line 32 of file Address.h.

◆ AddressHash

using dev::AddressHash = typedef std::unordered_set<h160>

A hash set of Ethereum addresses.

Definition at line 35 of file Address.h.

◆ bytes

using dev::bytes = typedef std::vector<uint8_t>

Definition at line 72 of file libdevcore/Common.h.

◆ bytesConstRef

using dev::bytesConstRef = typedef vector_ref<uint8_t const>

Definition at line 74 of file libdevcore/Common.h.

◆ BytesMap

using dev::BytesMap = typedef std::map<bytes, bytes>

Definition at line 78 of file libdevcore/Common.h.

◆ bytesRef

using dev::bytesRef = typedef vector_ref<uint8_t>

Definition at line 73 of file libdevcore/Common.h.

◆ h1024

using dev::h1024 = typedef FixedHash<128>

Definition at line 465 of file FixedHash.h.

◆ h128

using dev::h128 = typedef FixedHash<16>

Definition at line 470 of file FixedHash.h.

◆ h160

typedef FixedHash< 20 > dev::h160

Definition at line 469 of file FixedHash.h.

◆ h160Hash

using dev::h160Hash = typedef std::unordered_set<h160>

Definition at line 478 of file FixedHash.h.

◆ h160s

using dev::h160s = typedef std::vector<h160>

Definition at line 474 of file FixedHash.h.

◆ h160Set

using dev::h160Set = typedef std::set<h160>

Definition at line 476 of file FixedHash.h.

◆ h2048

using dev::h2048 = typedef FixedHash<256>

Definition at line 464 of file FixedHash.h.

◆ h256

using dev::h256 = typedef FixedHash<32>

Definition at line 468 of file FixedHash.h.

◆ h256Hash

using dev::h256Hash = typedef std::unordered_set<h256>

Definition at line 477 of file FixedHash.h.

◆ h256s

using dev::h256s = typedef std::vector<h256>

Definition at line 473 of file FixedHash.h.

◆ h256Set

using dev::h256Set = typedef std::set<h256>

Definition at line 475 of file FixedHash.h.

◆ h512

using dev::h512 = typedef FixedHash<64>

Definition at line 467 of file FixedHash.h.

◆ h512s

using dev::h512s = typedef std::vector<h512>

Definition at line 472 of file FixedHash.h.

◆ h520

using dev::h520 = typedef FixedHash<65>

Definition at line 466 of file FixedHash.h.

◆ h64

using dev::h64 = typedef FixedHash<8>

Definition at line 471 of file FixedHash.h.

◆ HexMap

using dev::HexMap = typedef std::map<bytes, bytes>

Definition at line 79 of file libdevcore/Common.h.

◆ Public

using dev::Public = typedef h512

A public key: 64 bytes.

@NOTE This is not endian-specific; it's just a bunch of bytes.

Definition at line 38 of file libdevcrypto/Common.h.

◆ Secret

using dev::Secret = typedef SecureFixedHash<32>

Definition at line 34 of file libdevcrypto/Common.h.

◆ Secrets

using dev::Secrets = typedef std::vector<Secret>

A vector of secrets.

Definition at line 64 of file libdevcrypto/Common.h.

◆ Signature

using dev::Signature = typedef h520

A signature: 65 bytes: r: [0, 32), s: [32, 64), v: 64.

@NOTE This is not endian-specific; it's just a bunch of bytes.

Definition at line 42 of file libdevcrypto/Common.h.

◆ string32

using dev::string32 = typedef std::array<char, 32>

Definition at line 88 of file libdevcore/Common.h.

◆ StringHashMap

using dev::StringHashMap = typedef std::unordered_map<std::string, std::string>

Definition at line 82 of file libdevcore/Common.h.

◆ StringMap

using dev::StringMap = typedef std::map<std::string, std::string>

Definition at line 77 of file libdevcore/Common.h.

◆ strings

using dev::strings = typedef std::vector<std::string>

Definition at line 85 of file libdevcore/Common.h.

Enumeration Type Documentation

◆ WhenError

enum class dev::WhenError

strong

Enumerator
DontThrow
Throw

Definition at line 38 of file CommonData.h.

◆ WithExisting

enum class dev::WithExisting : int

strong

Enumerator
Trust
Verify
Rescue
Kill

Definition at line 118 of file libdevcore/Common.h.

Function Documentation

◆ asBytes()

bytes dev::asBytes ( std::string const & _b )

inline

Converts a string to a byte array containing the string's (byte) data.

Definition at line 115 of file CommonData.h.

Referenced by sha3().

◆ asNibbles()

bytes dev::asNibbles ( bytesConstRef const & _s )

Definition at line 82 of file CommonData.cpp.

References dev::vector_ref< _T >::size().

Here is the call graph for this function:

◆ asString() [1/2]

std::string dev::asString ( bytes const & _b )

inline

Converts byte array to a string containing the same (binary) data.

Unless the byte array happens to contain ASCII data, this won't be printable.

Definition at line 100 of file CommonData.h.

Referenced by sha3().

◆ asString() [2/2]

std::string dev::asString ( bytesConstRef _b )

inline

Converts byte array ref to a string containing the same (binary) data.

Unless the byte array happens to contain ASCII data, this won't be printable.

Definition at line 108 of file CommonData.h.

References dev::vector_ref< _T >::data(), and dev::vector_ref< _T >::size().

Here is the call graph for this function:

◆ commonPrefix()

template<class T , class _U >

unsigned dev::commonPrefix	(	T const &	_t,
		_U const &	_u
	)

Definition at line 153 of file CommonData.h.

◆ contains()

template<class T , class V >

bool dev::contains	(	T const &	_t,
		V const &	_v
	)

Definition at line 314 of file CommonData.h.

◆ diff()

template<class N >

N dev::diff	(	N const &	_a,
		N const &	_b
	)

inline

Returns: the absolute distance between _a and _b.

Definition at line 93 of file libdevcore/Common.h.

◆ fromBigEndian()

template<class T , class _In >

T dev::fromBigEndian ( _In const & _bytes )

inline

Converts a big-endian byte-stream represented on a templated collection to a templated integer value.

_In will typically be either std::string or bytes. T will typically by unsigned, u160, u256 or bigint.

Definition at line 132 of file CommonData.h.

◆ fromHex()

bytes dev::fromHex	(	std::string const &	_s,
		WhenError	_throw = `WhenError::DontThrow`
	)

Definition at line 53 of file CommonData.cpp.

Referenced by sha3().

◆ isHash()

template<class T >

static bool dev::isHash ( std::string const & _hash )

static

Returns: true if _hash is a hash conforming to FixedHash type T.

Definition at line 91 of file CommonData.h.

References isHex().

Here is the call graph for this function:

◆ isHex()

bool dev::isHex ( std::string const & _s )

noexcept

Returns: true if _s is a hex string.

Referenced by isHash().

◆ keysOf() [1/2]

template<class T , class U >

std::vector< T > dev::keysOf ( std::map< T, U > const & _m )

Definition at line 272 of file CommonData.h.

◆ keysOf() [2/2]

template<class T , class U >

std::vector< T > dev::keysOf ( std::unordered_map< T, U > const & _m )

Definition at line 282 of file CommonData.h.

◆ operator+() [1/4]

template<class T , class U >

std::set< T > dev::operator+	(	std::set< T >	_a,
		U const &	_b
	)

Insert the contents of a container into a set.

Definition at line 240 of file CommonData.h.

◆ operator+() [2/4]

template<class T , class U >

std::unordered_set< T > dev::operator+	(	std::unordered_set< T >	_a,
		U const &	_b
	)

Insert the contents of a container into an unordered_set.

Definition at line 248 of file CommonData.h.

◆ operator+() [3/4]

template<class T , class U >

std::vector< T > dev::operator+	(	std::vector< T >	_a,
		U const &	_b
	)

Concatenate the contents of a container onto a vector.

Definition at line 256 of file CommonData.h.

◆ operator+() [4/4]

template<class T >

std::vector< T > dev::operator+	(	std::vector< T > const &	_a,
		std::vector< T > const &	_b
	)

inline

Concatenate two vectors of elements.

Definition at line 264 of file CommonData.h.

◆ operator+=() [1/5]

template<class T , class U >

std::set< T > & dev::operator+=	(	std::set< T > &	_a,
		U const &	_b
	)

Insert the contents of a container into a set.

Definition at line 210 of file CommonData.h.

◆ operator+=() [2/5]

template<class T , class U >

std::unordered_set< T > & dev::operator+=	(	std::unordered_set< T > &	_a,
		U const &	_b
	)

Insert the contents of a container into an unordered_set.

Definition at line 220 of file CommonData.h.

◆ operator+=() [3/5]

template<class T , class U >

std::vector< T > & dev::operator+=	(	std::vector< T > &	_a,
		U const &	_b
	)

Concatenate the contents of a container onto a vector.

Definition at line 230 of file CommonData.h.

◆ operator+=() [4/5]

template<class T >

std::vector< T > & dev::operator+=	(	std::vector< typename std::enable_if< std::is_pod< T >::value, T >::type > &	_a,
		std::vector< T > const &	_b
	)

inline

Concatenate two vectors of elements of POD types.

Definition at line 188 of file CommonData.h.

◆ operator+=() [5/5]

template<class T >

std::vector< T > & dev::operator+=	(	std::vector< typename std::enable_if<!std::is_pod< T >::value, T >::type > &	_a,
		std::vector< T > const &	_b
	)

inline

Concatenate two vectors of elements.

Definition at line 199 of file CommonData.h.

◆ pushFront()

template<class T , class _U >

void dev::pushFront	(	T &	_t,
		_U	_e
	)

Pushes an element on to the front of a collection.

Only works for POD element types.

Definition at line 177 of file CommonData.h.

◆ ref() [1/4]

template<class _T >

vector_ref< _T > dev::ref ( _T & _t )

Definition at line 190 of file vector_ref.h.

◆ ref() [2/4]

template<class _T >

vector_ref< _T const > dev::ref ( _T const & _t )

Definition at line 184 of file vector_ref.h.

◆ ref() [3/4]

template<class _T >

vector_ref< _T > dev::ref ( std::vector< _T > & _t )

Definition at line 202 of file vector_ref.h.

◆ ref() [4/4]

template<class _T >

vector_ref< _T const > dev::ref ( std::vector< _T > const & _t )

Definition at line 196 of file vector_ref.h.

◆ right160()

h160 dev::right160 ( h256 const & _t )

inline

Convert the given value into h160 (160-bit unsigned integer) using the right 20 bytes.

Definition at line 482 of file FixedHash.h.

References dev::FixedHash< N >::data().

Referenced by toAddress().

Here is the call graph for this function:

◆ sha3() [1/6]

h256 dev::sha3 ( bytes const & _input )

inline

Calculate SHA3-256 hash of the given input, returning as a 256-bit hash.

Definition at line 49 of file SHA3.h.

References sha3().

Here is the call graph for this function:

◆ sha3() [2/6]

h256 dev::sha3 ( bytesConstRef _input )

inline

Calculate SHA3-256 hash of the given input, returning as a 256-bit hash.

Definition at line 40 of file SHA3.h.

References dev::FixedHash< N >::ref(), and sha3().

Here is the call graph for this function:

◆ sha3() [3/6]

bool dev::sha3	(	bytesConstRef	_input,
		bytesRef	o_output
	)

Calculate SHA3-256 hash of the given input and load it into the given output.

Returns: false if o_output.size() != 32.

Definition at line 197 of file SHA3.cpp.

Referenced by sha3(), sha3(), sha3(), sha3(), sha3(), and toAddress().

◆ sha3() [4/6]

template<unsigned N>

h256 dev::sha3 ( FixedHash< N > const & _input )

inline

Calculate SHA3-256 hash of the given input (presented as a FixedHash), returns a 256-bit hash.

Definition at line 65 of file SHA3.h.

References dev::FixedHash< N >::ref(), and sha3().

Here is the call graph for this function:

◆ sha3() [5/6]

h256 dev::sha3 ( std::string const & _input )

inline

Calculate SHA3-256 hash of the given input (presented as a binary-filled string), returning as a 256-bit hash.

Definition at line 57 of file SHA3.h.

References sha3().

Here is the call graph for this function:

◆ sha3() [6/6]

std::string dev::sha3	(	std::string const &	_input,
		bool	_isNibbles
	)

inline

Calculate SHA3-256 hash of the given input, possibly interpreting it as nibbles, and return the hash as a string filled with binary data.

Definition at line 73 of file SHA3.h.

References asBytes(), asString(), fromHex(), and sha3().

Here is the call graph for this function:

◆ toAddress() [1/2]

Address dev::toAddress ( Public const & _public )

Convert a public key to address.

Definition at line 79 of file Common.cpp.

References dev::FixedHash< N >::ref(), right160(), and sha3().

Referenced by dev::KeyPair::KeyPair(), and toAddress().

Here is the call graph for this function:

◆ toAddress() [2/2]

Address dev::toAddress ( Secret const & _secret )

Convert a secret key into address of public key equivalent.

Returns: 0 if it's not a valid secret key.

Definition at line 85 of file Common.cpp.

References toAddress(), and toPublic().

Here is the call graph for this function:

◆ toCompactBigEndian()

bytes dev::toCompactBigEndian	(	uint8_t	_val,
		unsigned	_min = `0`
	)

inline

Definition at line 141 of file CommonData.h.

◆ toHex() [1/2]

template<class Iterator >

std::string dev::toHex	(	Iterator	_it,
		Iterator	_end,
		std::string	_prefix
	)

Definition at line 45 of file CommonData.h.

Referenced by dev::FixedHash< N >::abridged(), dev::FixedHash< N >::abridgedMiddle(), dev::FixedHash< N >::hex(), toHex(), and toHexPrefixed().

◆ toHex() [2/2]

template<class T >

std::string dev::toHex ( T const & _data )

Definition at line 65 of file CommonData.h.

References toHex().

Here is the call graph for this function:

◆ toHexPrefixed()

template<class T >

std::string dev::toHexPrefixed ( T const & _data )

Definition at line 74 of file CommonData.h.

References toHex().

Here is the call graph for this function:

◆ toPublic()

Public dev::toPublic ( Secret const & _secret )

Convert a secret key into the public key equivalent.

Definition at line 57 of file Common.cpp.

References dev::FixedHash< N >::ConstructFromPointer, and dev::SecureFixedHash< T >::data().

Referenced by toAddress().

Here is the call graph for this function:

◆ trimFront()

template<class T >

void dev::trimFront	(	T &	_t,
		unsigned	_elements
	)

Trims a given number of elements from the front of a collection.

Only works for POD element types.

Definition at line 166 of file CommonData.h.

◆ valuesOf() [1/2]

template<class T , class U >

std::vector< U > dev::valuesOf ( std::map< T, U > const & _m )

Definition at line 292 of file CommonData.h.

◆ valuesOf() [2/2]

template<class T , class U >

std::vector< U > dev::valuesOf ( std::unordered_map< T, U > const & _m )

Definition at line 303 of file CommonData.h.

Variable Documentation

◆ EmptySHA3

h256 dev::EmptySHA3 = sha3(bytesConstRef())

Definition at line 32 of file SHA3.cpp.

◆ EmptyString

std::string const dev::EmptyString

extern

◆ Version

char const* dev::Version

extern

Namespaces

Classes

Typedefs

Enumerations

Functions

Variables

Typedef Documentation

◆ Address

◆ Addresses

◆ AddressHash

◆ bytes

◆ bytesConstRef

◆ BytesMap

◆ bytesRef

◆ h1024

◆ h128

◆ h160

◆ h160Hash

◆ h160s

◆ h160Set

◆ h2048

◆ h256

◆ h256Hash

◆ h256s

◆ h256Set

◆ h512

◆ h512s

◆ h520

◆ h64

◆ HexMap

◆ Public

◆ Secret

◆ Secrets

◆ Signature

◆ string32

◆ StringHashMap

◆ StringMap

◆ strings

Enumeration Type Documentation

◆ WhenError

◆ WithExisting

Function Documentation

◆ asBytes()

◆ asNibbles()

◆ asString() [1/2]

◆ asString() [2/2]

◆ commonPrefix()

◆ contains()

◆ diff()

◆ fromBigEndian()

◆ fromHex()

◆ isHash()

◆ isHex()

◆ keysOf() [1/2]

◆ keysOf() [2/2]

◆ operator+() [1/4]

◆ operator+() [2/4]

◆ operator+() [3/4]

◆ operator+() [4/4]

◆ operator+=() [1/5]

◆ operator+=() [2/5]

◆ operator+=() [3/5]

◆ operator+=() [4/5]

◆ operator+=() [5/5]

◆ pushFront()

◆ ref() [1/4]

◆ ref() [2/4]

◆ ref() [3/4]

◆ ref() [4/4]

◆ right160()

◆ sha3() [1/6]

◆ sha3() [2/6]

◆ sha3() [3/6]

◆ sha3() [4/6]

◆ sha3() [5/6]

◆ sha3() [6/6]

◆ toAddress() [1/2]

◆ toAddress() [2/2]

◆ toCompactBigEndian()

◆ toHex() [1/2]
