jami::video::VideoDevice Class Reference

#include <video_device.h>

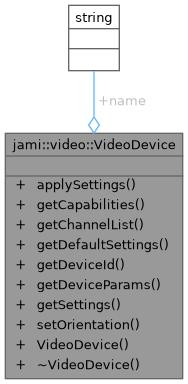

Collaboration diagram for jami::video::VideoDevice:

Public Member Functions
void	applySettings (VideoSettings settings)
libjami::VideoCapabilities	getCapabilities () const
std::vector< std::string >	getChannelList () const
VideoSettings	getDefaultSettings () const
const std::string &	getDeviceId () const
DeviceParams	getDeviceParams () const
	Returns the parameters needed for actual use of the device.
VideoSettings	getSettings () const
void	setOrientation (int orientation)
	VideoDevice (const std::string &path, const std::vector< std::map< std::string, std::string > > &devInfo)
	~VideoDevice ()

Public Attributes
std::string	name {}

Detailed Description

Definition at line 46 of file video_device.h.

Constructor & Destructor Documentation

VideoDevice()

jami::video::VideoDevice::VideoDevice	(	const std::string &	path,
		const std::vector< std::map< std::string, std::string > > &	devInfo
	)

Definition at line 189 of file androidvideo/video_device_impl.cpp.

References name.

~VideoDevice()

jami::video::VideoDevice::~VideoDevice

(

)

Definition at line 227 of file androidvideo/video_device_impl.cpp.

Member Function Documentation

applySettings()

void jami::video::VideoDevice::applySettings ( VideoSettings  settings )

inline

Definition at line 159 of file video_device.h.

References jami::emitSignal(), and jami::DeviceParams::name.

Here is the call graph for this function:

getCapabilities()

libjami::VideoCapabilities jami::video::VideoDevice::getCapabilities ( ) const

inline

Definition at line 76 of file video_device.h.

References jami::emitSignal(), and getChannelList().

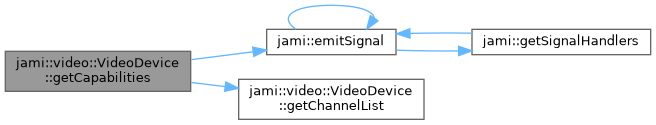

Here is the call graph for this function:

getChannelList()

std::vector< std::string > jami::video::VideoDevice::getChannelList

(

)

const

Definition at line 210 of file androidvideo/video_device_impl.cpp.

Referenced by getCapabilities(), and getDefaultSettings().

getDefaultSettings()

VideoSettings jami::video::VideoDevice::getDefaultSettings ( ) const

inline

Definition at line 98 of file video_device.h.

References jami::emitSignal(), getChannelList(), getSettings(), JAMI_WARN, and jami::to_string().

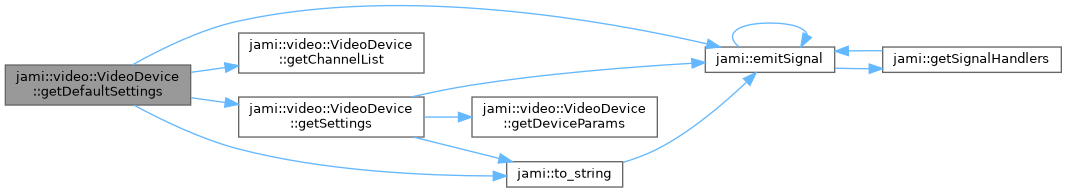

Here is the call graph for this function:

getDeviceId()

const std::string & jami::video::VideoDevice::getDeviceId ( ) const

inline

Definition at line 59 of file video_device.h.

getDeviceParams()

DeviceParams jami::video::VideoDevice::getDeviceParams

(

)

const

Returns the parameters needed for actual use of the device.

Definition at line 198 of file androidvideo/video_device_impl.cpp.

Referenced by getSettings().

getSettings()

VideoSettings jami::video::VideoDevice::getSettings ( ) const

inline

Definition at line 139 of file video_device.h.

References jami::emitSignal(), getDeviceParams(), jami::video::VideoSettings::name, name, and jami::to_string().

Referenced by getDefaultSettings().

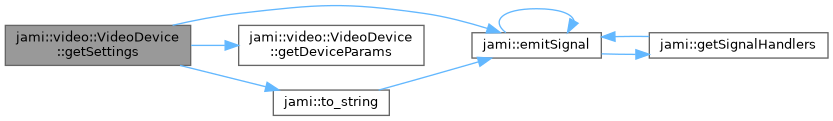

Here is the call graph for this function:

setOrientation()

void jami::video::VideoDevice::setOrientation ( int  orientation )

inline

Definition at line 173 of file video_device.h.

Member Data Documentation

name

std::string jami::video::VideoDevice::name {}

Definition at line 57 of file video_device.h.

Referenced by getSettings(), and VideoDevice().

---

The documentation for this class was generated from the following files:

• video_device.h
• androidvideo/video_device_impl.cpp
• iosvideo/video_device_impl.cpp
• v4l2/video_device_impl.cpp
• winvideo/video_device_impl.cpp
