Provides an abstraction layer to the hardware acceleration APIs in FFmpeg. More...

#include <accel.h>

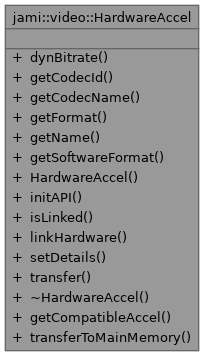

Collaboration diagram for jami::video::HardwareAccel:

Public Member Functions
bool	dynBitrate ()

AVCodecID	getCodecId () const
	Codec that is being accelerated.

std::string	getCodecName () const
	Gets the name of the codec.

AVPixelFormat	getFormat () const
	Hardware format.

const std::string &	getName () const
	Name of the hardware layer/API being used.

AVPixelFormat	getSoftwareFormat () const
	Software format.

	HardwareAccel (AVCodecID id, const std::string &name, AVHWDeviceType hwType, AVPixelFormat format, AVPixelFormat swFormat, CodecType type, bool dynBitrate)
	Constructs a HardwareAccel object.

int	initAPI (bool linkable, AVBufferRef *framesCtx)

bool	isLinked () const
	If hardware decoder can feed hardware encoder directly.

bool	linkHardware (AVBufferRef *framesCtx)
	Links this HardwareAccel's frames context with the passed in context.

void	setDetails (AVCodecContext *codecCtx)
	Set some extra details in the codec context.

std::unique_ptr< VideoFrame >	transfer (const VideoFrame &frame)
	Transfers a frame to/from the GPU memory.

	~HardwareAccel ()
	Dereferences hardware contexts.

Static Public Member Functions
static std::list< HardwareAccel >	getCompatibleAccel (AVCodecID id, int width, int height, CodecType type)

static std::unique_ptr< VideoFrame >	transferToMainMemory (const VideoFrame &frame, AVPixelFormat desiredFormat)
	Transfers hardware frame to main memory.

Detailed Description

Provides an abstraction layer to the hardware acceleration APIs in FFmpeg.

Definition at line 44 of file accel.h.

Constructor & Destructor Documentation

◆ HardwareAccel()

jami::video::HardwareAccel::HardwareAccel	(	AVCodecID	id,
		const std::string &	name,
		AVHWDeviceType	hwType,
		AVPixelFormat	format,
		AVPixelFormat	swFormat,
		CodecType	type,
		bool	dynBitrate
	)

Constructs a HardwareAccel object.

Made public so std::unique_ptr can access it. Should not be called.

Definition at line 118 of file accel.cpp.

◆ ~HardwareAccel()

jami::video::HardwareAccel::~HardwareAccel ( )

Dereferences hardware contexts.

Definition at line 134 of file accel.cpp.

References av_buffer_unref().

Here is the call graph for this function:

Member Function Documentation

◆ dynBitrate()

bool jami::video::HardwareAccel::dynBitrate ( )

inline

Definition at line 156 of file accel.h.

◆ getCodecId()

AVCodecID jami::video::HardwareAccel::getCodecId ( ) const

inline

Codec that is being accelerated.

Definition at line 83 of file accel.h.

◆ getCodecName()

std::string jami::video::HardwareAccel::getCodecName ( ) const

Gets the name of the codec.

Decoding: avcodec_get_name(id_) Encoding: avcodec_get_name(id_) + '_' + name_

Definition at line 246 of file accel.cpp.

References jami::CODEC_DECODER, jami::CODEC_ENCODER, and jami::emitSignal().

Referenced by initAPI(), and linkHardware().

Here is the call graph for this function:

◆ getCompatibleAccel()

std::list< HardwareAccel > jami::video::HardwareAccel::getCompatibleAccel	(	AVCodecID	id,
		int	width,
		int	height,
		CodecType	type
	)

static

Definition at line 424 of file accel.cpp.

References jami::video::apiListDec, jami::video::apiListEnc, jami::CODEC_ENCODER, and jami::emitSignal().

Referenced by jami::MediaEncoder::testH265Accel().

Here is the call graph for this function:

◆ getFormat()

AVPixelFormat jami::video::HardwareAccel::getFormat ( ) const

inline

Hardware format.

Definition at line 93 of file accel.h.

◆ getName()

const std::string & jami::video::HardwareAccel::getName ( ) const

inline

Name of the hardware layer/API being used.

Definition at line 88 of file accel.h.

Referenced by jami::video::getFormatCb().

◆ getSoftwareFormat()

AVPixelFormat jami::video::HardwareAccel::getSoftwareFormat ( ) const

inline

Software format.

For encoding it is the format expected by the hardware. For decoding it is the format output by the hardware.

Definition at line 101 of file accel.h.

◆ initAPI()

int jami::video::HardwareAccel::initAPI	(	bool	linkable,
		AVBufferRef *	framesCtx
	)

Definition at line 406 of file accel.cpp.

References jami::emitSignal(), getCodecName(), and linkHardware().

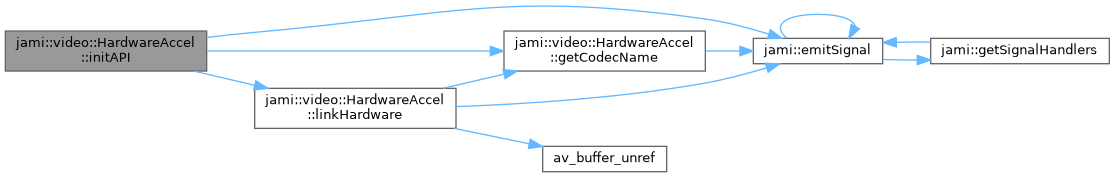

Here is the call graph for this function:

◆ isLinked()

bool jami::video::HardwareAccel::isLinked ( ) const

inline

If hardware decoder can feed hardware encoder directly.

Returns whether or not the decoder is linked to an encoder or vice-versa. Being linked means an encoder can directly use the decoder's hardware frame, without first transferring it to main memory.

Definition at line 118 of file accel.h.

◆ linkHardware()

bool jami::video::HardwareAccel::linkHardware ( AVBufferRef * framesCtx )

Links this HardwareAccel's frames context with the passed in context.

This serves to skip transferring a decoded frame back to main memory before encoding.

Definition at line 350 of file accel.cpp.

References av_buffer_unref(), jami::emitSignal(), getCodecName(), and JAMI_DBG.

Referenced by initAPI().

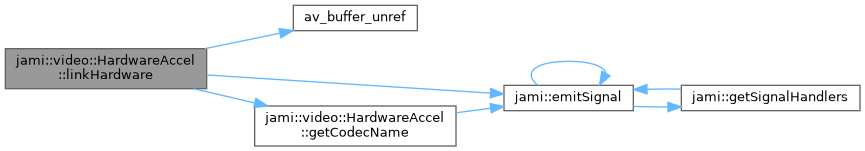

Here is the call graph for this function:

◆ setDetails()

void jami::video::HardwareAccel::setDetails ( AVCodecContext * codecCtx )

Set some extra details in the codec context.

Should be called after a successful setup (setupDecoder or setupEncoder). For decoding, sets the hw_device_ctx and get_format callback. If the decoder has a frames context, mark as linked. For encoding, sets hw_device_ctx and hw_frames_ctx, and may set some hardware codec options.

Definition at line 307 of file accel.cpp.

References jami::CODEC_DECODER, jami::CODEC_ENCODER, jami::emitSignal(), and jami::video::getFormatCb().

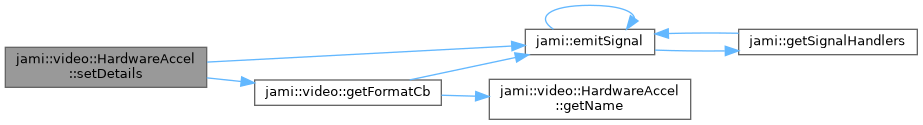

Here is the call graph for this function:

◆ transfer()

std::unique_ptr< VideoFrame > jami::video::HardwareAccel::transfer ( const VideoFrame & frame )

Transfers a frame to/from the GPU memory.

Transfers a hardware decoded frame back to main memory. Should be called after the frame is decoded using avcodec_send_packet/avcodec_receive_frame or before the frame is encoded using avcodec_send_frame/avcodec_receive_packet.

Parameters

frame Hardware frame when decoding, software frame when encoding.

Returns: Software frame when decoding, hardware frame when encoding.

Definition at line 257 of file accel.cpp.

References jami::CODEC_DECODER, jami::CODEC_ENCODER, jami::emitSignal(), jami::libav_utils::getError(), JAMI_ERR, and transferToMainMemory().

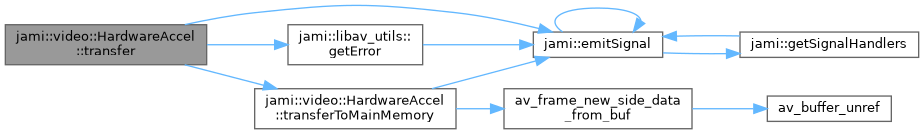

Here is the call graph for this function:

◆ transferToMainMemory()

std::unique_ptr< VideoFrame > jami::video::HardwareAccel::transferToMainMemory	(	const VideoFrame &	frame,
		AVPixelFormat	desiredFormat
	)

static

Transfers hardware frame to main memory.

Transfers a hardware decoded frame back to main memory. Should be called after the frame is decoded using avcodec_send_packet/avcodec_receive_frame.

If @frame is software, this is a no-op.

Parameters

frame	Refrerence to the decoded hardware frame.
desiredFormat	Software pixel format that the hardware outputs.

Returns: Software frame.

Definition at line 372 of file accel.cpp.

References av_frame_new_side_data_from_buf(), and jami::emitSignal().

Referenced by transfer(), jami::MediaRecorder::StreamObserver::update(), and jami::video::VideoMixer::update().

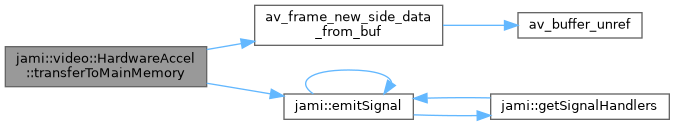

Here is the call graph for this function:

The documentation for this class was generated from the following files:
