jami::Tone Class Reference

#include <tone.h>

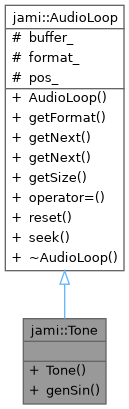

Inheritance diagram for jami::Tone:

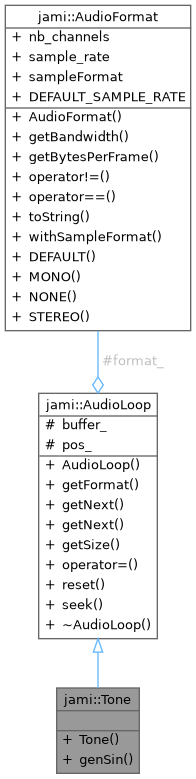

Collaboration diagram for jami::Tone:

Public Types
enum class	ToneId {   DIALTONE = 0 , BUSY , RINGTONE , CONGESTION ,   TONE_NULL }
	The different kind of tones. More...

Public Member Functions
	Tone (std::string_view definition, unsigned int sampleRate, AVSampleFormat sampleFormat)
	Constructor.
Public Member Functions inherited from jami::AudioLoop
	AudioLoop (AudioFormat format)
AudioFormat	getFormat () const
void	getNext (AVFrame *output, bool mute)
	Get the next fragment of the tone the function change the intern position, and will loop.
std::unique_ptr< AudioFrame >	getNext (size_t samples=0, bool mute=false)
size_t	getSize () const
	Accessor to the size of the buffer.
AudioLoop &	operator= (AudioLoop &&o) noexcept
void	reset ()
	Reset the pointer position.
void	seek (double relative_position)
virtual	~AudioLoop ()

Static Public Member Functions
static void	genSin (AVFrame *buffer, size_t outPos, unsigned nb_samples, unsigned frequency1, unsigned frequency2)
	Add a simple or double sin to the buffer, it double the sin in stereo.

Additional Inherited Members
Protected Attributes inherited from jami::AudioLoop
libjami::FrameBuffer	buffer_ {}
	The data buffer.
AudioFormat	format_
size_t	pos_ {0}
	current position, set to 0, when initialize

Detailed Description

Definition at line 32 of file tone.h.

Member Enumeration Documentation

ToneId

enum class jami::Tone::ToneId

strong

The different kind of tones.

Enumerator
DIALTONE
BUSY
RINGTONE
CONGESTION
TONE_NULL

Definition at line 43 of file tone.h.

Constructor & Destructor Documentation

Tone()

jami::Tone::Tone	(	std::string_view	definition,
		unsigned int	sampleRate,
		AVSampleFormat	sampleFormat
	)

Constructor.

Parameters

definition	String that contain frequency/time of the tone
sampleRate	SampleRating of audio tone

Definition at line 32 of file tone.cpp.

References jami::emitSignal().

Here is the call graph for this function:

Member Function Documentation

genSin()

void jami::Tone::genSin ( AVFrame *  buffer, size_t  outPos, unsigned  nb_samples, unsigned  frequency1, unsigned  frequency2  )

static

Add a simple or double sin to the buffer, it double the sin in stereo.

Parameters

buffer	The data
frequency1	The first frequency
frequency2	The second frequency
nb	the number of samples to generate

Definition at line 111 of file tone.cpp.

References jami::emitSignal(), and JAMI_ERROR.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• tone.h
• tone.cpp
