jami::ChannelHandlerInterface Class Reference

A Channel handler is used to make the link between JamiAccount and ConnectionManager Its role is to manage channels for a protocol (git/sip/etc) More...

#include <channel_handler.h>

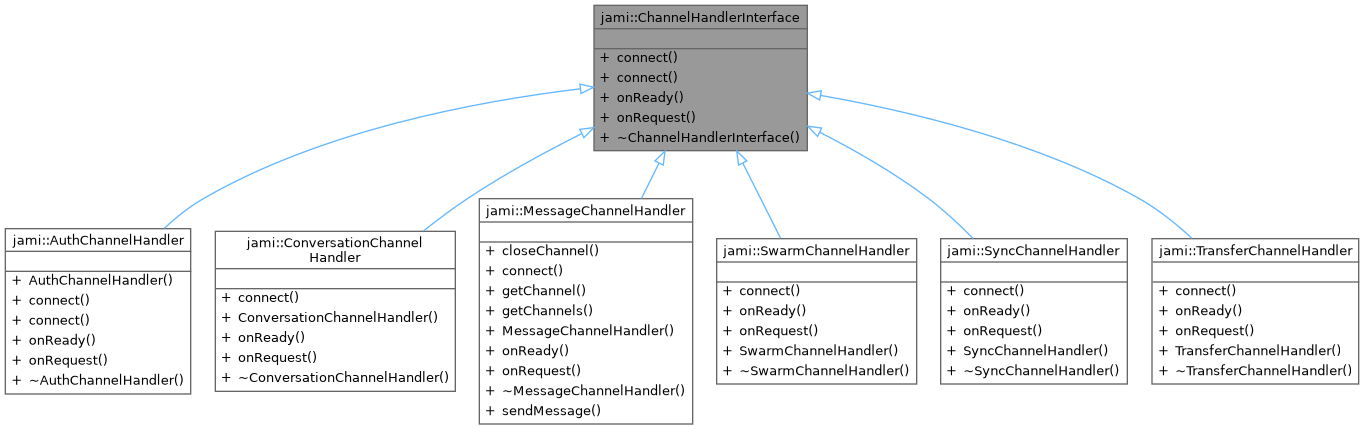

Inheritance diagram for jami::ChannelHandlerInterface:

Collaboration diagram for jami::ChannelHandlerInterface:

Public Member Functions
virtual void	connect (const DeviceId &deviceId, const std::string &name, ConnectCb &&cb, const std::string &connectionType="", bool forceNewConnection=false)=0
	Ask for a new channel.
virtual void	connect (const dht::InfoHash &, const std::string &, ConnectCallbackLegacy &&)
virtual void	onReady (const std::shared_ptr< dht::crypto::Certificate > &peer, const std::string &name, std::shared_ptr< dhtnet::ChannelSocket > channel)=0
	Called when ConnectionManager has a new channel ready.
virtual bool	onRequest (const std::shared_ptr< dht::crypto::Certificate > &peer, const std::string &name)=0
	Determine if we accept or not the request.
virtual	~ChannelHandlerInterface ()

Detailed Description

A Channel handler is used to make the link between JamiAccount and ConnectionManager Its role is to manage channels for a protocol (git/sip/etc)

Definition at line 35 of file channel_handler.h.

Constructor & Destructor Documentation

~ChannelHandlerInterface()

virtual jami::ChannelHandlerInterface::~ChannelHandlerInterface ( )

inlinevirtual

Definition at line 38 of file channel_handler.h.

Member Function Documentation

connect() [1/2]

virtual void jami::ChannelHandlerInterface::connect ( const DeviceId &  deviceId, const std::string &  name, ConnectCb &&  cb, const std::string &  connectionType = "", bool  forceNewConnection = false  )

pure virtual

Ask for a new channel.

Parameters

deviceId	The device to connect
name	The name of the channel
cb	The callback to call when connected (can be immediate if already connected)
connectionType	The connection type used by iOS notifications (not used)
forceNewConnection	If we want a new SIP connection (not used)

Implemented in jami::MessageChannelHandler, jami::SyncChannelHandler, jami::TransferChannelHandler, jami::AuthChannelHandler, and jami::ConversationChannelHandler.

connect() [2/2]

virtual void jami::ChannelHandlerInterface::connect ( const dht::InfoHash &  , const std::string &  , ConnectCallbackLegacy &&    )

inlinevirtual

Reimplemented in jami::AuthChannelHandler.

Definition at line 55 of file channel_handler.h.

onReady()

virtual void jami::ChannelHandlerInterface::onReady ( const std::shared_ptr< dht::crypto::Certificate > &  peer, const std::string &  name, std::shared_ptr< dhtnet::ChannelSocket >  channel  )

pure virtual

Called when ConnectionManager has a new channel ready.

Parameters

peer	Connected peer
name	The name of the channel
channel	Channel to handle

Implemented in jami::AuthChannelHandler, jami::ConversationChannelHandler, jami::MessageChannelHandler, jami::SwarmChannelHandler, jami::SyncChannelHandler, and jami::TransferChannelHandler.

onRequest()

virtual bool jami::ChannelHandlerInterface::onRequest ( const std::shared_ptr< dht::crypto::Certificate > &  peer, const std::string &  name  )

pure virtual

Determine if we accept or not the request.

Called when ConnectionManager receives a request

Parameters

peer	Peer who asked
name	The name of the channel

Returns

if we accept or not

Implemented in jami::AuthChannelHandler, jami::ConversationChannelHandler, jami::MessageChannelHandler, jami::SwarmChannelHandler, jami::SyncChannelHandler, and jami::TransferChannelHandler.

---

The documentation for this class was generated from the following file:

• channel_handler.h
